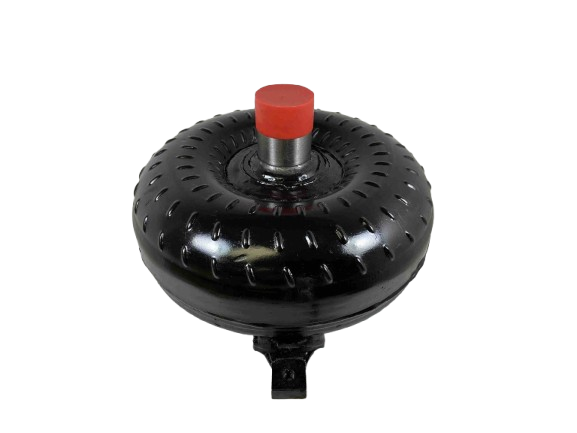

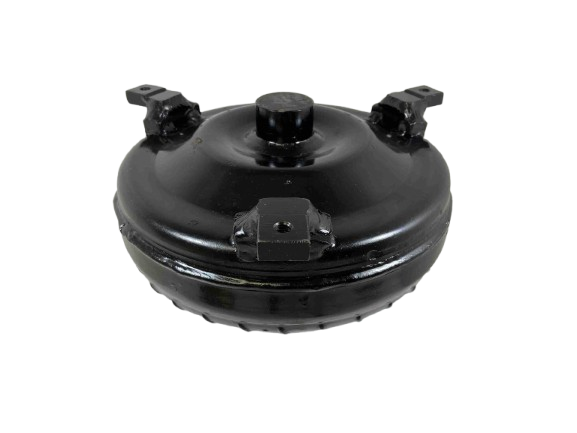

TH400 TH350 Out Law 35-4,200 RPM GM Racing Torque Converter Part Number 46714

OUTLAW Racing Series Torque Converter | GM Chevy TH400/TH350 PowerGlide - Part No. 46714

Unleash maximum performance with this Super Lightweight Torque Converter, engineered for high-output applications including Choppy Cams and lightweight builds. Precision manufactured to handle extreme duty, this converter is the perfect match for your high-performance racing setup, whether you are running Nitrous Oxide, Turbocharger, or Supercharger.

This converter provides unmatched durability and performance thanks to its custom-machined components, ensuring a smooth shift through your dialed applications. Built with quality inspections at every stage and digitally balanced for peak reliability, it is ready to perform under the harshest conditions.

Technical Specifications

• Transmission Type: TH400 / TH350 PowerGlide
• Part Number: 46714
• Series: Out Law Racing Series / Extreme Duty
• Stall Range: 3,500 - 4,200 RPM
• Core Size: 9.6 inch Core
• Turbine Hub Splines: 30 Spline
• Bolt Circle Diameter: 11.50 inches
• Crank Pilot Size: 1.703 inch Precision CNC Machined
• Bolt Specification: 3/8 X 16 TPI (Grade 8 Hardware Recommended)

Construction Highlights

• Precision CNC Machined Impeller Hub with Hardened Chrome Moley finish
• Torrington Style Incased Bearings for superior longevity
• Modified Extreme Duty Stator and Anti-Balloon Plates installed
• Whole Back Cover Quenched and Hardened for maximum structural integrity
• Pump & Turbine Fins are welded or furnace-brazed, ensuring leak-proof performance
• Leak and Pressure Tested before shipment

Application Guidance

• Recommended for Choppy Camshafts and Lightweight Vehicles
• Ideal pairing with Nitrous Oxide, Turbochargers, or Superchargers

Tips

• Use Type F transmission fluid for best operational results.
• Always use an additional Transmission Cooler when pairing with this unit.
• Secure all hardware using Blue Loctite for maximum vibration resistance.

Notes

• All advertised stall ranges are based on a specific vehicle's setup and actual performance will vary depending on your application.
• For customized setups or more detailed information regarding fitment, please contact us at (888) 267-7464.
