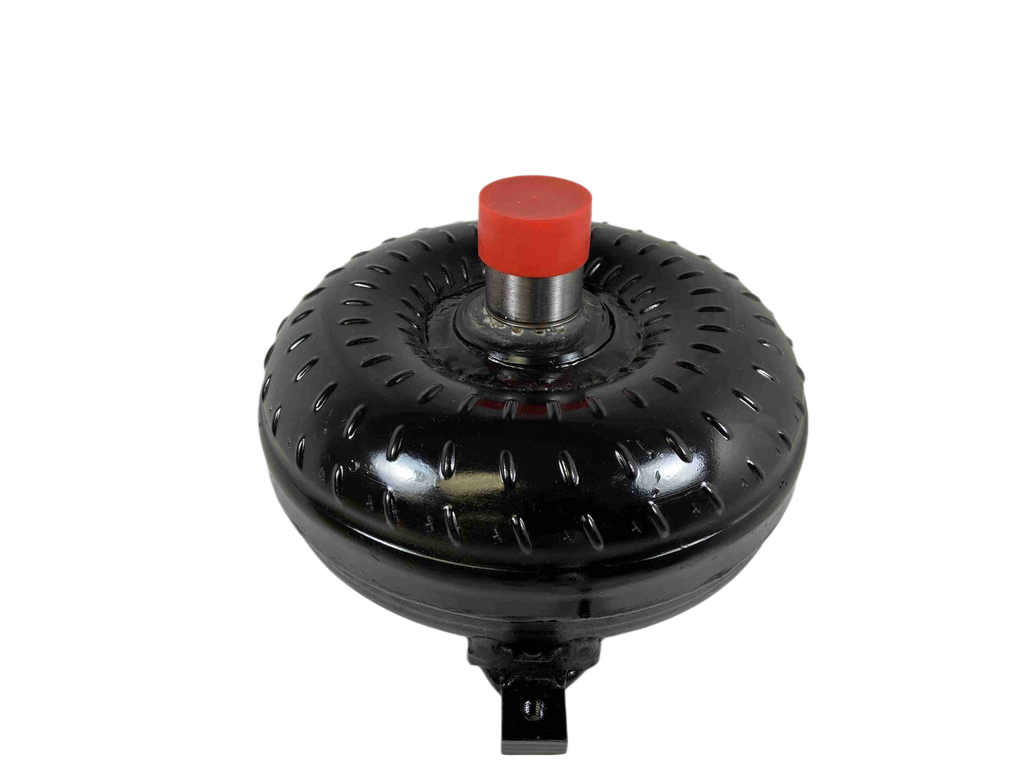

PowerGlide Mid Plate Pilot Out Law 42-5,000 RPM GM Racing Torque Converter Part Number 34725

GM Chevy PowerGlide 17 Spline Torque Converter - Part Number 34725

Experience flawless performance and unmatched reliability with our Super Lightweight Torque Converter, specifically designed for high-performance driving applications. Manufactured in the USA and built with veteran ownership since 1970, this converter is engineered to provide excellent driving characteristics and handle the rigorous demands of choppy cams, nitrous, turbo setups, and trans-breaks.

Technical Specifications

• Transmission Type: GM Chevy PowerGlide
• Series/Application: Outlaw Racing Series / High Performance & Choppy Cams
• Part Number: 34725
• Stall Range: 4,200 - 5,000 RPM
• Turbine Hub: 17 Spline Turbine Hub
• Impeller: Precision CNC Machined Hardened Chrome Moley Impeller Hub
• Stator: Modified Extreme Duty Stator
• Pilot Diameter/Style: 1.703 inch Extended 1/4 inch Crank Pilot
• Bolt Circle Diameter: 10.75 inches
• Pilot Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Required)
• Bearings: Torrington Style Incased Bearings

Premium Build Quality

This converter undergoes meticulous construction and quality control to ensure peak performance when you need it most.

• Precision CNC Machined pump and turbine components.

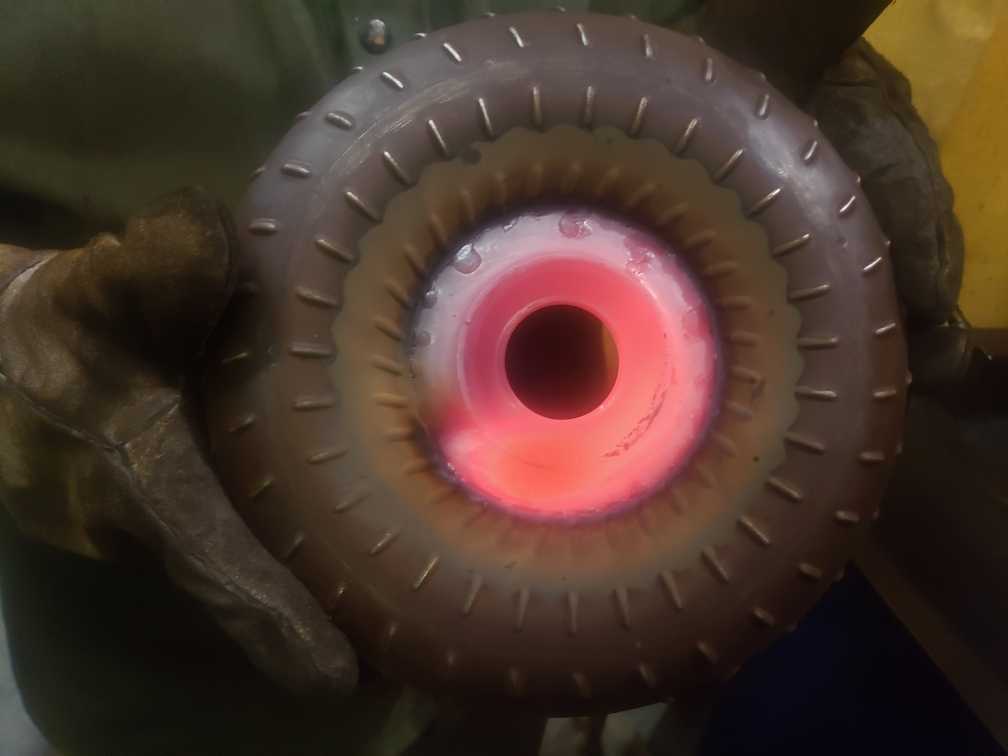

• Whole back cover quenched and hardened for maximum durability.

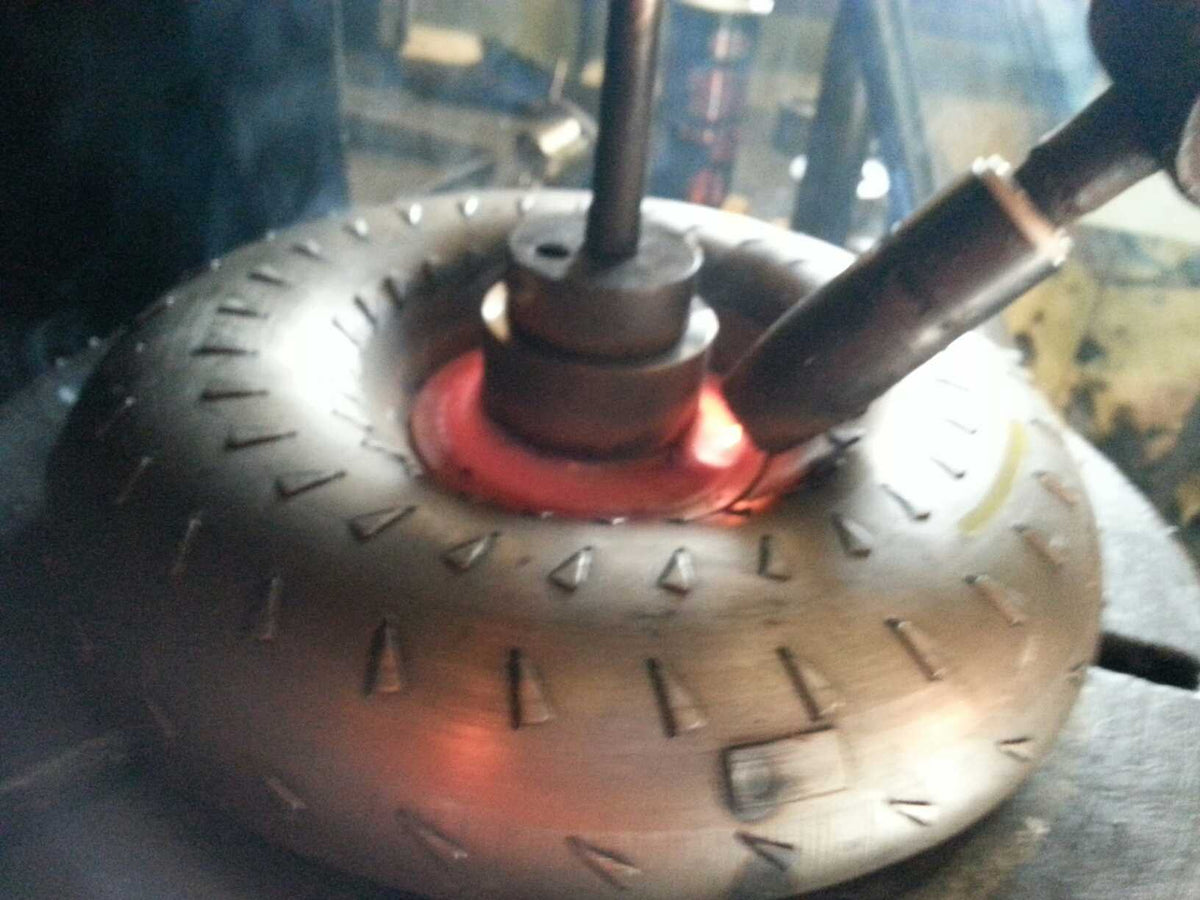

• All pump and turbine fins are expertly welded or furnace-brazed.

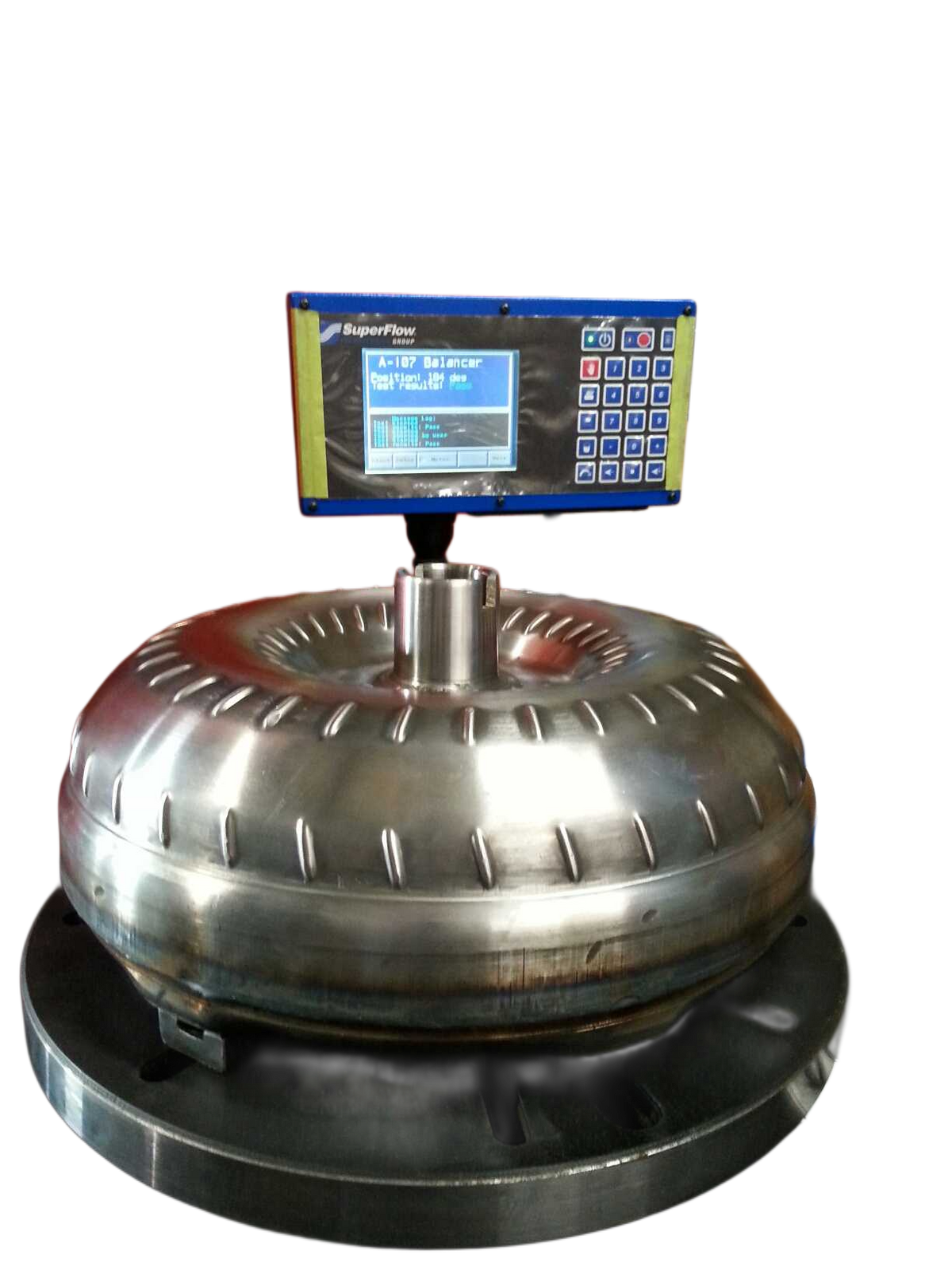

• Digitally balanced for smooth, high-speed operation.
• Leak and pressure tested prior to shipment.

Installation & Performance Guidance

• Use Type F transmission fluid for optimal operational results.
• Always include a transmission cooler when installing this converter.
• Apply Blue Loctite for secure hardware installation.

Important Considerations

• All advertised stall ranges are dependent on the specific vehicle's setup and may vary.
• For customized or no-prep racing converter options, please contact us directly at (888) 267-7464.

Building high performance and racing converters since 1970. Veteran owned and family run. Made in the USA.
