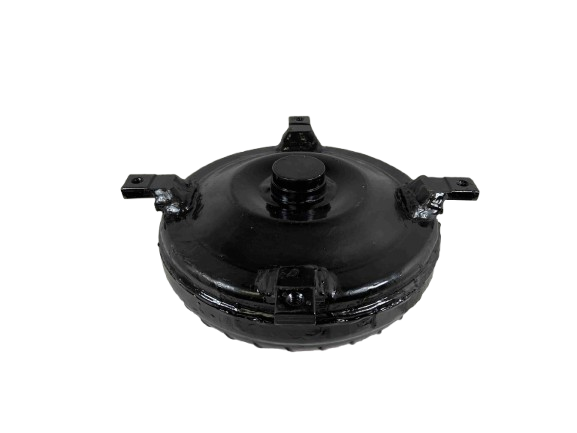

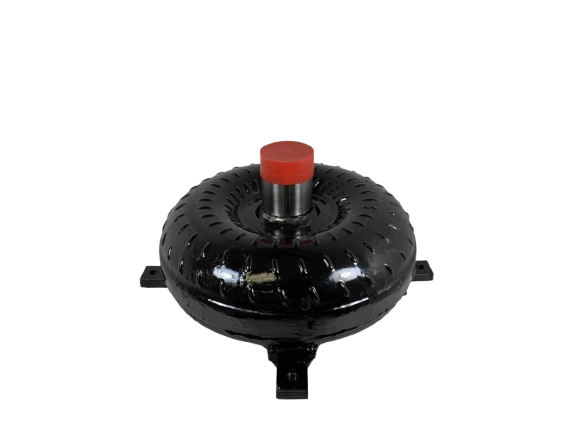

FMX FE 1.848 Pilot Street Bandit Series 42-5,000 RPM Ford Torque Converter Part Number 21297

Ford FMX FE Motors BIG Pilot Torque Converter - Street Bandit Series

Elevate your transmission system with this high-performance, Super Lightweight Torque Converter. Designed for demanding applications including chopped cams and lightweight builds, this converter delivers exceptional driving characteristics matched with robust engineering. Manufactured in the USA, this unit is built to handle aggressive power while maintaining durability and reliability.

Product Details & Specifications

• Transmission Type: Ford FMX FE Motors
• Series: Street Bandit Series
• Part Number: 21297
• Stall Range: 4,200 - 5,000 RPM
• Pilot Diameter: 1.848 inch Crank Pilot
• Impeller Hub: Hardened Chrome Moley, Precision CNC Machined
• Turbine Assembly: 29 Spline Turbine Hub, Precision CNC Machined
• Core Diameter: 9.6 inch
• Bolt Circle Diameter (BCD): 11 7/16 inches
• Shaft Detail: 29 Spline Turbine Hub, Built to 5 7/8 inch Tall
• Stator Build: Modified Extreme Duty Stator with Anti-Balloon Plates (NO)
• Bearing Type: Torrington Style Incased Bearings

Key Manufacturing Quality

• Digitally Balanced for smooth operation.
• Leak & Pressure Tested prior to shipment.
• Quality Inspections performed at every manufacturing stage.
• Fins are securely Tac Welded or Furnace-Brazed for maximum integrity.

Application Notes

• ALL Advertised Stall Ranges are dependent on a specific vehicle setup; ranges will vary based on your application.
• The use of Type F transmission fluid is recommended for optimal performance.
• Blue Loctite sealant application is advised during installation to ensure maximum reliability.

For assistance regarding your specific vehicle setup or stall range verification, please contact us directly at (888) 267-7464. We have been building high-performance and racing converters since 1970—Veteran Owned and Family Run.
