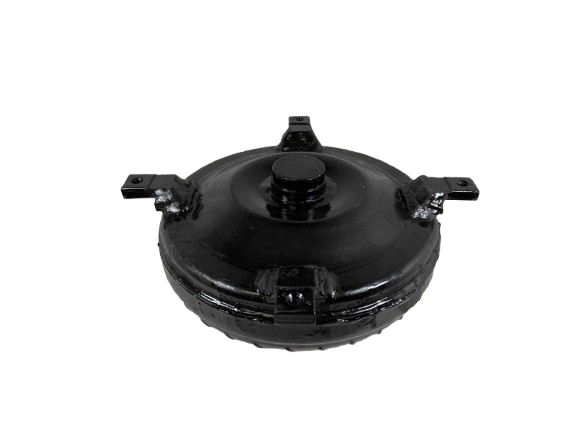

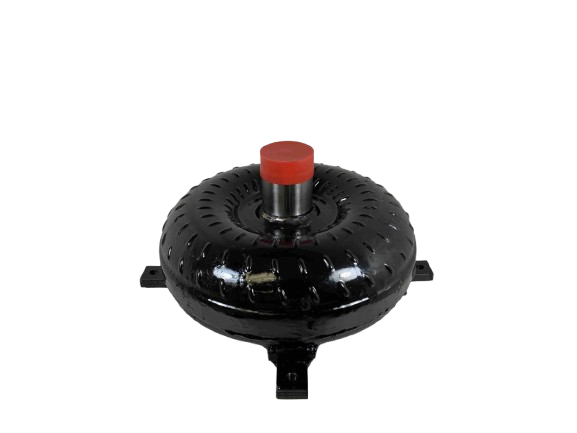

FMX FE 1.848 Pilot Street Bandit Series 32-3,500 RPM Ford Torque Converter Part Number 21295

STREET BANDIT SERIES Torque Converter | Ford FMX FE Motors - BIG Pilot (Part #21295)

Achieve superior performance and match quality with our Super Lightweight Torque Converter, engineered specifically for high-performance Ford FMX FE Motors. The Street Bandit Series is precision-built to handle chopped cams and lightweight setups, delivering exceptional driving characteristics while maintaining durability under extreme conditions. This converter is the perfect match for riders seeking a reliable, race-ready upgrade.

Product Specifications

• Part Number: 21295
• Series Application: STREET BANDIT SERIES (Ford FMX FE Motors)
• Stall Range: 3,200 - 3,500 RPM
• Crank Pilot Diameter: 1.848 inch (Precision CNC Machined)
• Core Size: 9.6 inches
• Bolt Circle: 11 7/16 inches
• Impeller Hub: Hardened Chrome Moley (Pins are 4 corner Tac Welded or Furnace-Brazed)
• Turbine Hub: 29 Spline (Precision CNC Machined)
• Stator: Modified Extreme Duty Stator
• Bearings: Torrington Style Incased Bearings
• Plates: NO Anti-Balloon Plates
• Build Height: Built to 5 7/8 inch Tall
• Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY)
• Quality Assurance: Leak & Pressure Tested, Digitally Balanced, Quality Inspections at Every Step

Installation Guide

• Count the tops of each tooth on the smaller shaft for proper setup.

Performance Tips

• Use Type F transmission Fluid for optimal performance.
• Pair with a Transmission Cooler for enhanced durability in high-heat environments.
• Apply Blue Loctite to ensure all components remain securely fastened.

Important Notes

• All advertised stall ranges are based on a specific vehicle setup and actual performance may vary depending on your vehicle’s configuration.
• For personalized advice or further information regarding installation and setup, please contact us at (888) 267-7464.
