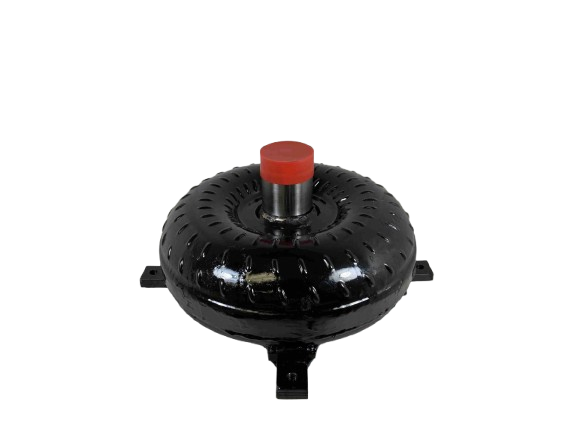

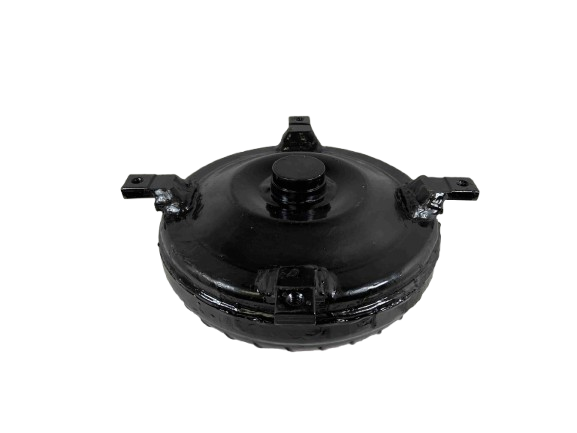

FMX FE 1.848 Pilot Street Bandit Series 28-3,200 RPM Ford Torque Converter Part Number 21294

Ford FMX FE Motors BIG Pilot Torque Converter - Street Bandit Series (Part #21294)

Engineered for serious performance and demanding applications, this Super Lightweight Torque Converter from the Street Bandit Series is built to provide crisp shifts and reliable power transfer. Designed for choppier cams and lightweight vehicles, this unit offers the perfect balance of performance and durability when paired with a Ford FMX FE Motors application.

Product Specifications

• Torque Converter Series: Street Bandit
• Part Number: 21294
• Application Compatibility: Ford FMX FE Motors
• Crank Pilot Diameter: 1.848 inch (BIG Pilot)
• Stall Range Recommendation: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch Core
• Bolt Circle Diameter: 11 7/16 inches

Key Technical Features

• Impeller Hub: Hardened Chrome Moley design
• Turbine Hub: Precision 29 Spline Turbine Hub
• Bearings: Torrington Style Incased Bearings for smooth operation
• Stator: Modified Extreme Duty Stator construction
• Construction Quality: Precision CNC Machined components throughout, including the crank pilot.
• Assembly Detail: Fins are 4 corner Tac Welded or Furnace-Brazed.
• Quality Assurance: Leak & Pressure Tested, Digitally Balanced, and undergoes Quality Inspections at Every Step.

Installation & Care

• For optimal performance, utilize Type F transmission fluid.
• Apply Blue Loctite to ensure proper assembly and retention.

Important Notes

• Advertised stall ranges are based on specific vehicle setups and will vary depending on your application.
• For detailed setup advice or match to your vehicle, please contact us at (888) 267-7464.
• Warning: Product sold complies with P65 warning requirements (www.P65warning.ca.gov).

Building High Performance & Racing Converters Since 1970. Veteran Owned and Family Run since our inception.
