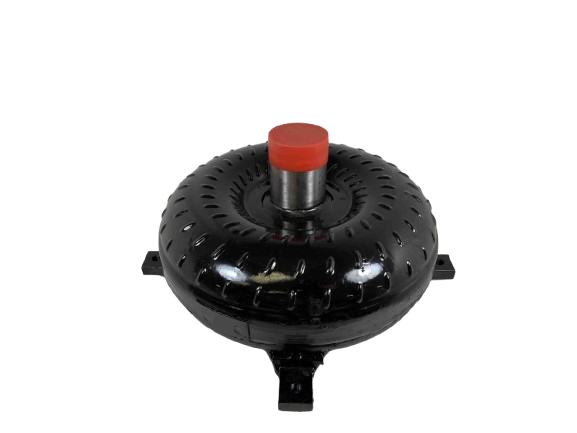

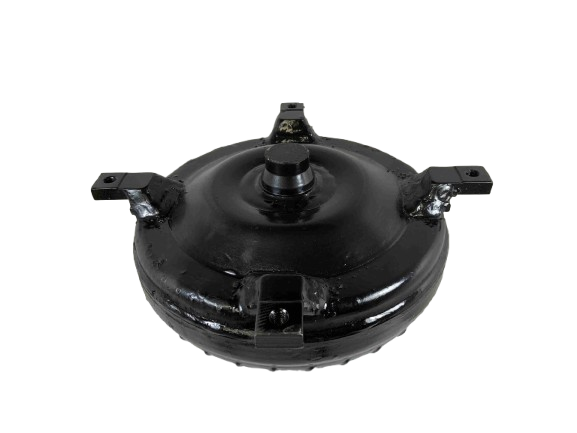

C6 Street Bandit Series 35-4,200 RPM Ford Torque Converter Part Number 26064

Ford C6 Street Bandit Series Super Lightweight Torque Converter

Engineered for drivers seeking exceptional performance and drivability, this Super Lightweight Torque Converter from Windsor Motors is specifically designed to handle the demands of modern high-performance applications. The Street Bandit Series offers a perfect balance of durability and operation, making it ideal for choppy cams and lightweight vehicles looking to maximize their powertrain potential. Built with precision CNC machined components, this converter provides guaranteed quality and robust performance.

Key Product Features & Specifications

• Series: Street Bandit Series
• Application: Ford C6 (WINDSOR MOTORS SMALL PILOT)
• Stall Range: 3,500 - 4,200 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub: 31 Spline, Precision CNC Machined
• Impeller Hub: Hardened Chrome Moley, Leak & Pressure Tested, Digitally Balanced
• Stator: Modified Extreme Duty Stator
• Crank Pilot Diameter: 1.375 inch, Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Bolts Recommended)
• Additional Features: Anti-Balloon Plates Included, Fins are 4 corner Tac Welded or Furnace-Brazed

Technical Details

• Impeller Tooth Count: Count tops of each tooth on the smaller shaft.
• Total Height: Built to 5 7/8 inch tall.
• Flywheel Compatibility: Designed for use with the 164 Tooth Flywheel.
• Bearings: Torrington Style Incased Bearings for superior longevity.

Owner Guidance

• Use Old School Type F Transmission Fluid for optimal performance.
• Always install a Transmission Cooler to manage operating temperatures effectively.
• Apply Blue Loctite for secure assembly and lasting performance.

Important Installation Notes

• All advertised stall speeds are based on a specific vehicle setup and will vary depending on your application.
• Contact us for consultation to ensure proper compatibility with your vehicle's requirements.
