C6 Street Bandit Series 22-2,800 RPM Ford Torque Converter Part Number 26052

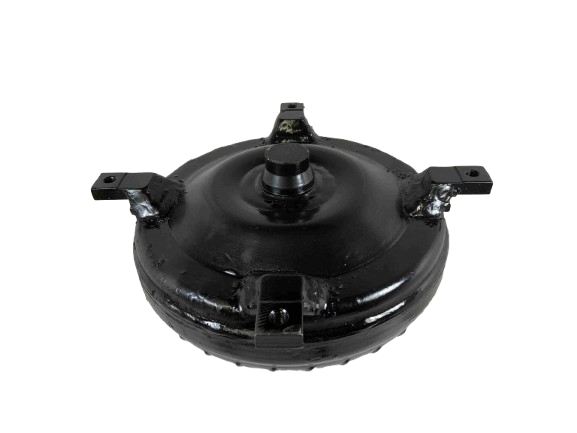

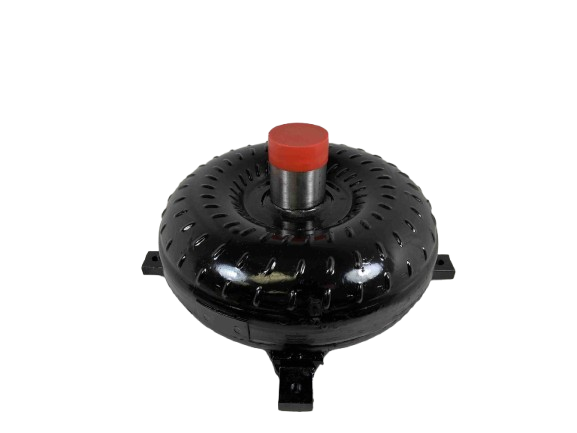

Ford C6 Small Pilot Street Bandit Series Torque Converter - Part #26052

Achieve optimal drivetrain performance with our SUPER Lightweight Street Bandit Series Torque Converter, designed specifically for the Ford C6 application. Built to handle demanding driving conditions—including choppy cams and lightweight vehicles—this high-quality, precision-machined converter ensures reliable power transfer while maintaining excellent driving characteristics. Restoring or upgrading your transmission system just got simpler with this expertly crafted unit.

This torque converter is manufactured using high-grade materials and subjected to rigorous quality inspections at every step, guaranteeing durability for demanding racing and street use alike.

Technical Specifications & Features

• Series: Street Bandit Series
• Part Number: 26052
• Stall Range: 2,200 - 2,800 RPM
• Core Diameter: 9.6 inches
• Bolt Circle: 11 7/16 inches
• Turbine Hub: 31 Spline, Precision CNC Machined
• Impeller Hub: Hardened Chrome Moley, Digitally Balanced
• Stator: Modified Extreme Duty Stator
• Crank Pilot: 1.375 inches, Precision CNC Machined
• Bearing System: Torrington Style Incased Bearings
• Flywheel Compatibility: Designed for 164 Tooth Flywheels
• Bolt Specification: 3/8 X 16 TPI (Grade 8 hardware required)
• Design Details: Anti-Balloon Plates NOT included; Fins are 4 corner Tac Welded or Furnace-Brazed.

Application & Installation Guide

• Recommended for Choppy Cams and Lightweight vehicles.

Setup Considerations

• Use Old School Type F Transmission Fluid for best operational results.
• Always use an additional Transmission Cooler when installing this unit.
• Blue Loctite is recommended for assembly.

Important Notes

• All advertised stall ranges are based on a specific vehicle setup; actual stall range will vary depending entirely on your vehicle's configuration.
• Contact us directly at (888) 267-7464 for detailed setup information or to discuss our "No Prep Racing Converters."

Building high performance and racing converters since 1970. Veteran-owned and family-run, we are dedicated to your transmission success.
