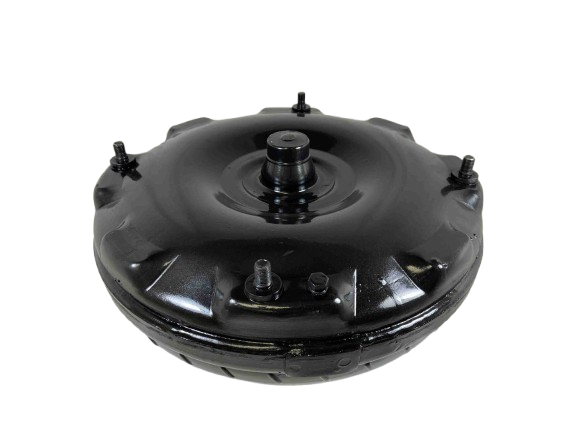

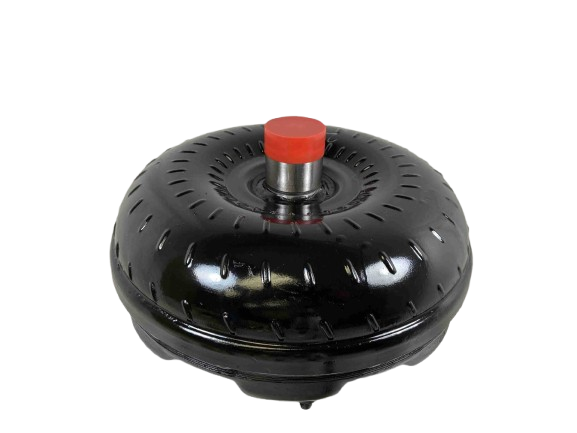

C6 FE Night Stalker Series 16-2,200 RPM Ford Torque Converter Part Number 26011
$348.58
Skip to product information
SKU:
In stock
26011
C6 FE Night Stalker Series 16-2,200 RPM Ford Torque Converter Part Number 26011
$348.58
Ford C6 FE Motors BIG Pilot - NIGHT STALKER Series Torque Converter (Part #26011)
Engineered for demanding applications, this Night Stalker Series torque converter is manufactured to handle the rigorous demands of your Ford C6 FE setup. Featuring a precision-machined 1.848-inch crank pilot and a specialized design, this unit offers reliable power transfer and exceptional durability, ensuring optimal performance under load.
Key Specifications
- Transmission Type: Ford C6 FE Motors
- Series: Night Stalker Series
- Part Number: 26011 (Big Pilot)
- Stall Range: 1,600 - 2,200 RPM (Over Stock)
- Core Diameter: 12 inch
- Bolt Circle Diameter: 11 7/16 inches
- Crank Pilot Size: 1.848 inch (Precision CNC Machined)
- Turbine Hub Splines: 31 Spline
- Build Height: 5 7/8 inch Tall (For Big Bellhousing)
Construction & Quality Assurance
- Impeller Hub: Hardened Chrome Moley, Precision CNC Machined
- Bearings: Torrington Style Incased Bearings
- Stator: Modified Extreme Duty, No Anti-Balloon Plates
- Fin Construction: 4 corner Tac Welded or Furnace-Brazed
- Quality Control: Leak & Pressure Tested, Digitally Balanced, Quality Inspections at Every Step
Installation & Care
- Use Old School Type F transmission fluid for best performance.
- Always incorporate a Transmission Cooler to manage operating temperatures.
- Apply Blue Loctite for secure assembly.
Important Considerations
- Advertised stall ranges are dependent on your specific vehicle setup and may vary. Please contact us for customized advice.
- Consider upgrading to the "Street Bandit Series" if you have recently upgraded intake, heads, headers, exhaust, cam, or gearing.
- Consider upgrading to the "Out Law Racing Series" if you utilize power adders such as Nitrous Oxide (NOS), Turbocharger, Supercharger, or a Transmission Brake.
- Veteran Owned and Family Run since 1970, building high-performance and racing converters.
For expert consultation regarding your specific build or to discuss our range of No Prep Racing Converters, please call us at (888) 267-7464.
| Actual Stall | Stall Range Will vary or change depending on Engine/Weight/& Run Out of the Gear. |
| Anti-Ballooning Plates | NO |
| Balanced | Yes |
| Bell Housing | All |
| Bolt Circle | 11.4375 |
| Bolt Size | 3/8 X24 TPI GRADE 8 ONLY |
| Crank Pilot | 1.848 |
| Diameter Core | 12 inch |
| Lock Up | NO |
| Series | Night Stalker |
| Spline | 31 |
| Stall Range | 1600-2,200 RPM |
| Torrington Bearings | Yes |
| Weled Fins | 4 cornered |
