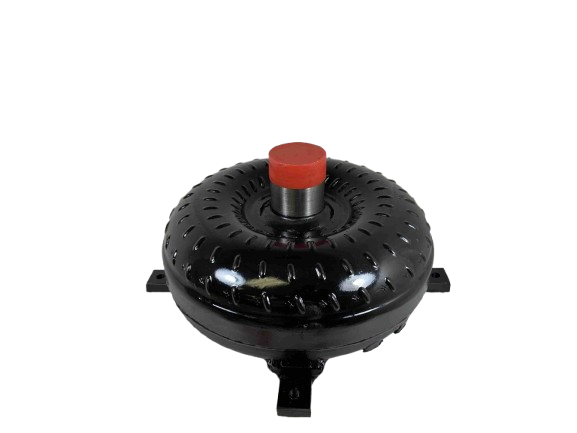

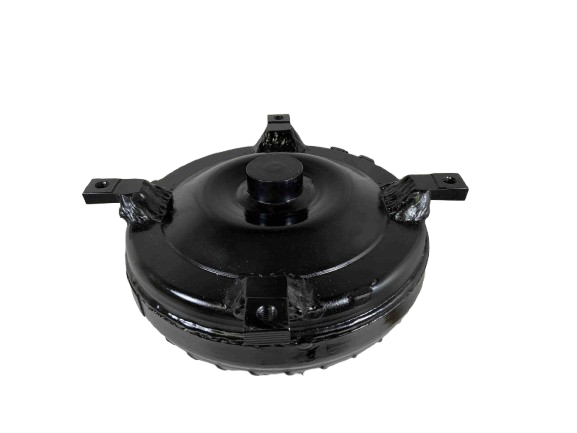

C6 FE 1.848 Pilot Street Bandit Series 28-3,200 RPM Ford Torque Converter Part Number 26013

Ford C6 FE Motors BIG Pilot Street Bandit Series Torque Converter

Designed for exceptional driving characteristics and tough applications, this Super Lightweight Torque Converter is the perfect match for choppy cams and lightweight performance vehicles. Built to withstand demanding conditions while offering precise shifts, this conversion provides reliable power delivery when you need it most.

Product Specifications

• Application: Ford C6 FE Motors
• Series: Street Bandit Series
• Pilot Diameter: 1.848 inch Crank Pilot
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch

Key Construction Details

• Impeller: Hardened Chrome Moley Impeller Hub
• Bearings: Torrington Style Incased Bearings
• Stator: Modified Extreme Duty Stator
• Assembly: Precision CNC Machined to 5 7/8 inch Tall
• Turbine Hub: 31 Spline Turbine Hub
• Flywheel Compatibility: Designed for 164 Tooth Flywheel use
• Bolt Circle Diameter: 11 7/16 inches
• Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY)
• Features: Anti-Balloon Plates, Tac Welded/Furnace-Brazed Fins, Leak & Pressure Tested, Digitally Balanced, Quality Inspections at Every Step.

Installation Notes

• All advertised stall ranges are based on a specific vehicle's setup and may vary depending on your application. Contact us for detailed information.

Performance Tips

• Use Old School Type F Transmission Fluid for optimal performance.
• Always install an additional transmission cooler to manage heat effectively.
• Secure fitting with Blue Loctite upon installation.

Proudly MADE IN THE USA, we have been building high-performance and racing torque converters since 1970. Contact us today to discuss your needs or inquire about our No Prep Racing Converters.
