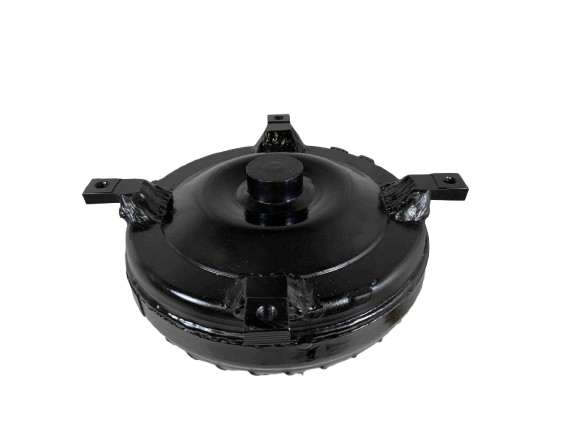

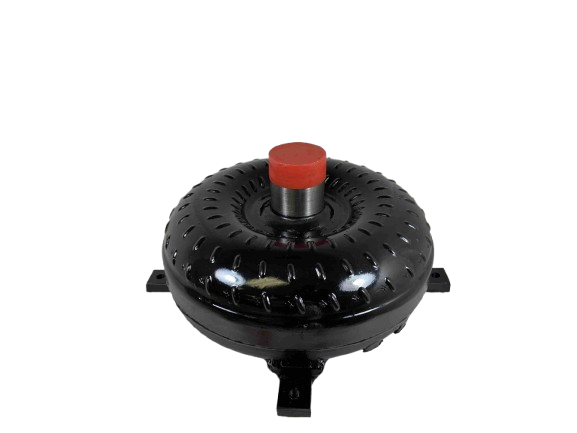

C6 FE 1.848 Pilot Street Bandit Series 22-2,800 RPM Ford Torque Converter Part Number 26032

Ford C6 FE Motors BIG Pilot Torque Converter - 1.848" | Part #26032

Power your build with the Street Bandit Series Torque Converter, specifically designed for Ford C6 FE Motors. This high-performance converter features a Super Lightweight design and rugged construction, ensuring excellent driving characteristics whether you are cruising the street or building a dedicated high-performance vehicle. Each unit undergoes stringent quality inspections and balancing to guarantee reliability under extreme pressure.

Engineered for precision and durability, this converter is ready to handle chopped cams and lightweight vehicle applications where consistent power transfer is critical. Tackle your build with confidence, backed by veteran-owned and family-run expertise since 1970.

Key Specifications

• Application: Ford C6 FE Motors
• Series: Street Bandit Series
• Part Number: 26032
• Crank Pilot Diameter: 1.848 inch
• Stall Range: 2,200 - 2,800 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub: 31 Spline, Precision CNC Machined
• Impeller Hub: Hardened Chrome Moley, Precision CNC Machined
• Bearings: Torrington Style Incased Bearings
• Stator Type: Modified Extreme Duty, Anti-Balloon Plates (No)
• Construction Detail: Fins are 4 corner Tac Welded or Furnace-Brazed
• Oil Bolt Size: 3/8 X 16 TPI (Grade 8 Only)

Installation & Operation Notes

• All advertised stall ranges are based on a specific vehicle's setup and will vary depending on your application. Please contact us for more detailed information.
• For optimal performance, consider using Old School Type F transmission fluid.
• Always pair your build with an additional transmission cooler for superior heat management.

Expert Recommendations

• Apply Blue Loctite on critical fasteners to ensure secure installation.

Ready to build a high-performance or racing converter? Ask about our No Prep options today!
