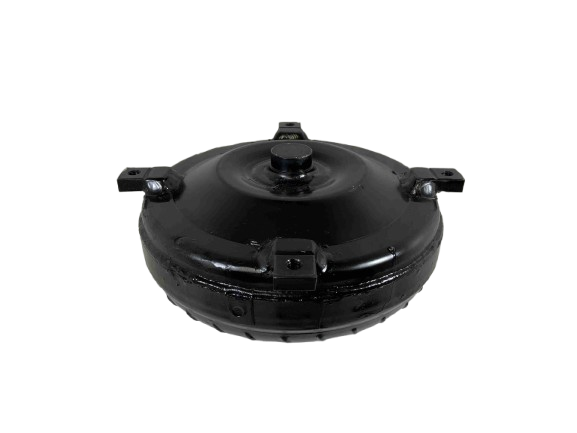

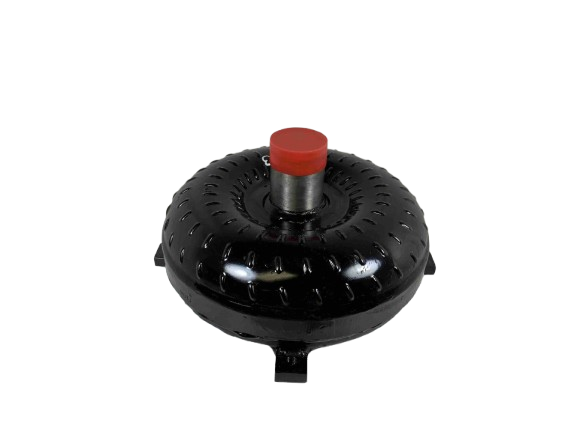

C4 24 Spline Street Bandit 28-3,200 RPM Ford Torque Converter Part Number 25013

Ford C4 Street Bandit Series Torque Converter - 157 Tooth FlexPlate

Engineered for high-performance applications, this Super Lightweight Torque Converter is built specifically for the Ford C4 transmission. The Street Bandit Series offers great driving characteristics combined with extreme durability, making it ideal for Choppy Cams and lightweight vehicles that demand reliability under stress.

This precision-machined converter features a 157 tooth flex plate and is built to accommodate small bellhousing setups, ensuring a perfect match for your build.

Technical Specifications

• Transmission Compatibility: Ford C4
• Series: Street Bandit Series
• Flex Plate Tooth Count: 157 Teeth
• Stall Range: 2,800 - 3,200 RPM
• Torque Converter Height: Built to 5 5/8 inches tall (for small bellhousing)
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.5 inches
• Impeller Hub Material: Hardened Chrome Moley
• Turbine Hub Detail: 24 Spline, Precision CNC Machined
• Stator Detail: Modified Extreme Duty Stator
• Crank Pilot Diameter: 1.375 inch
• Bolt Size Recommendation: 3/8 X 16 TPI (GRADE 8 ONLY)
• Design Features: Torrington Style Incased Bearings, Leak & Pressure Tested, Digitally Balanced
• Construction: Fins are 4 corner Tac Welded or Furnace-Brazed, NO Anti-Balloon Plates

Installation & Usage Notes

• For optimal performance, utilize Old School Type F Transmission Fluid.
• Always use an additional transmission cooler for reliable operation.
• Apply Blue Loctite on proper assembly hardware.

Important Build Notes

• All advertised stall ranges are dependent upon a specific vehicle's setup and will vary based on your application.
• Contact us for detailed information regarding your unique build configuration (888) 267-7464.

We are building high performance and racing converters since 1970! Veteran Owned and Family Run. If you require a custom match or race-spec build, inquire about our "No Prep Racing Converters."
