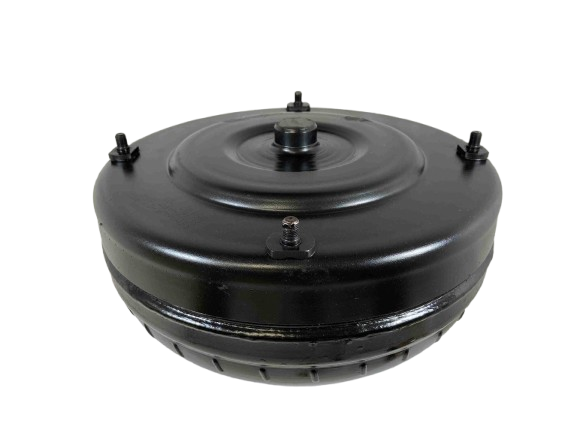

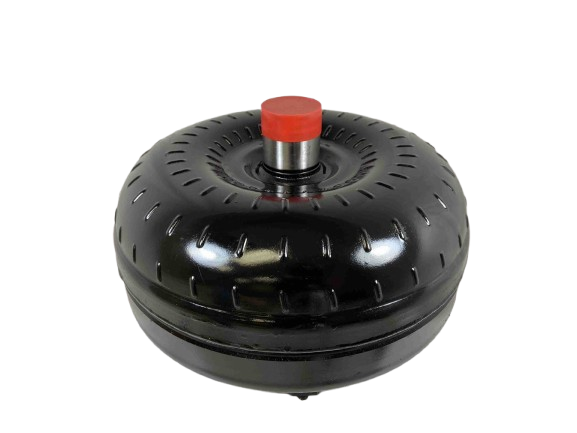

AODE Night Stalker 22-2,800 RPM Lock Up Ford Torque Converter Part Number 26501

Night Stalker Series Torque Converter for Ford AODE Transmission

Upgrade your drivetrain with our high-performance Night Stalker Series Torque Converter, specifically designed for the Ford AODE transmission. Engineered with heavy-duty components and precision machining, this converter provides reliable power transfer while offering a robust stall range to match your application. This aftermarket replacement is built to withstand extreme conditions and ensure optimal performance from the moment you install it.

While this unit is built for strength and durability, please note that conversion sizes are critical. This converter features a bolt pattern smaller than the 12" sized converters, fitting various setups requiring aftermarket replacement.

Product Specifications

• Transmission Application: Ford AODE (2-step input shaft)
• Torque Converter Series: Night Stalker Series
• Stall Range: 2,200 - 2,800 RPM Stall
• Bolt Circle Diameter: 11 3/8 inches
• Input Shaft Splines: 31 Spline
• Core Diameter: Factory 11.5 inch Core
• Crank Pilot Size: Factory 1.375 inch
• Bolt Nuts: 3/8 X 24 TPI Nuts

Key Features & Construction

• Modified Heavy Duty Stator design ensures robust fluid coupling.
• Hardened Chrome Moly Impeller Hub for maximum durability.
• Torrington Style Incased Bearings provide smooth and lasting operation.
• Over Sized Extreme Duty Lock Up band for superior efficiency.
• Digitally Balanced and quality inspected at every step, including leak & pressure testing.
• High-quality construction includes 4 Corner tac Welded Fins or Furnace Brazed passages.

Installation Recommendations

• For optimal results, use old-school type F Transmission Fluid.
• Always incorporate an additional transmission cooler for extreme performance setups.
• Blue Loctite is recommended during installation.

Important Notes

• All advertised stall ranges are based on a specific vehicle setup and performance configuration. Actual stalls may vary depending on your unique vehicle application. For detailed fitting information, please contact us at (888) 267-7464.
• If you have upgraded powertrain components (Intake, Heads, Headers, Exhaust, Cam, or Gearing), we recommend upgrading to our "Street Bandit Series" torque converter.
• For applications involving power adders such as Nitrous Oxide, Turbocharger(s), Supercharger, or a Transmission Brake, we advise selecting our "Out Law Series" torque converter.

Building high performance & racing converters since 1970! We are a family-run, veteran-owned business dedicated to quality craftsmanship.
