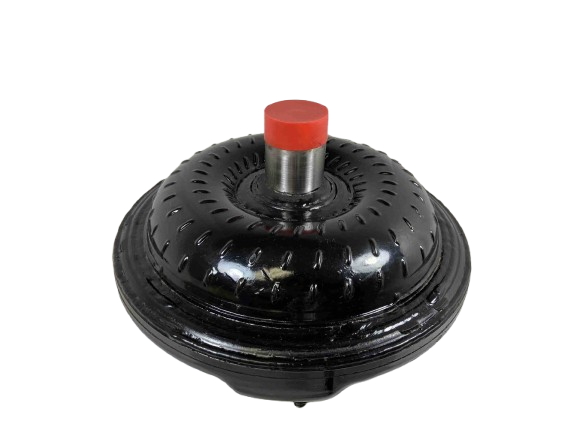

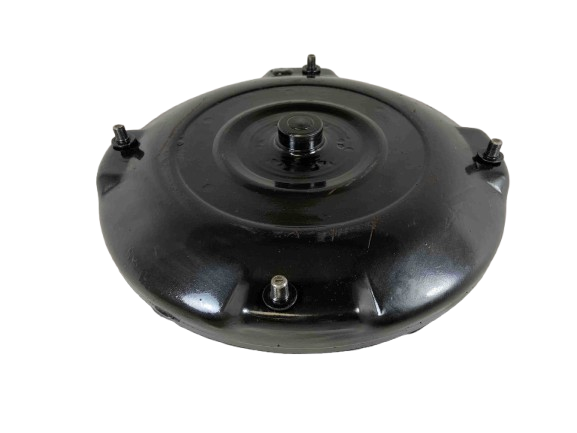

AOD Out Law Series 28-3,200 RPM Lock Up Ford Torque Converter Part Number 26743

FORD AOD Out Law Racing Series Torque Converter - Part #26743

Elevate your build with this extreme-duty racing torque converter, engineered specifically for the Ford AOD transmission (3-step input shaft). Constructed with high-quality materials and meticulously manufactured components, this unit provides the power delivery required for Choppy Cams, lightweight vehicles, and high-performance builds, including those running Nitrous Oxide or Turbo applications.

Key Specifications & Build Quality

• Application: Factory 10 inch Core with factory front cover
• Input Shaft: 35 Spline Input Shaft for reliable engagement
• Stall Range: Highly optimized stall at 2,800 - 3,200 RPM
• Bolt Circle: 11.7/16 inches
• Impeller Hub: Hardened Chrome Moly for maximum durability
• Bearings: Torrington Style Incased Bearings providing superior rotational stability
• Lockup Clutch: Over Sized Extreme Duty Lock Up for zero slippage during cruising
• Crank Pilot: Factory 1.375 inch Crank Pilot with 3/8 X 24 TPI Bolt Size
• Construction Details: Whole Back Cover Quenched and Hardened; Pump & Turbine Fins are Welded or Furnace-Brazed
• Quality Control: Digitally Balanced, Leak & Pressure Tested upon completion

Technical Details

• Transmission Compatibility: Ford AOD (3-step input shaft)
• Series: Out Law Racing Series
• Part Number: 26743
• Features: Anti-Balloon Plates installed for enhanced stability in high-performance applications

Performance Considerations

• Use Type F transmission fluid for optimum performance.
• Always pair with an additional Transmission Cooler to maintain operating temperature and extend unit life.
• Utilize Blue Loctite on fasteners to ensure all connections remain secure under extreme operational conditions.

Important Disclaimers

• Stall Range disclaimer: Advertised stall ranges are based on a specific vehicle setup; actual range will vary depending on your machine's configuration.
• Contact our specialists at (888) 267-7464 for precise technical guidance or to inquire about our No Prep Racing Converters.

MADE IN THE USA | Building High Performance & Racing Converters Since 1970! Veteran Owned and Family Run.
