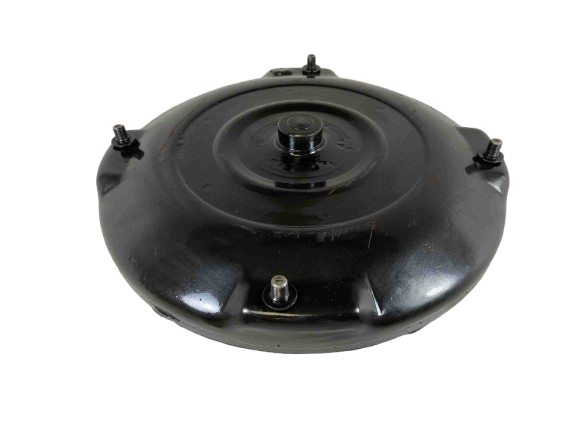

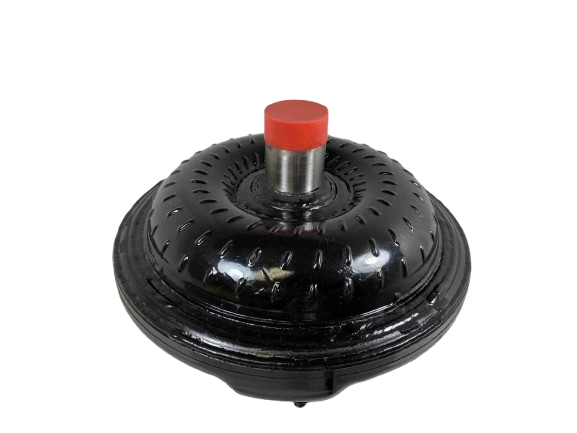

AOD Out Law Racing Series 22-2,800 RPM Lock Up Ford Torque Converter Part Number 26722

FORD AOD Torque Converter - Part Number 26722 (Out Law Racing Series)

Elevate your powertrain with our Out Law Racing Series Torque Converter, specifically engineered for the 3-step input shaft applications. Designed for extreme duty and high-performance builds, this torque converter delivers exceptional durability and precise stall control. Built to withstand the harshest driving conditions, it is the perfect match for chopped cams, lightweight builds, or demanding racing setups that require unmatched reliability and power transfer.

Key Product Specifications

• Torque Converter Type: High Performance Racing Series
• Part Number: 26722
• Transmission Compatibility: FORD AOD (3-Step Input Shaft)
• Stall Range: 2,200 - 2,800 RPM Stall
• Core Details: Factory 10 inch Core with factory front cover
• Bolt Circle Diameter: 11.7/16 inches

Premium Engineering & Performance Features

• 35 Spline Input Shaft for reliable mating.
• Modified Heavy Duty Stator and Hardened Chrome Moly Impeller Hub for enhanced thermal management.
• Torrington Style Incased Bearings provide maximum durability under high RPM.
• Over Sized Extreme Duty Lock Up for robust power band control.
• Factory 1.375 inch Crank Pilot with 3/8 X 24 TPI Nuts.
• Features Anti-Balloon Plates for maintaining pressure integrity during stall.
• Whole Back Cover is Quenched and Hardened, ensuring dimensional stability.
• Pump & Turbine Fins are Welded or Furnace-Brazed for leak prevention.
• Meticulous quality control, including Leak & Pressure Testing and Digital Balancing.

Installation and Usage Guidelines

Tips for Optimal Performance

• Use Type F Transmission Fluid as recommended for best operation.
• Always incorporate an additional transmission cooler to manage heat under extreme conditions.
• Apply Blue Loctite during assembly for maximum fluid retention and mechanical bond strength.

Important Setup Notes

• All advertised stall ranges are based on a specific vehicle setup and will vary depending on your installation.
• We advise contacting us with your specific vehicle setup for personalized consultation.

Experience the difference that quality makes with our MADE IN THE USA, veteran-owned and family-run construction. For dedicated support or sizing information specific to your transmission, please contact us at (888) 267-7464.
