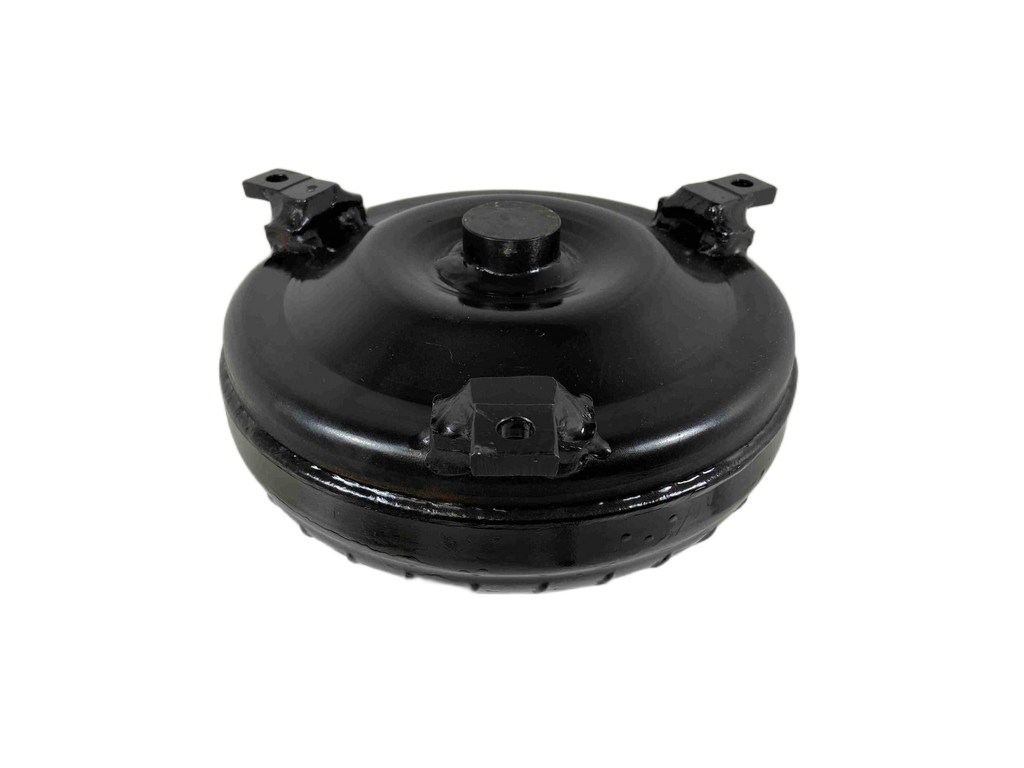

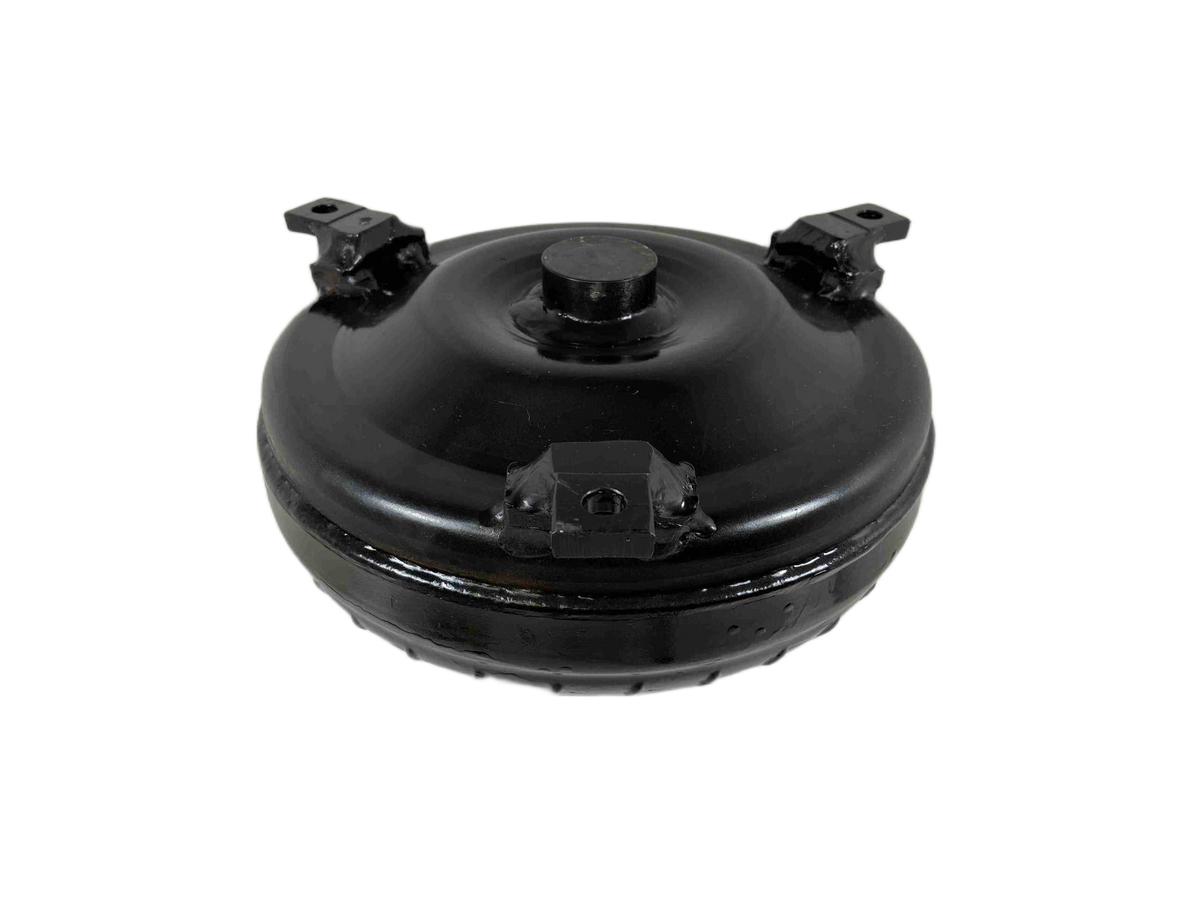

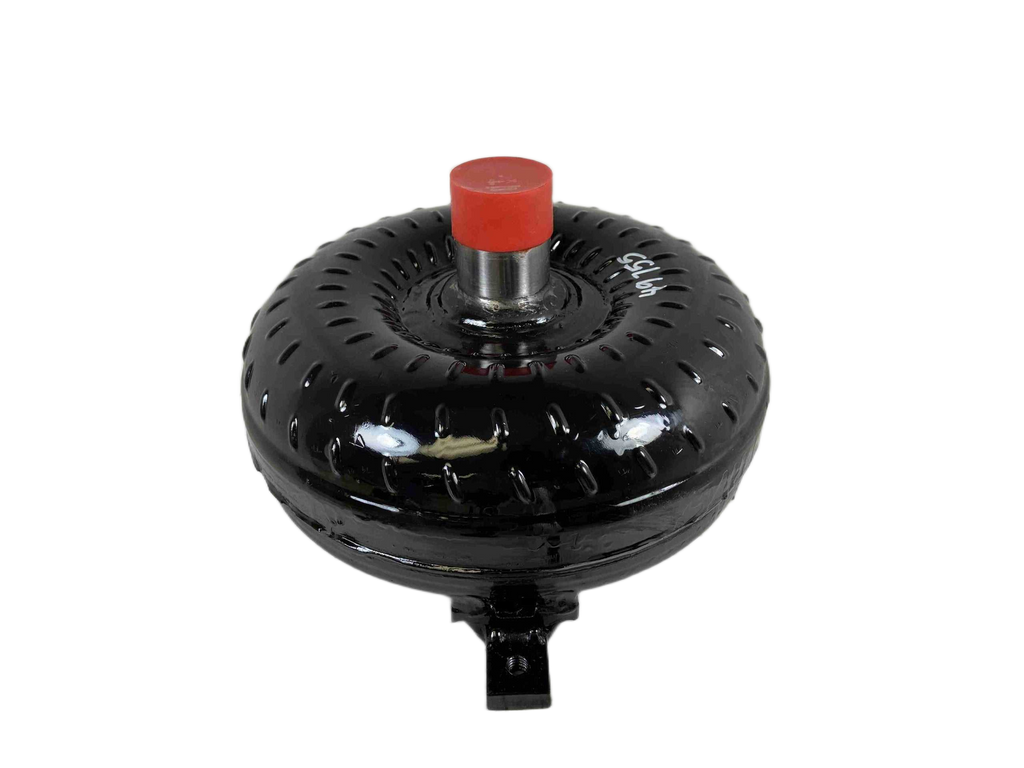

700R4 Street Bandit 42-5,000 RPM Lock Up GM Torque Converter Part Number 48446

STREET BANDIT SERIES Torque Converter - GM Chevy 700R4 (298mm)

Optimize your build with our high-performance Street Bandit Series Torque Converter, specifically designed for LT type engines running a 3-step input shaft. Engineered for extreme duty and choppiness, this Super Lightweight Lock Up Converter provides reliable performance and dependable operation under demanding driving conditions. Built in the USA, this unit is rigorously inspected to ensure peak performance.

Key Product Details

• Transmission Type: GM Chevy 700R4 (LT Engines)
• Series: Street Bandit Series
• Part Number: 48446
• Diameter/Size: 298mm, 9.6 inch Core
• Stall Range: 4,200 - 5,000 RPM

Technical Specifications

• Input Shaft: 30 Spline Input Shaft

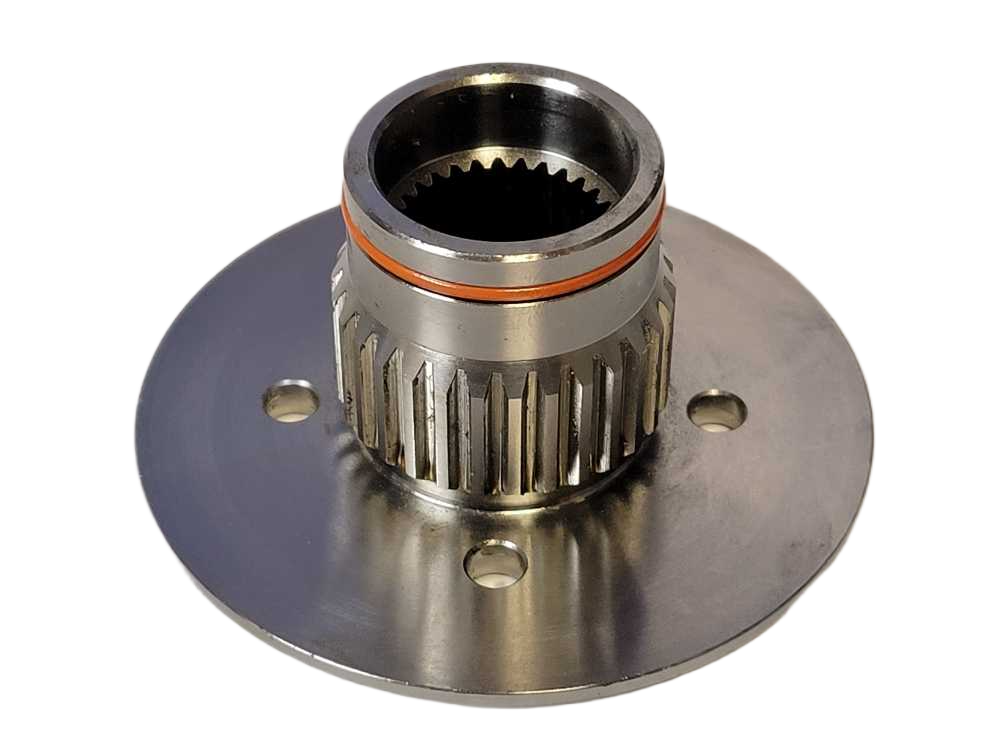

• Hub Construction: Hardened Chrome Moly Hub with Torrington Style Incased Bearings

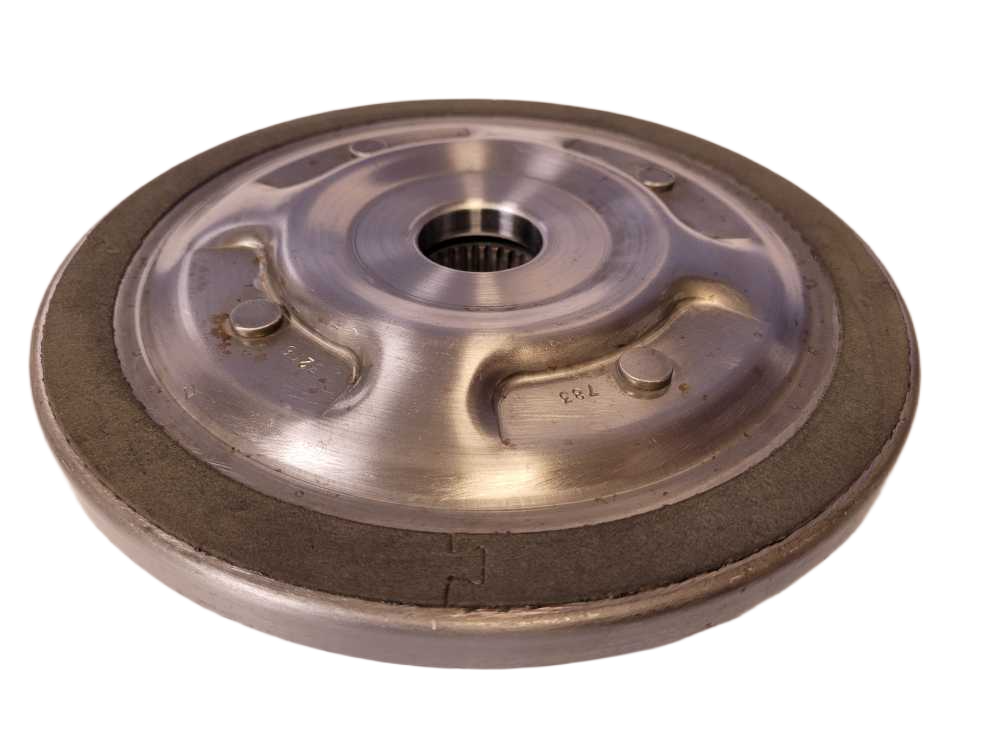

• Performance Enhancements: Modified Heavy Duty Stator and Extreme Duty Lock Up
• Dimensions: 10.75-inch Bolt Circle, 1.703-inch Crank Pilot Precision CNC Machined
• Hardware: Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• Features: Super Lightweight Lock Up, Anti-Balloon Plates, Tailored for Choppy Cams and Lightweight Vehicles

Installation & Performance Notes

• All advertised stall ranges are based on specific vehicle setups and may vary depending on your build. Please contact us for personalized advice.

Application Tips

• For optimal operation, use Old School Type F Transmission Fluid.
• We recommend installing an additional transmission cooler to maintain fluid temperature during hard use.
• Applying Blue Loctite aids in ensuring reliable, long-lasting assembly integrity.

Building high performance and racing converters since 1970! Contact us today to discuss upgrading your drivetrain or for sizing advice on building high-performance and racing torque converters.
