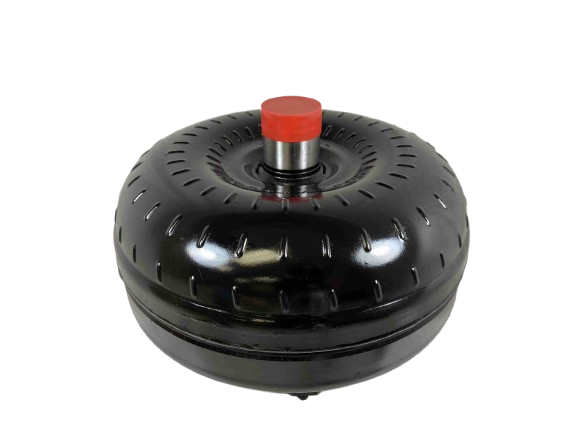

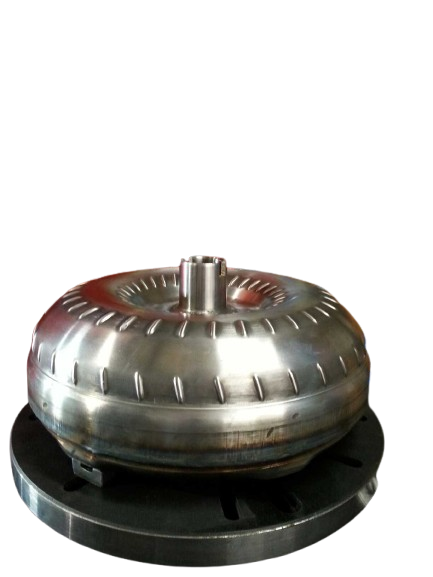

4R100 E40D 6 bolt Night Stalker Stock Replacement No Stall Added Lock Up Ford Torque Converter Part Number 24461

Night Stalker Series Torque Converter – Part #24461 (FORD 4R100 E40D)

Upgrade your drivetrain reliability and performance with our factory-quality, heavy-duty torque converter. Designed for demanding applications requiring precision matching and rugged construction, this Night Stalker Series unit ensures maximum durability and efficient power transfer in your build. Proudly MADE IN THE USA.

Product Overview & Application Details

This torque converter is built to handle the rigorous demands of high-performance transmissions, offering critical thermal and pressure resistance while maintaining a matched factory build quality.

• Transmission Application: FORD 4R100 E40D
• Series/Style: Night Stalker Series
• Part Number: 24461
• Bolt Pattern: 6 Lug Bolt Pattern (Factory 11.4 inch bolt circle)
• Stall Range: Stock Stall - No Added Stall (Factory 12 inch core)
• Input Shaft: 31 Spline Input Shaft

Advanced Construction & Key Specifications

Each torque converter undergoes stringent quality control to ensure flawless operation under extreme conditions. Our components are selected for longevity and ultimate reliability.

• Stator: Modified Extreme Duty Stator
• Impeller Hub: Hardened Chrome Molly Impeller Hub
• Bearings: Torrington Style Incased Bearings
• Fluid Integrity: Extreme Temp Heavy Duty O-ring
• Lock Up Mechanism: Oversized Extreme Duty Single Disk Lock Up
• Crank Pilot: 1.375 inch Crank Pilot
• Nut Specification: 3/8 by 24 TPI Grade 8 ONLY
• Anti-Ballooning: Anti-balloon plates included (No)

Quality Assurance

We build performance lasting units. This unit includes:

• Quality Inspections at Every Step
• Leak & Pressure Tested
• Digitally Balanced Construction
• Welding: 4 Corner tac Welded Fins or Furnace Brazed

Installation & Performance Notes

Optimal performance requires correct application and fluid selection. Please review the following for best results:

• Use Type F Transmission Fluid For Best Results.
• Always incorporate an additional transmission cooler for extreme duty applications.

Important Information

• All advertised stall ranges are based on a specific vehicle's setup and may vary depending on your particular application.
• Contact us for more information or technical support: 888-267-7464.
