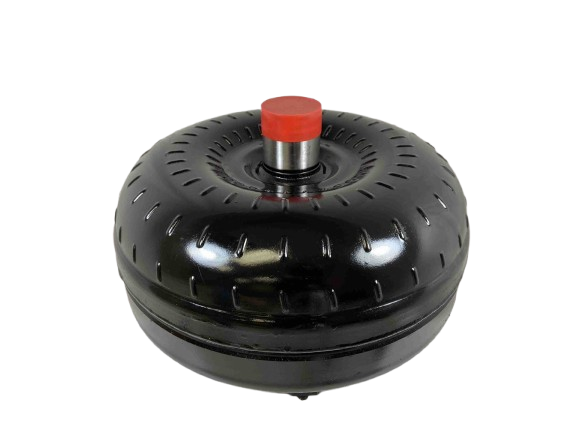

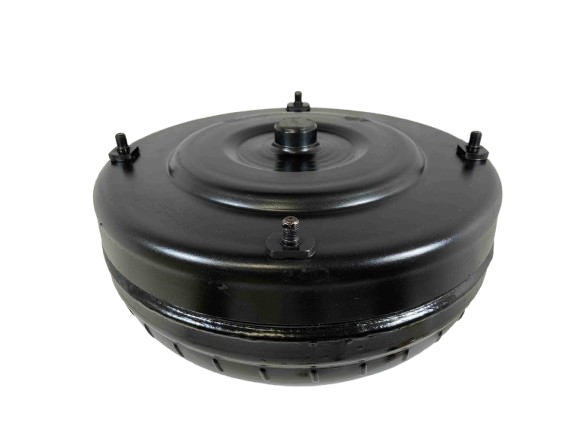

4R100 E40D 4 Bolt Night Stalker 22-2,800 RPM Lock Up Ford Torque Converter Part Number 24402

Night Stalker Series Torque Converter | Fits Ford 4R100 E40D (Part #24402)

Engineered for high-performance applications, this Night Stalker Series Torque Converter delivers flawless power transfer and heat dissipation when paired with your demanding powertrain. Constructed using premium, extreme-duty materials and rigorously quality-checked in our facility, this unit is built to handle the harshest conditions while maintaining precise operation. Proudly Made in the USA.

Product Specifications

• Part Number: 24402
• Series: Night Stalker Series
• Application Fits: Ford 4R100 E40D
• Stall Range: 2,200 - 2,800 RPM
• Design: Factory 12-inch Core with Factory 11.4-inch Bolt Circle
• Torque Capacity: Modified Extreme Duty Stator Assembly

Key Mechanical Features

• 31 Spline Input Shaft for robust connection.
• Hardened Chrome Molly Impeller Hub provides superior durability.
• Torrington Style Incased Bearings ensure smooth, prolonged operation.
• Extreme Temp Heavy Duty O-ring maintains pressure integrity under extreme conditions.
• Oversized Extreme Duty Single Disk Lock Up for dependable shift performance.
• 1.375 inch Crank Pilot accommodates specialized applications.
• 4-Lug bolt pattern accepts 3/8 by 24 TPI Grade 8 Nuts.
• Features quality construction including 4 Corner tac Welded Fins or Furnace Brazed housings.
• No Anti-Balloon Plates included for specific setup requirements.

Manufacturing & Quality Assurance

• Digitally Balanced for optimal reliability.
• Leak & Pressure Tested upon completion.
• Undergoes Quality Inspections at Every Step to guarantee performance.

Installation Guidance

• Use Type F Transmission Fluid for best operational results.
• Always utilize an additional transmission cooler when installing this unit.

Important Considerations

• Advertised stall ranges are based on a specific vehicle setup; actual performance will vary depending on your application.
• For customized fitting or further information regarding installation and performance, please contact us directly at 888-267-7464.
