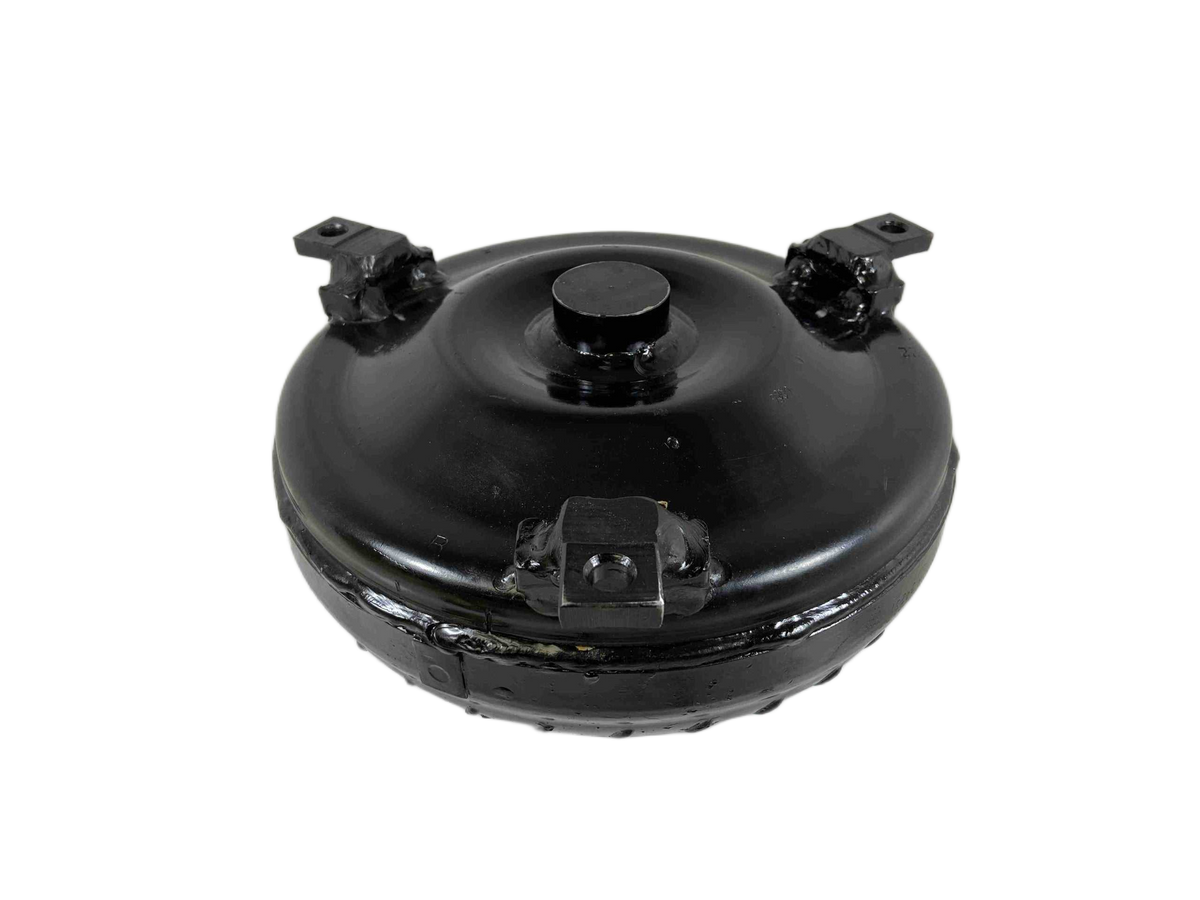

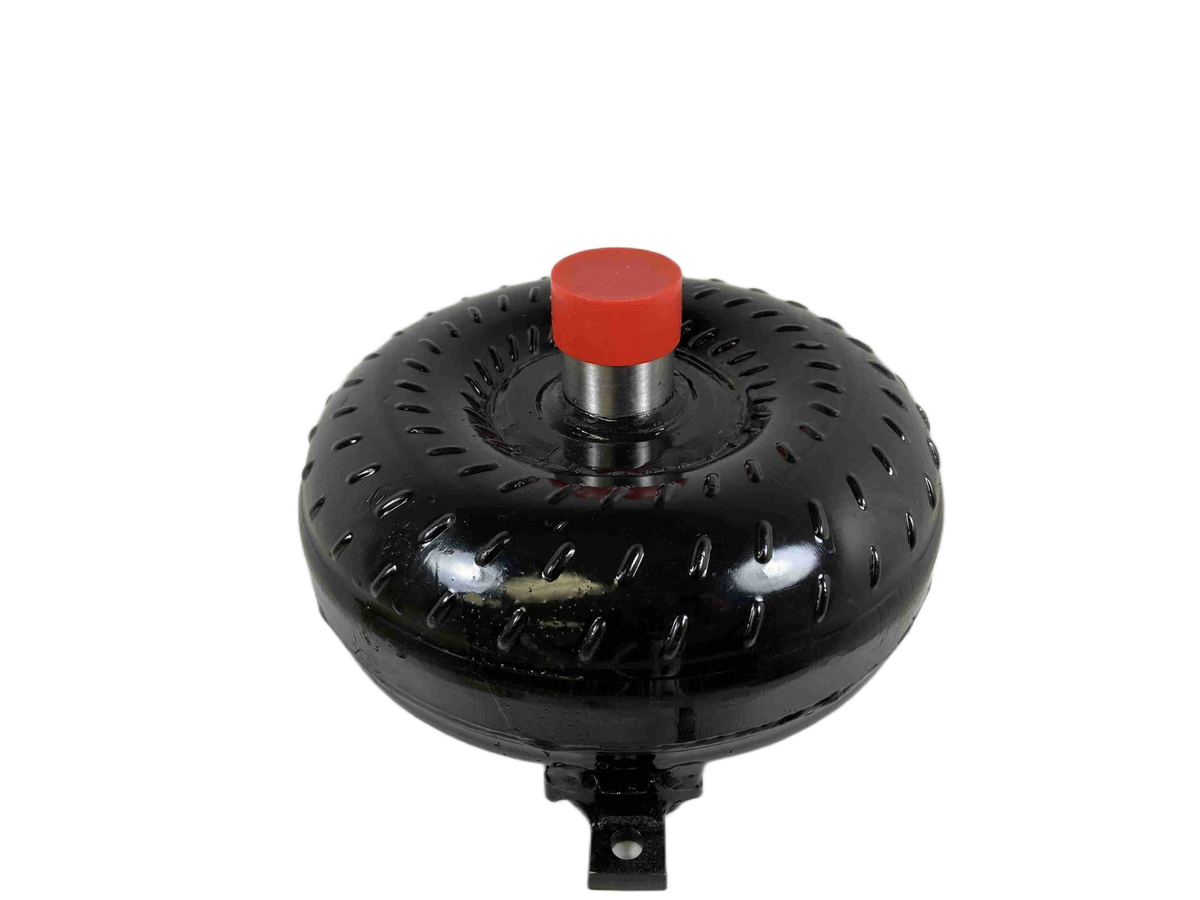

2004R 700R4 298mm Out Law 35-4,200 RPM Lock Up GM Racing Torque Converter Part Number 48755

GM Chevy 700R4 & 200R Torque Converter - Outlaw Racing Series

Engineered for high-performance applications, this Super Lightweight Torque Converter is the ideal match for demanding racing setups, including Choppy Cams and lightweight vehicles. Designed specifically for 9.6-inch core LT type engines, this conversion provides reliable power transfer and durability when combined with high-performance driveshaft builds. Experience ultimate performance confidence with our precision-machined, balanced units.

Key Specifications & Compatibility

• Transmission Types: 700R4, 200R
• Torque Converter Series: Outlaw Racing Series (LT Type Engines)
• Part Number: 48755
• Stall Range: 3,500 - 4,200 RPM
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: 10.75 inches
• Input Shaft Splines: 27-Spline (Count the smaller set of splines at the top of each tooth)
• Pump Pilot: 1.703-inch Crank Pilot Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Bolts Only)
• Shaft Detail: Designed for the 3-step input shaft.

Advanced Construction & Performance Features

• Extreme Duty Stator and Turbine Assembly
• High-Quality Torrington Style Encased Bearings
• Precision CNC Machining on Anti-Balloon Plates and Pump/Turbine faces
• Whole Back Cover is Quenched and Hardened for maximum durability.
• Pump & Turbine Fins are fully welded or furnace-brazed for leak resistance.
• Digitally Balanced and Leak & Pressure Tested prior to shipment.

Application Guide

• Ideal for high-power applications including Nitrous Oxide, Turbochargers, Super Chargers, and Trans-Breaks.

Installation & Usage Considerations

• Use Type F transmission fluid for optimal performance.
• Always install a dedicated Transmission Cooler to maintain operating temperatures.
• Apply Blue Loctite for secure assembly.

Important Notes

• Advertised stall ranges are based on a specific vehicle setup; actual performance may vary depending on your unique application.
• Contact us for more information regarding specific setup compatibility: 888-267-7464.

Building High Performance & Racing Converters Since 1970!
