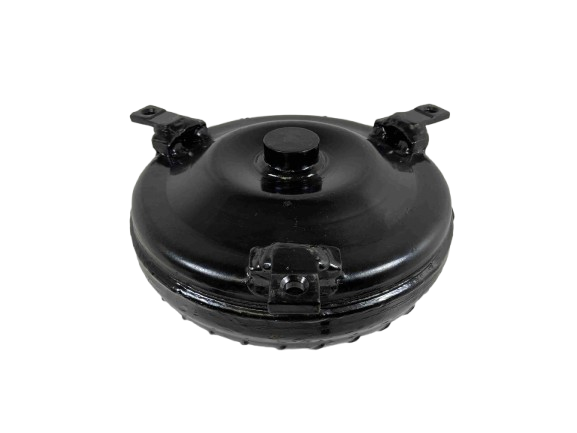

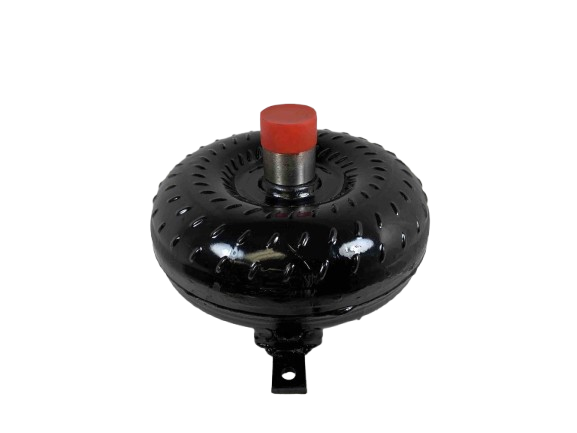

TH400 Street Bandit Series 42-5,000 RPM GM Torque Converter Part Number 46015

GM Chevy TH400/TH350 Street Bandit Series Torque Converter - 9.6 Inch Core

Achieve excellent driving characteristics and reliable performance with this Super Lightweight Torque Converter, specifically designed for demanding applications including Choppy Cams and lightweight vehicles. This precision-machined converter offers robust construction combined with necessary lightness for superior throttle response and dependable operation in your automatic transmission.

Engineered with high-quality components and manufactured in the USA, this converter is ready to handle your performance upgrades while maintaining peak operational fluidity.

Key Specifications

• Transmission Compatibility: TH400, TH350 (requires proper Flex-Plate for TH350 installation)
• Series: Street Bandit Series (also available in Out Law Racing Series for extreme power adders)
• Stall Range: 3,500 - 4,200 RPM
• Core Size: 9.6 inch
• Bolt Circle Diameter: 11.5 inches
• Turbine Hub: 30 Spline
• Impeller Hub: Precision CNC Machined Hardened Chrome Moley
• Stator: Modified Extreme Duty
• Crank Pilot Diameter: 1.703 inch
• Bolt Size: 3/8 X 16 TPI (GRADE 8 ONLY)
• Design Features: No Anti-Balloon Plates, Fins Tac Welded/Furnace-Brazed, Leak & Pressure Tested, Digitally Balanced

Installation & Operational Notes

• Always use a Transmission Cooler when operating this converter.
• For best performance, utilize Type F transmission fluid.
• Use Blue Loctite during installation.

Important Considerations

• Advertised stall ranges are based on specific vehicle setups and may vary depending on your application. Please contact us for detailed fitting advice.
• We recommend upgrading to a Street Bandit Series converter if you have installed significant performance enhancements (e.g., Intake, Heads, Exhaust, Cam, or Gearing).
• Consider upgrading to an Out Law Racing Series converter if you employ power adders such as Nitrous Oxide (NOS), Turbochargers, Superchargers, or a Transmission Brake.

Need assistance with installation guidance or selecting the perfect part for your build? Contact our experts today!
