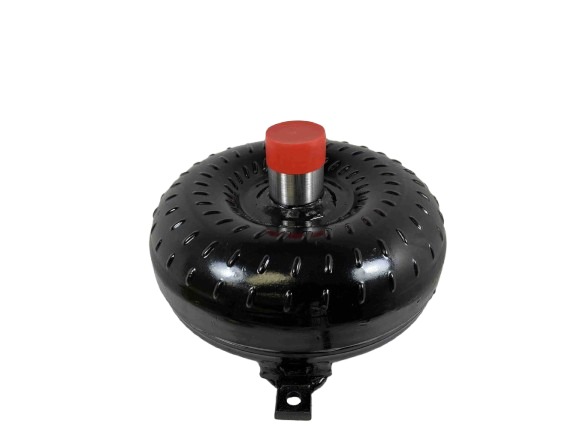

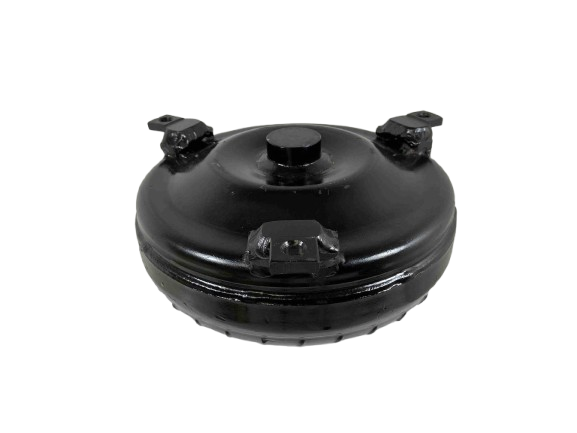

TH350C Street Bandit 28-3,200 RPM Lock Up GM Torque Converter Part Number 47403

STREET BANDIT SERIES Torque Converter - GM Chevy TH350C, 298mm Lock Up (P/N 47403)

Designed for high-performance LT type engines, this Street Bandit Series torque converter delivers robust power and dependable performance where it matters most. Experience the reliability of extreme-duty construction combined with precision engineering to handle your demanding driving conditions. Engineered for a smooth, controlled shift and enhanced power delivery.

Technical Specifications

• Transmission Type: GM Chevy TH350C
• Series: Street Bandit Series
• Part Number: 47403
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.75 inches
• Input Shaft: 30 Spline, Tailored for 3-step inputs

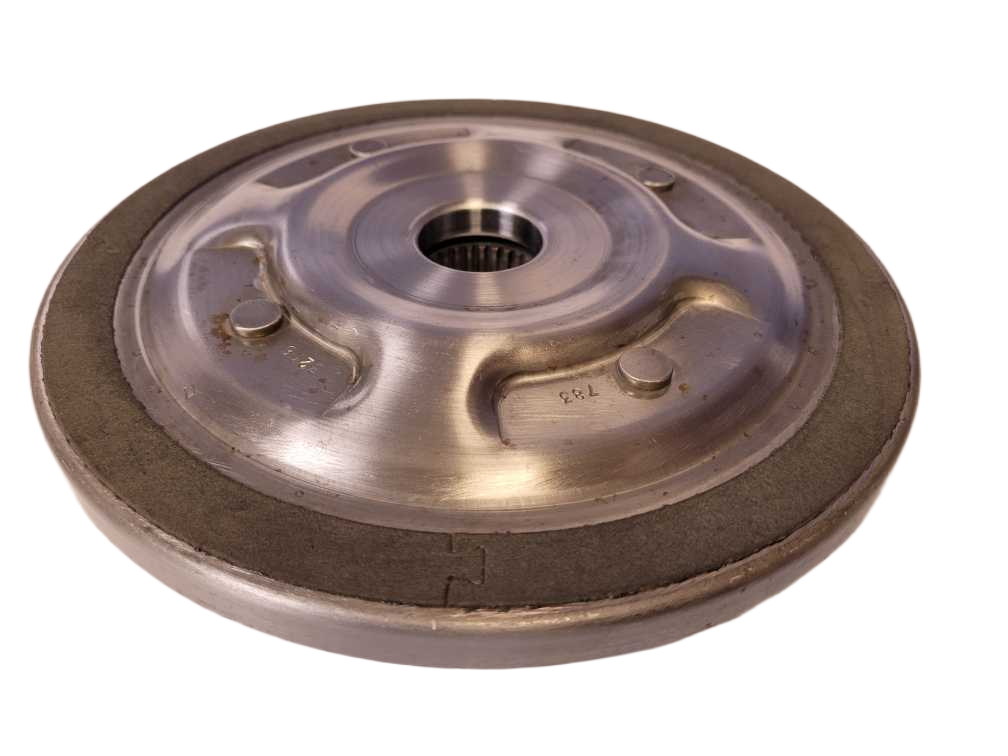

• Lock Up Feature: Extreme Duty Sealed Lock Up

Key Performance Features

• Hardened Chrome Moly Hub construction for superior durability.
• Torrington Style Incased Bearings provide smooth operation and longevity.
• Modified Heavy Duty Stator maximizes efficiency during performance demands.
• Digitally Balanced and undergoes comprehensive Leak & Pressure Testing for peak reliability.
• Precision Machined Turbine Hub (1.703 inch Crank Pilot) ensures perfect fitment.
• Includes Deleted Input Shaft O-Ring requirement, enhancing structural integrity during assembly.
• Built with 4 Corner Tac Welded Fins for optimal fluid dynamics.

Installation & Application Notes

• All advertised stall ranges are based on a specific vehicle setup and may vary significantly depending on your application. Please contact us for tailored advice.
• Consider upgrading to our "Out Law Series" converters if installing power adders such as Nitrous Oxide, Turbochargers, or Superchargers.
• This unit is made entirely in the USA and backed by our commitment to quality inspections at every step.

Assembly Tips

• Utilize Old School Type F transmission fluid for optimum performance results.
• Always install an additional transmission cooler to maintain system health during strenuous use.
• Apply Blue Loctite to ensure maximum component stability and lasting performance.
