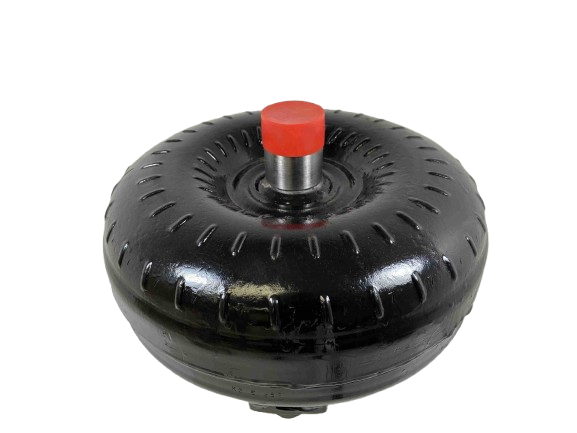

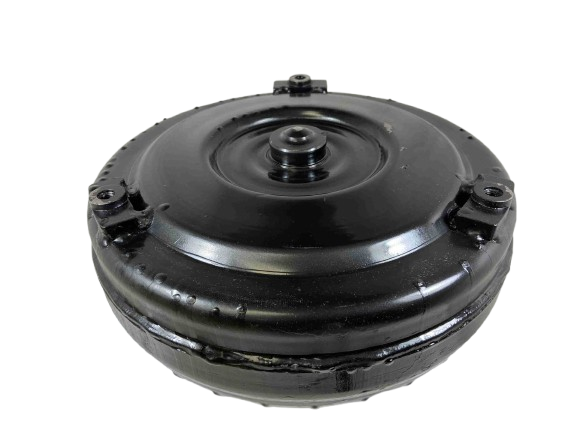

TH350C Night Stalker 22-2,800 RPM Lock Up GM Torque Converter Part Number 47402

GM Chevy TH350C 298mm Lock Up Torque Converter - Night Stalker Series

Ensure optimal power transfer and smooth operation for your classic or modern muscle car with our precision-machined Night Stalker Series Torque Converter. Designed specifically for the TH350C application, this extreme-duty conversion piece provides reliable performance and durability when paired with the correct vehicle setup.

Product Specifications

• Transmission Compatibility: TH350C (Warning: Will NOT Fit TH350 or TH400)
• Series: Night Stalker Series
• Stall Range: 2,200 - 2,800 RPM
• Torque Converter Size: Factory 12 inch Core
• Turbine Hub: 30 Spline
• Impeller Hub: Precision CNC Machined Hardened Chrome Moly
• Bearing System: Torrington Style Incased Bearings
• Stator: Modified Heavy Duty Stator
• Lock Up Feature: Extreme Duty Lock Up
• Crank Pilot Diameter: 1.703 inch
• Bolt Circle Diameter: 10.75 inches
• Bolt Size: 10mm X 1.5 Pitch Threads
• Additional Features: No Anti-Balloon Plate, Four Corner Tac Welded Fins or Furnace-Brazed Construction
• Tested: Leak & Pressure Tested, Digitally Balanced, Quality Inspections at Every Step

Installation Recommendations

• Use Type F Transmission Fluid for best operational results.
• Always use an additional transmission cooler for sustained high-performance driving.
• Apply Blue Loctite during installation to ensure maximum reliability.

Important Notes

• Advertised stall ranges are based on a specific vehicle's setup and actual performance will vary depending on your application.
• For detailed installation advice or to discuss your specific setup, please contact us at (888) 267-7464.
• For high-performance upgrades (Intake, Heads, Headers, Exhaust, Cam, or Gearing), we recommend upgrading to the "Street Bandit Series."
• For applications involving power adders (Nitrous, Turbocharger, Supercharger, or Trans Brake), we recommend upgrading to the "Out Law Racing Series."

Handcrafted and quality assured in the USA. Building High Performance & Racing Converters Since 1970!
