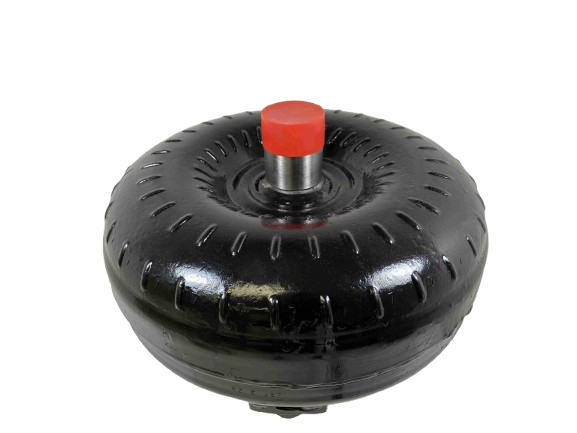

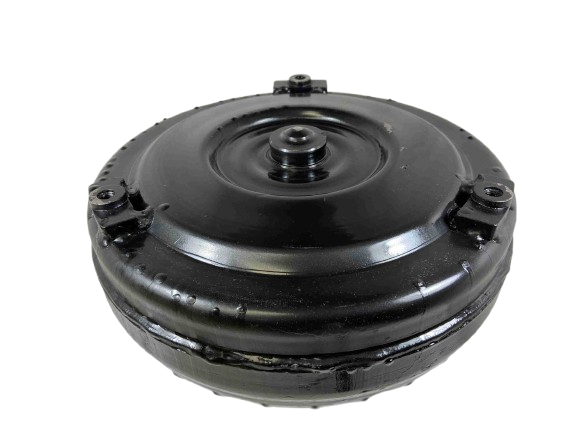

TH350C Night Stalker 16-2,200 RPM Lock Up GM Torque Converter Part Number 47401

Night Stalker Series Torque Converter - Precision Fit for GM Chevy TH350C (Part #47401)

Engineered for maximum durability and performance, this Night Stalker Series torque converter is the ultimate upgrade for your GM Chevy TH350C application. Constructed with precision CNC machining and heavy-duty components, it provides an extreme duty lock-up capability combined with reliable performance in demanding driving conditions.

Ensure correct application compatibility before installation. This unit is designed specifically for the TH350C and its dedicated setup. It will NOT fit standard TH350 or TH400 transmissions.

Key Technical Specifications

• Series: Night Stalker Series
• Part Number: 47401
• Application: GM Chevy TH350C 298mm Lock Up
• Stall Range: 1,600 – 2,200 RPM
• Core Size: Factory 12 inch Core
• Bolt Circle Diameter: 10.75 inches

Heavy-Duty Construction Details

Every component of this torque converter is built to withstand high power demands, ensuring optimal efficiency and longevity under extreme pressure. This unit represents a significant quality investment in your drivetrain.

• 30 Spline Turbine Hub
• Precision CNC Machined Hardened Chrome Moly Impeller Hub
• Torrington Style Incased Bearings for smooth operation
• Modified Heavy Duty Stator assembly
• Extreme Duty Lock Up mechanism
• 1.703 inch Crank Pilot Diameter
• NO-Anti Balloon Plate installation
• Furnace or Tac Welded Fins ensuring thermal transfer
• Digitally Balanced and Leak/Pressure Tested during assembly
• Quality inspections performed at every manufacturing step

Installation & Maintenance Guidance

• Use Type F transmission fluid for optimal performance.
• Always install a quality transmission cooler system for enhanced cooling efficiency.
• Apply Blue Loctite during installation to secure components.

Important Installation Notes

• Advertised stall ranges are based on a specific vehicle setup and may vary depending on your application.
• Contact us at (888) 267-7464 for detailed setup advice.

Performance Upgrade Recommendations

Tailor your torque converter to match your engine's capabilities and performance goals:

• Considering a mild setup upgrade (e.g., upgrading Intake, Heads, or Cam)? We recommend the "Street Bandit Series."
• Adding high-powered accessories like Nitrous Oxide, Turbocharger(s), Supercharger, or Trans Brake? The "Out Law Racing Series" is advised.

Building high performance and racing converters since 1970! We are committed to providing you with quality, reliable drivetrain solutions. Made in the USA.
