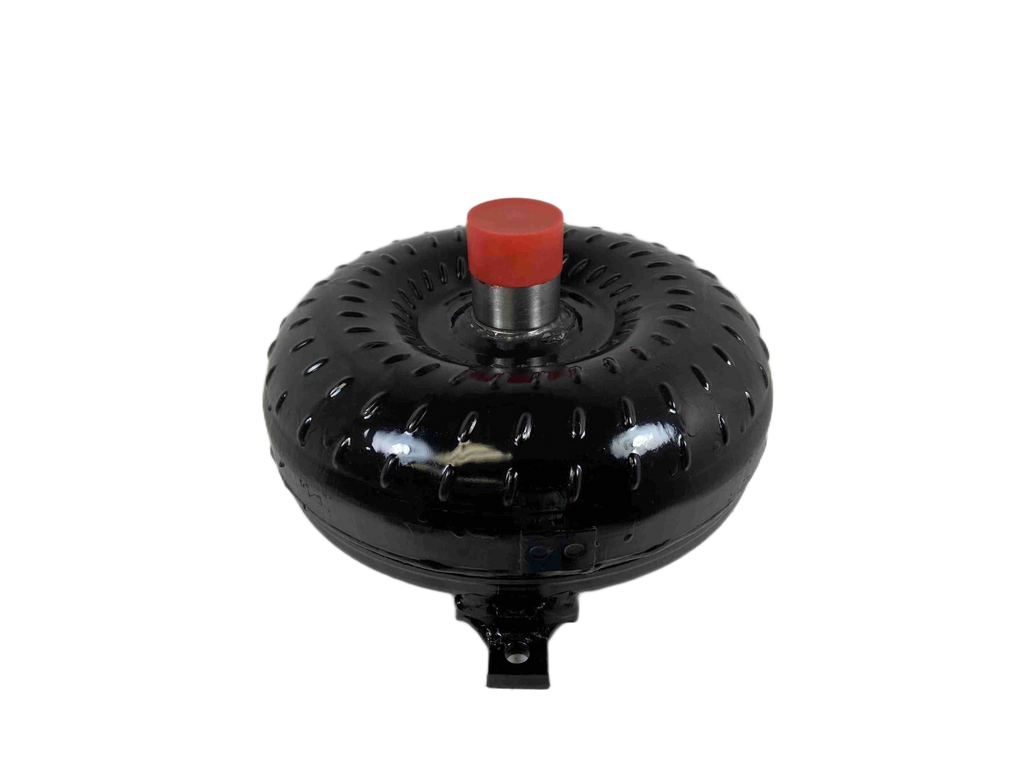

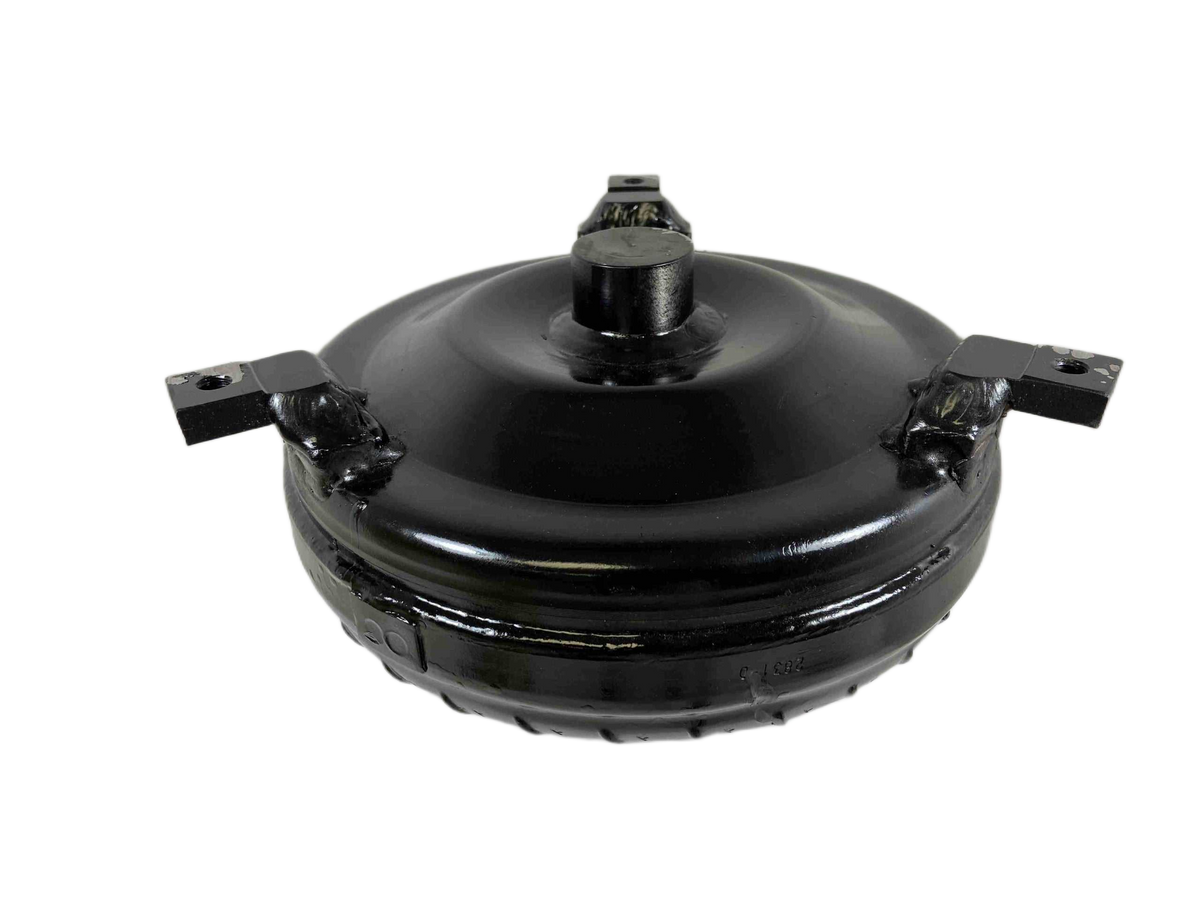

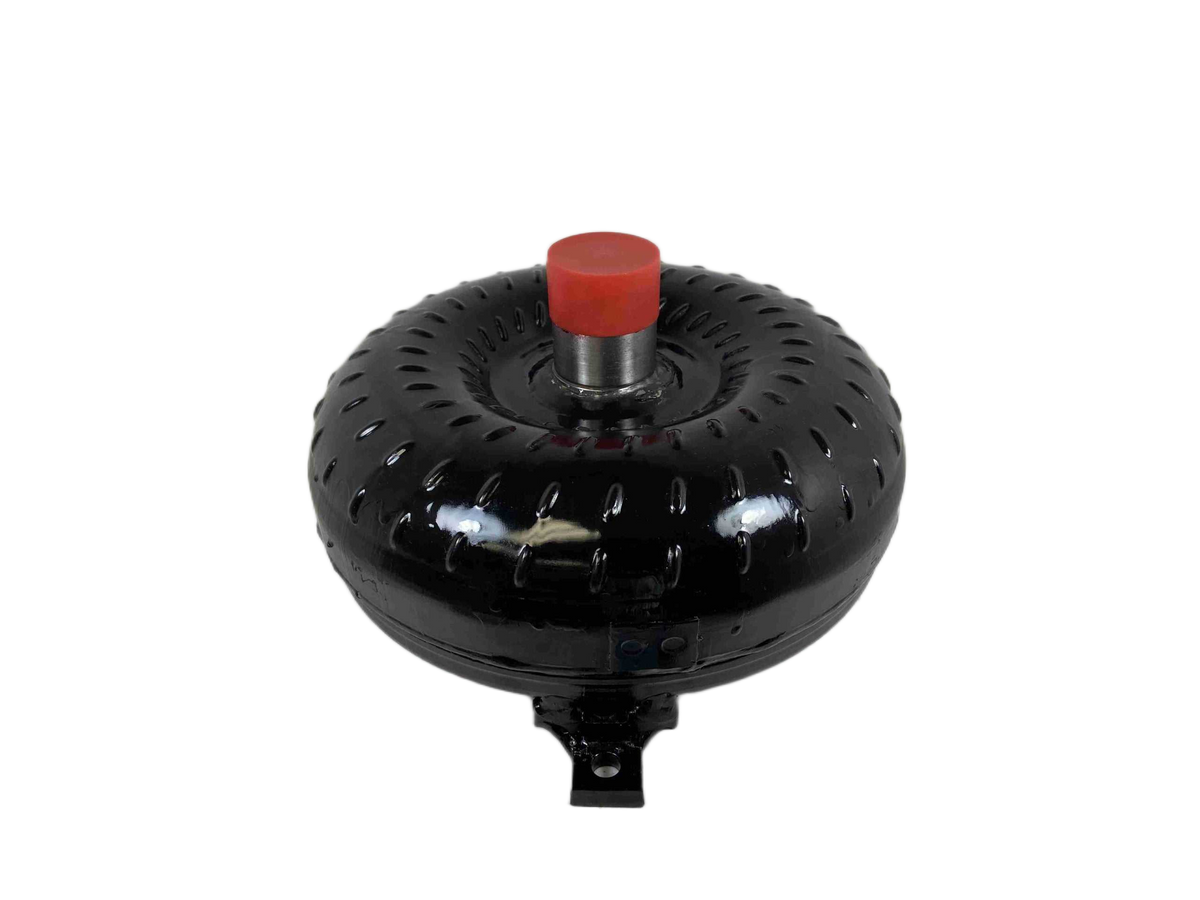

TH350 TH400 Powerglide Street Bandit 32-3,500 RPM LS GM Direct Fit Torque Converter Part Number 47333

Street Bandit Series Torque Converter - Direct Fit for GM Chevy TH350/TH400 PG & LS Engines (Part #47333)

Achieve unparalleled performance and reliability with our Street Bandit Series Torque Converter. Specifically engineered for the TH350 and TH400 PowerGlide transmissions, this direct-fit converter is purpose-built to handle the demanding application of an LS engine. Constructed with high-precision CNC machining and heavy-duty materials, this unit provides a perfect balance of durability and extreme performance for your build.

This Super Lightweight converter is designed to seamlessly integrate with the factory LS 11.063 flex plate, offering a dependable and robust upgrade for chopped cams and lightweight vehicles seeking maximum efficiency.

Key Technical Specifications

• Application Series: Street Bandit Direct Fit
• Transmission Compatibility: TH350 / TH400 PowerGlide (Direct Fit for LS Engine)
• Part Number: 47333
• Impeller Hub: Hardened Chrome Moley, Precision CNC Machined
• Turbine Hub: 30 Spline Turbine Hub
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: Factory LS 11.063 inches
• Crank Pilot Size: 1.703 inch (Extended for LS applications)
• Bearings: Torrington Style Incased Bearings
• Stator: Modified Extreme Duty Stator
• Build Quality: Precision CNC Machined, Digitally Balanced, Leak & Pressure Tested

Performance Profile

• Stall Range: 3,200 - 3,500 RPM
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Recommended)
• Plates: No Anti-Balloon Plates

Installation & Important Information

• Use Type F Transmission Fluid for optimal performance and longevity.
• Always utilize a transmission cooler when operating under high loads or extended drives.
• Apply Blue Loctite to ensure critical connections remain secure.

Compatibility Notes

• All advertised stall ranges are estimations based on a specific vehicle setup and may vary depending on your application.
• This converter will NOT interchange with the TH350C model; upgrading to our "Outlaw Direct Fit Racing Series" is recommended when integrating high-performance adders such as Nitrous Oxide, Turbochargers, or Superchargers.

Our company has been building high-performance and racing converters since 1970. We are a veteran and family-owned business dedicated to quality craftsmanship, proudly MADE IN THE USA.
