TH350 TH400 Powerglide Street Bandit 28-3,200 RPM LS GM Direct Fit Torque Converter Part Number 47313

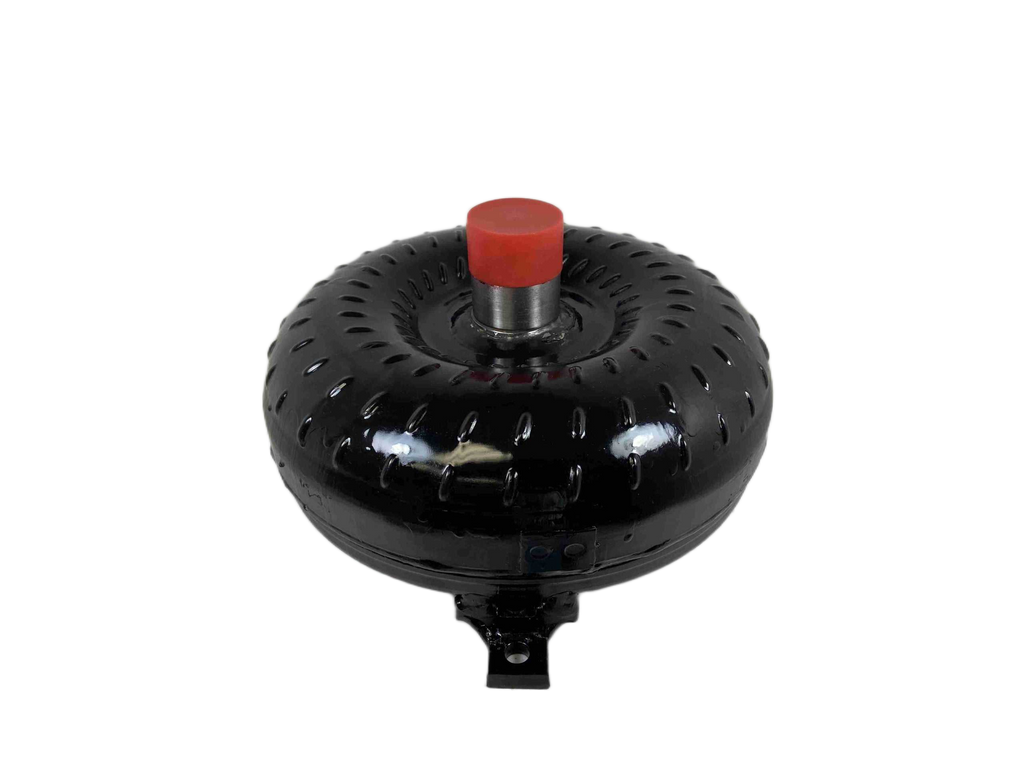

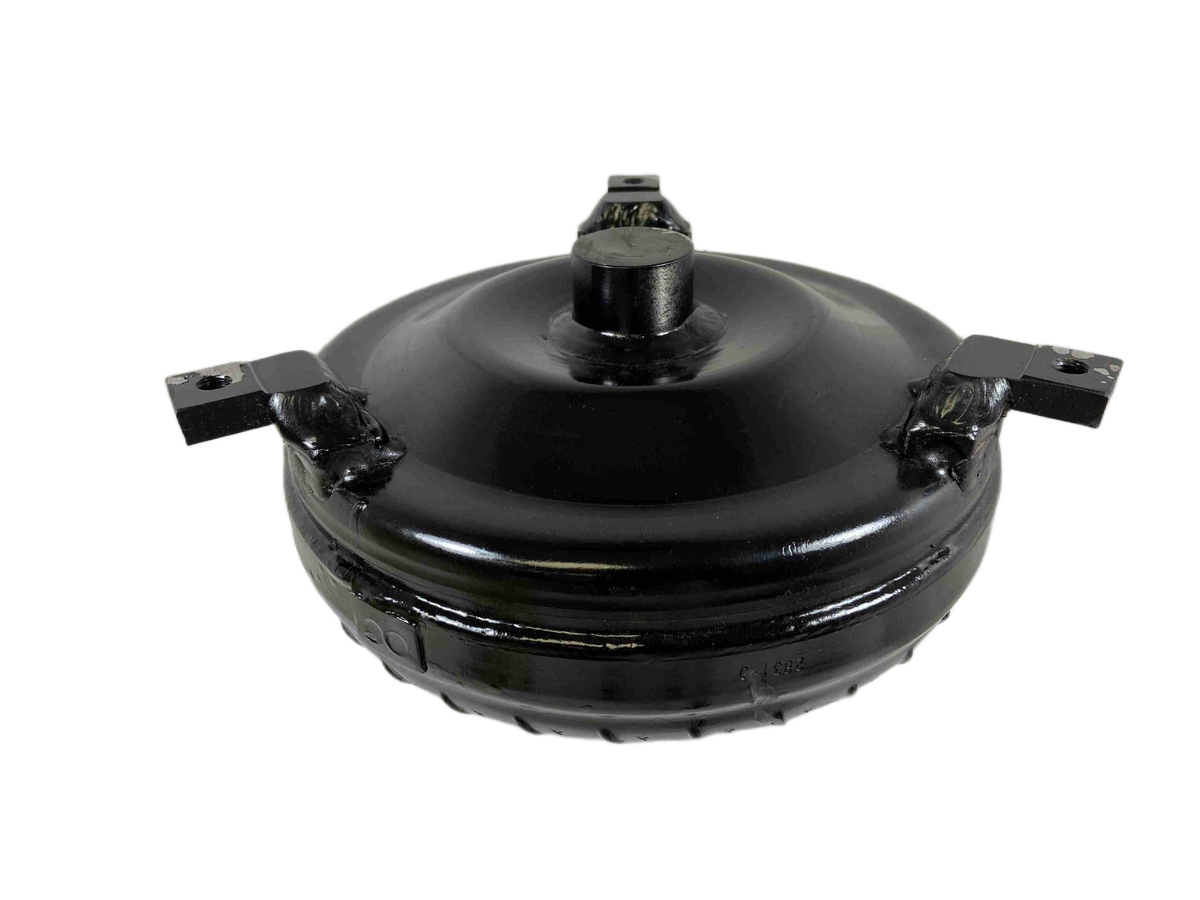

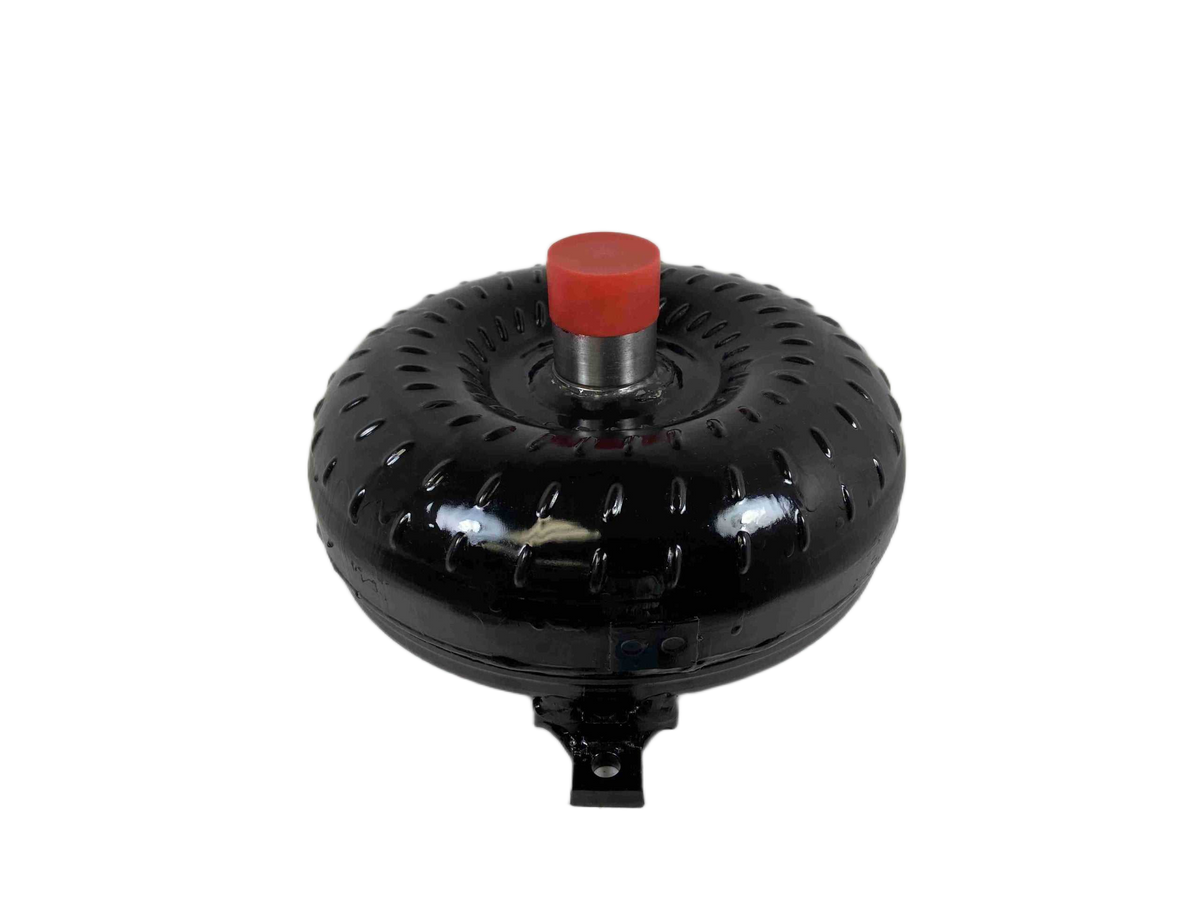

STREET BANDIT DIRECT FIT Series Torque Converter - TH350/TH400 PowerGlide (Part No. 47313)

Engineered for the LS platform, this Street Bandit Direct Fit Torque Converter is designed to offer reliable performance and a precise stall characteristic for choppier cams or lightweight setups. Built with heavy-duty components and meticulously machined to industry standards, this converter ensures maximum compatibility and durability for your high-performance application.

Product Specifications

• Transmission Fitment: TH350/TH400 PowerGlide
• Application Series: Street Bandit Direct Fit (LS Engine Compatible)
• Turbine Hub: 30 Spline Turbine Hub
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: Factory LS Spec (11.063 inches)
• Crank Pilot: 1.703 inch (Extended for LS fitment)
• Impeller Hub: Precision CNC Machined Hardened Chrome Moley
• Construction Details: Modified Extreme Duty Stator, Torrington Style Incased Bearings, Anti-Balloon Plates (NO)
• Machining Quality: Precision CNC Machined, Digitally Balanced, Leak & Pressure Tested

Performance Data

• Stall Range: 2,800 - 3,200 RPM
• Bolt Size: 3/8 X 16 TPI (Grade 8 hardware recommended)
• Construction: Fins are 4 Corner Tac Welded or Furnace-Brazed
• Servicing: Built using quality inspections throughout every stage of manufacturing.

Installation & Care Guide

• Use Type F transmission fluid for optimal performance.
• Always incorporate a dedicated transmission cooler to manage heat.
• Apply Blue Loctite during installation for maximum reliability.

Important Information

• Advertised stall ranges are based on specific vehicle setups and may vary with your application.
• This part will not interchange directly with the TH350C series.
• If using power adders such as Nitrous Oxide (NOS), Turbochargers, or Superchargers, we strongly recommend upgrading to an "Outlaw Direct Fit Racing Series" Torque Converter for enhanced performance and safety.

For any specific fitment queries or to discuss high-performance racing solutions, please contact our veteran and family-owned specialists at (888) 267-7464.
