TH350 TH400 PG Street Bandit Series 42-5,000 RPM GM Torque Converter Part Number 47015

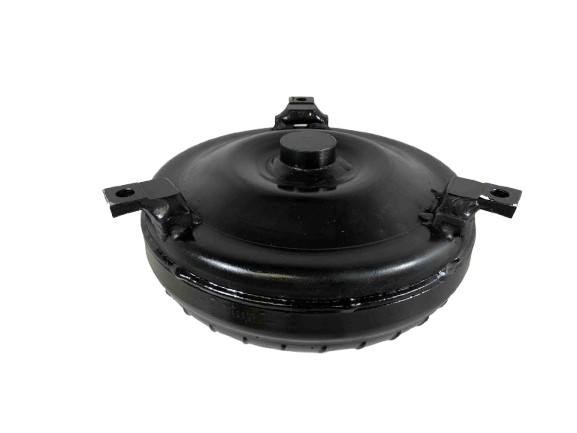

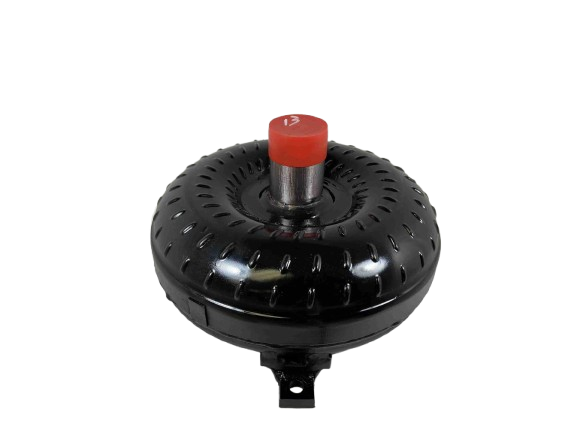

Street Bandit Series High Performance Torque Converter - GM Chevy TH350/TH400 PG (Part #47015)

Engineered for the demanding performance drives of modern muscle cars, this Super Lightweight Street Bandit Series Torque Converter is precision-machined to handle extreme duty applications while maintaining excellent drivability. Designed specifically for the TH350 and TH400 PG transmissions, this high-quality unit ensures maximum efficiency and reliability under aggressive driving conditions.

Our conversion units are built with critical high-performance components, including a hardened chrome impeller hub and Torrington Style Incased Bearings, guaranteeing durability and smooth operation for high-revving applications. Drop-in performance without compromising quality.

Key Technical Specifications

• Transmission Application: GM Chevy TH350 / TH400 PG (30 Spline)
• Series: Street Bandit Series
• Part Number: 47015
• Stall Range: 4,200 – 5,000 RPM
• Impeller Hub: Hardened Chrome Moley, 9.6 inch Core
• Bolt Circle Diameter: 10.75 inches
• Crank Pilot Diameter: 1.703 inches
• Turbine Hub Spline Count: 30 Splines
• Impeller Mounting Bolt Size: 3/8 X 16 TPI (Grade 8 hardware required)
• Construction: Modified Extreme Duty Stator, Tac Welded/Furnace Brazed Fins
• Quality Assurance: Leak & Pressure Tested, Digitally Balanced, Precision CNC Machined

Installation and Performance Guidance

• Optimal operation requires Type F transmission fluid for best results (Transmission Cooler).
• Apply Blue Loctite during assembly.
• The Stall Range is dependent on the specific vehicle setup and will vary. Contact us for detailed consultation before installation.
• While compatible with the TH400, this part number does not interchange with the TH350C.
• For builds involving significant power adders (e.g., Nitrous Oxide, Turbochargers, Superchargers), we recommend upgrading to our Out Law Racing Series Torque Converter.
• Consider upgrading the Street Bandit line if you have recently upgraded components such as intakes, heads, headers, exhaust, cam profiles, or gearing.

Building high-performance and racing converters since 1970. Proudly Veteran Owned and Family Run. For unparalleled service, contact us today at (888) 267-7464.
