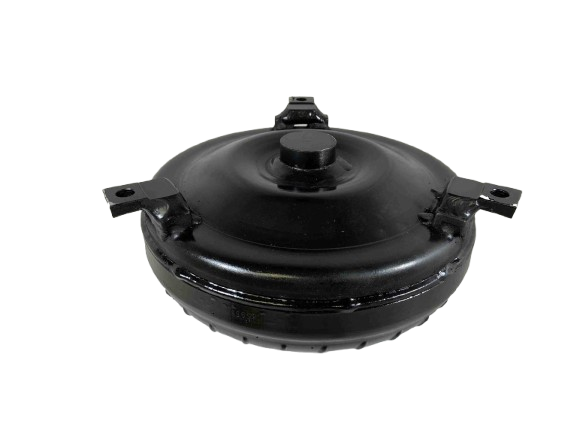

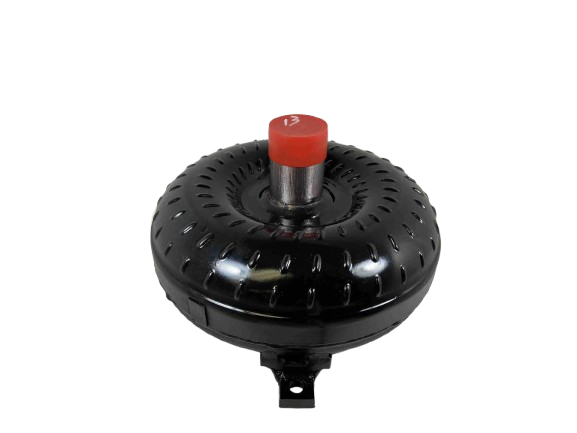

Powerglide Street Bandit Series 42-5,000 RPM GM Torque Converter Part Number 34045

Street Bandit Series Torque Converter | GM Chevy Powerglide TH350 (9.6" Core)

Elevate your drive with this high-performance Street Bandit Series Torque Converter, specifically designed for the GM Chevy Powerglide TH350 transmission. Built with extreme-duty components and precision machining, this converter offers exceptional driving characteristics and reliability for choppily tuned cams and lightweight high-performance builds. It is the perfect upgrade for enthusiasts demanding peak performance without sacrificing driveability.

This unit is built around a robust 9.6-inch core and features hardened components throughout, ensuring seamless operation when paired with the proper flex plate and turbo shaft setup. Built in the USA for enduring power transfer.

Technical Specifications & Features

• Transmission Type: Powerglide TH350
• Series: Street Bandit Series (Fits all Bell Housings)
• Part Number: 34045
• Stall Range: 4,200 - 4,500 RPM
• Core Size: 9.6 inch
• Bolt Circle Diameter: 10.75 inches
• Turbine Hub: 17 Spline, Precision CNC Machined
• Impeller Hub: Hardened Chrome Moley, Precision CNC Machined
• Bearings: Torrington Style Incased Bearings
• Stator: Modified Extreme Duty, Leak & Pressure Tested
• Crank Pilot Diameter: 1.703 inches
• Bolt Size Specification: 3/8 X 16 TPI (Grade 8 hardware recommended)

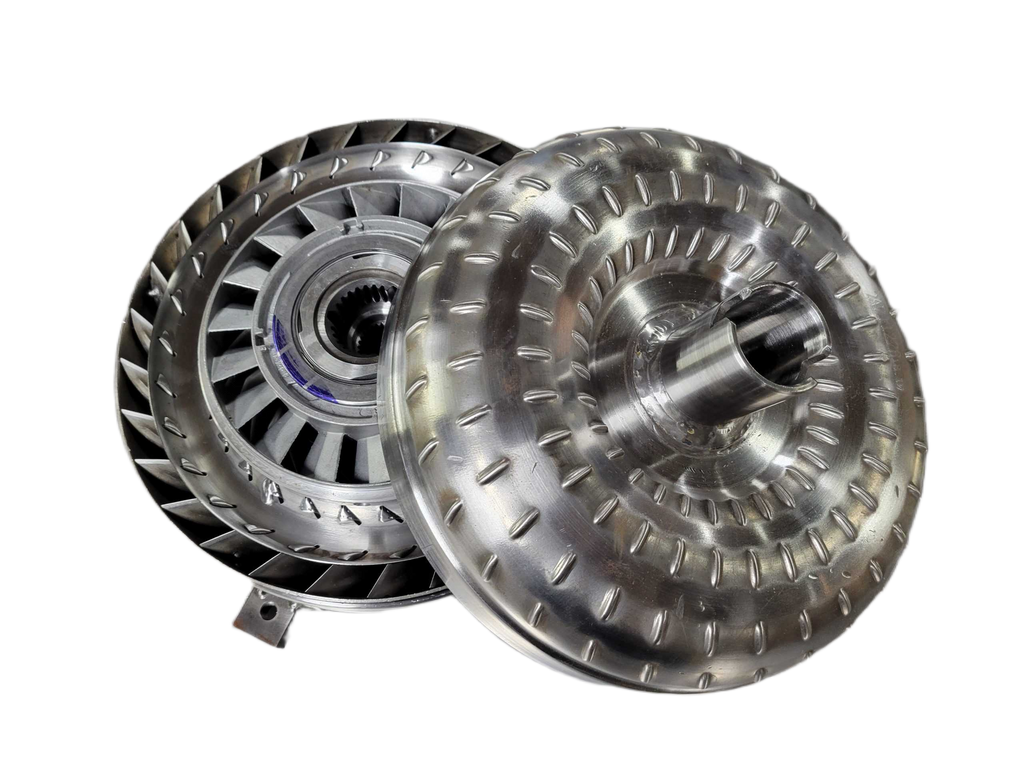

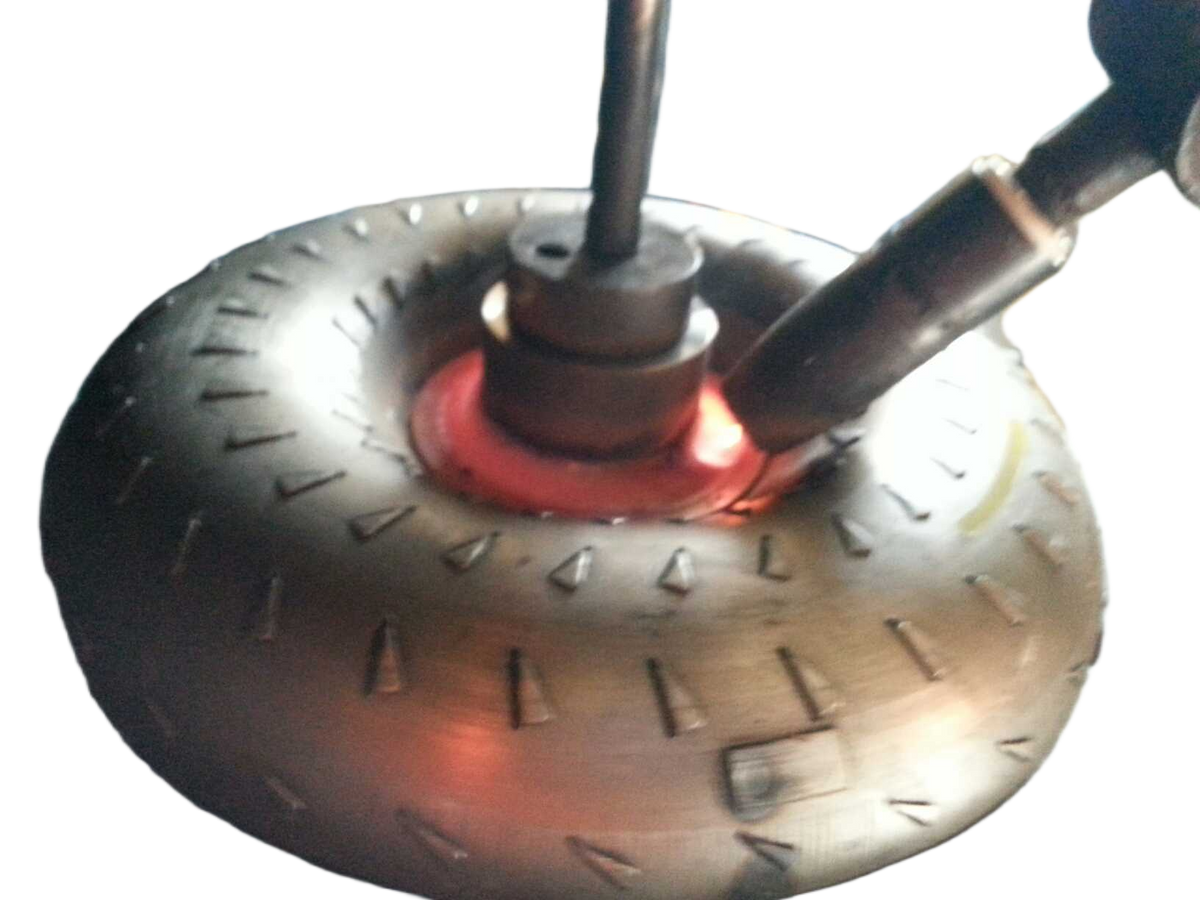

• Build Details: NO Anti-Balloon Plates, Fins are Tac Welded or Furnace-Brazed, Digitally Balanced, Quality Inspections at Every Step.

Optimal Performance Guidance

• For the best operational results, utilize Type F transmission fluid.
• Always install a compatible Transmission Cooler when running this high-performance unit.
• Use Blue Loctite on all proper threads to ensure maximum longevity and prevent vibration.

Important Installation & Usage Notes

• All advertised stall ranges are based on a specific vehicle setup and will vary depending on your application.
• We highly recommend upgrading to a "Street Bandit Series" converter if you have upgraded intake, heads, headers, exhaust, cam, or gearing.
• If your vehicle utilizes power adders such as Nitrous Oxide (NOS), Turbocharger, Supercharger, or a Transmission Brake, consult our "Out Law Racing Series" line for maximum compatibility and durability.
• For detailed installation advice or to confirm your vehicle's specific stall range, please contact us at (888) 267-7464.
