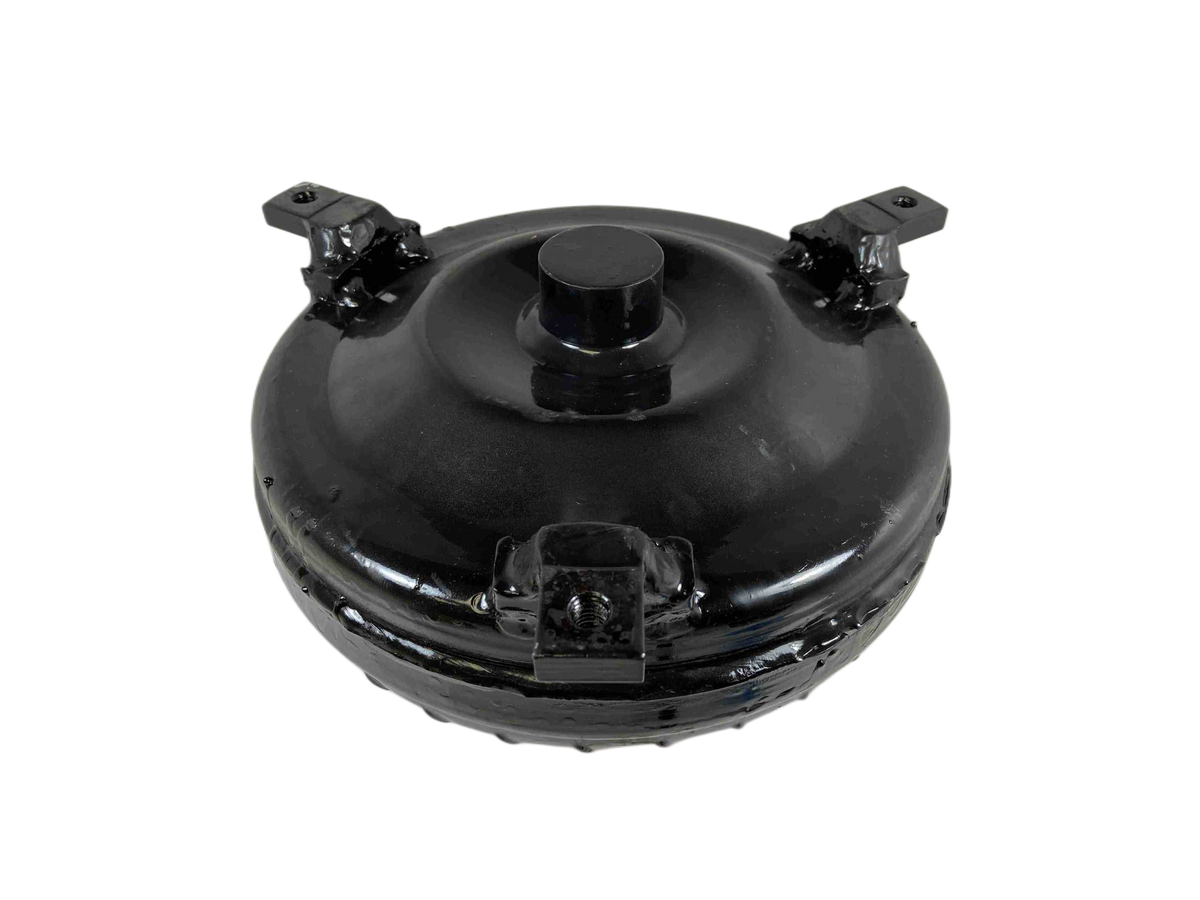

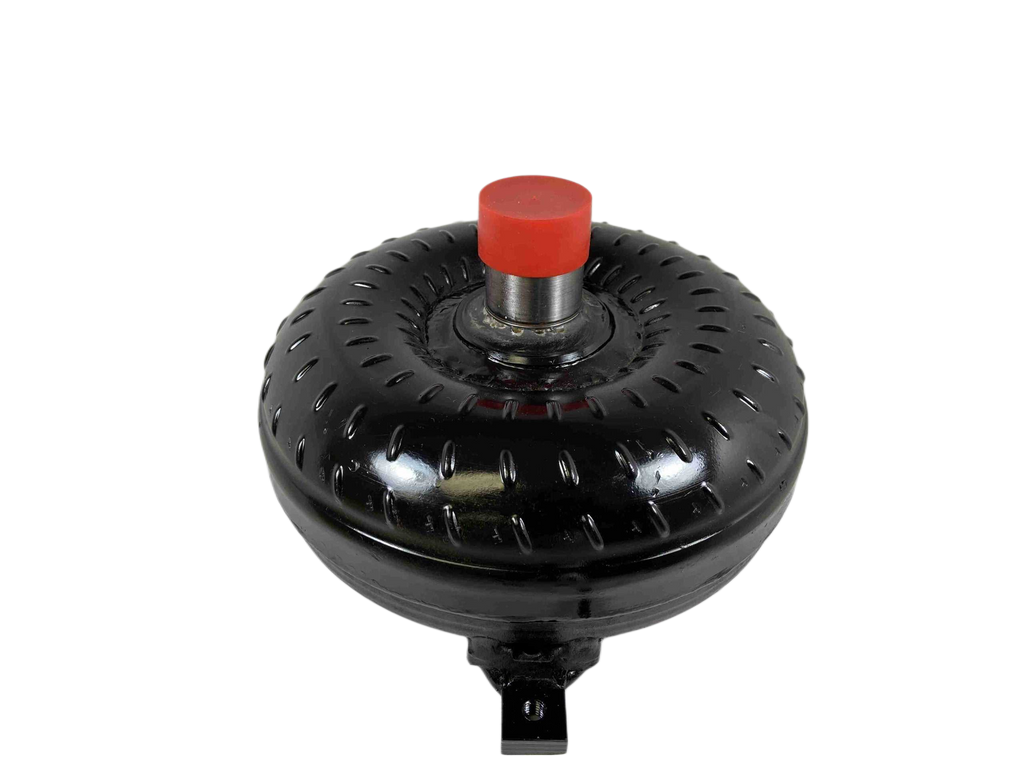

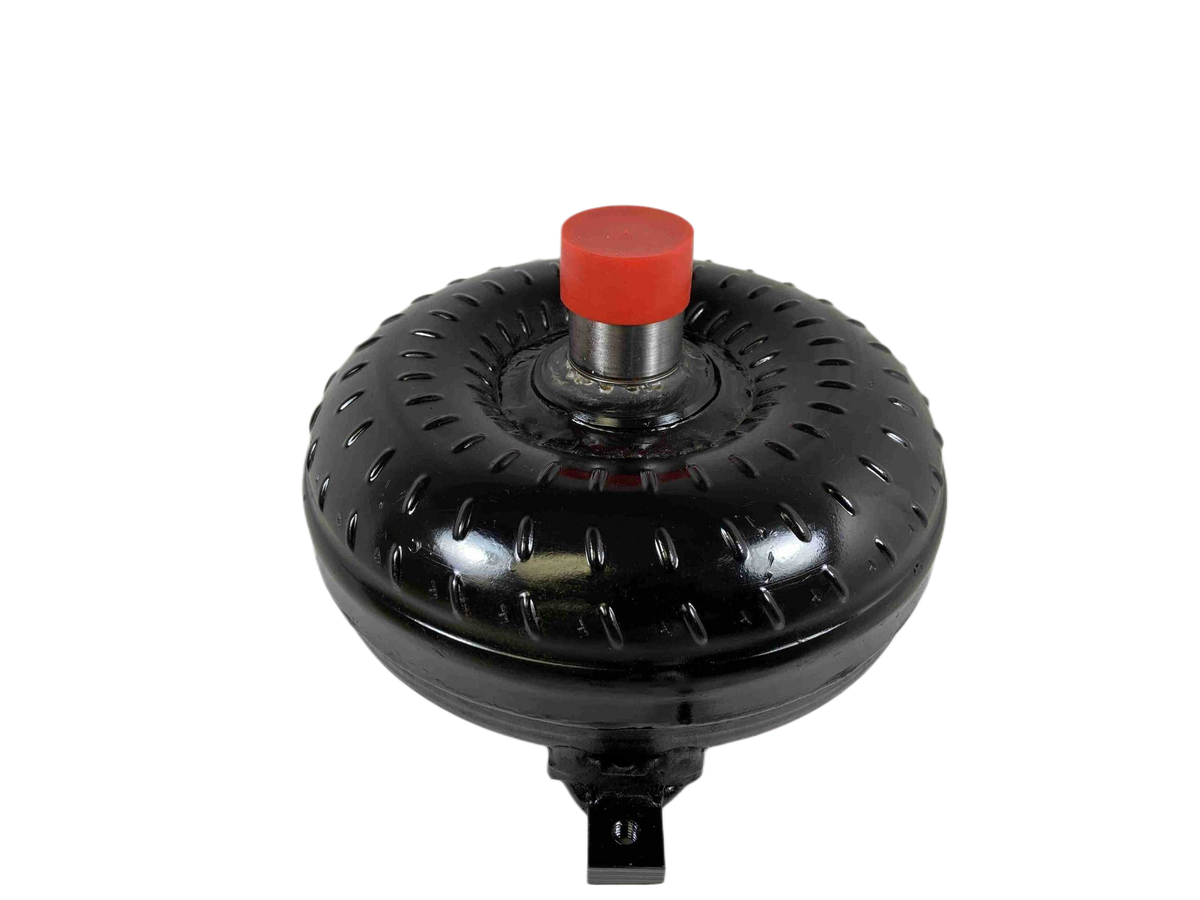

PowerGlide Mid Plate Pilot Out Law 32-3,500 RPM GM Racing Torque Converter Part Number 34733

GM Chevy PowerGlide 17 Spline Mid Plate Pilot Torque Converter - Race Series

Elevate your drag performance with our Super Lightweight Out Law Racing Series Torque Converter, designed specifically for chopped cams and high-performance applications. Built with precision CNC machining and high-quality materials, this converter delivers aggressive shifts and exceptional driving characteristics, making it ideal for vehicles utilizing Nitrous Oxide, Turbochargers, or Superchargers.

Technical Specifications

• Transmission Type: PowerGlide (Mid Plate Pilot)
• Series/Application: Out Law Racing Series / GM Chevy PowerGlide
• Part Number: 34733
• Stall Range: 3,200 - 3,500 RPM
• Impeller Hub: Precision CNC Machined Hardened Chrome Moley
• Turbine Hub Splines: 17 Spline Turbine Hub
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: 10.75 inches
• Crank Pilot Size: 1.703 inch Extended 1/4 inch
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Only)

Engineering & Build Quality

Every component of this converter is built for extreme duty cycles and high-pressure operation, ensuring reliability when you need it most.

• Precision CNC Machined components throughout the unit
• Torrington Style Incased Bearings provide smooth, durable operation
• Modified Extreme Duty Stator for aggressive band control
• Anti-Balloon Plates included in design

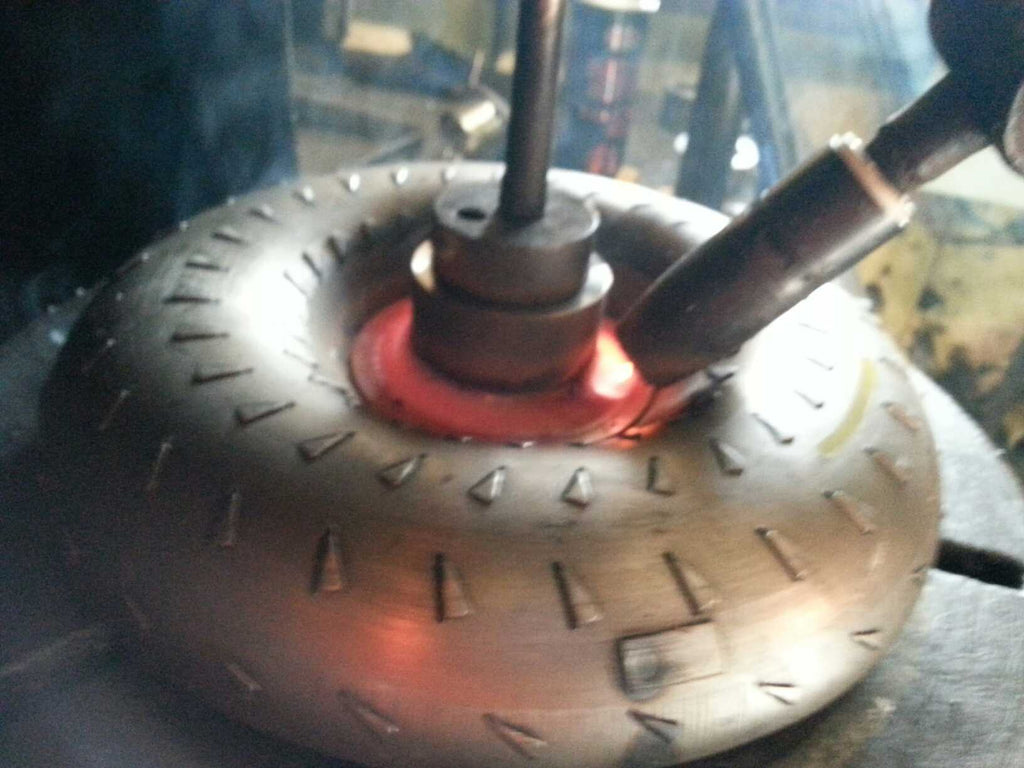

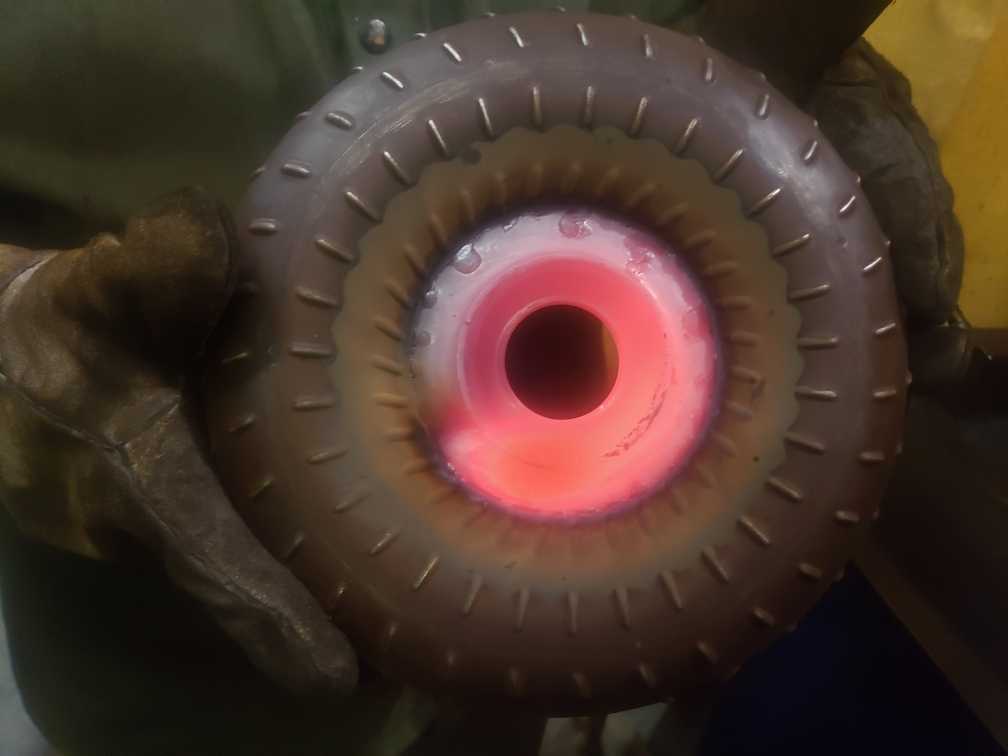

• Whole Back Cover Quenched and Hardened for maximum durability
• Pump & Turbine Fins are fully Welded or Furnace-Brazed

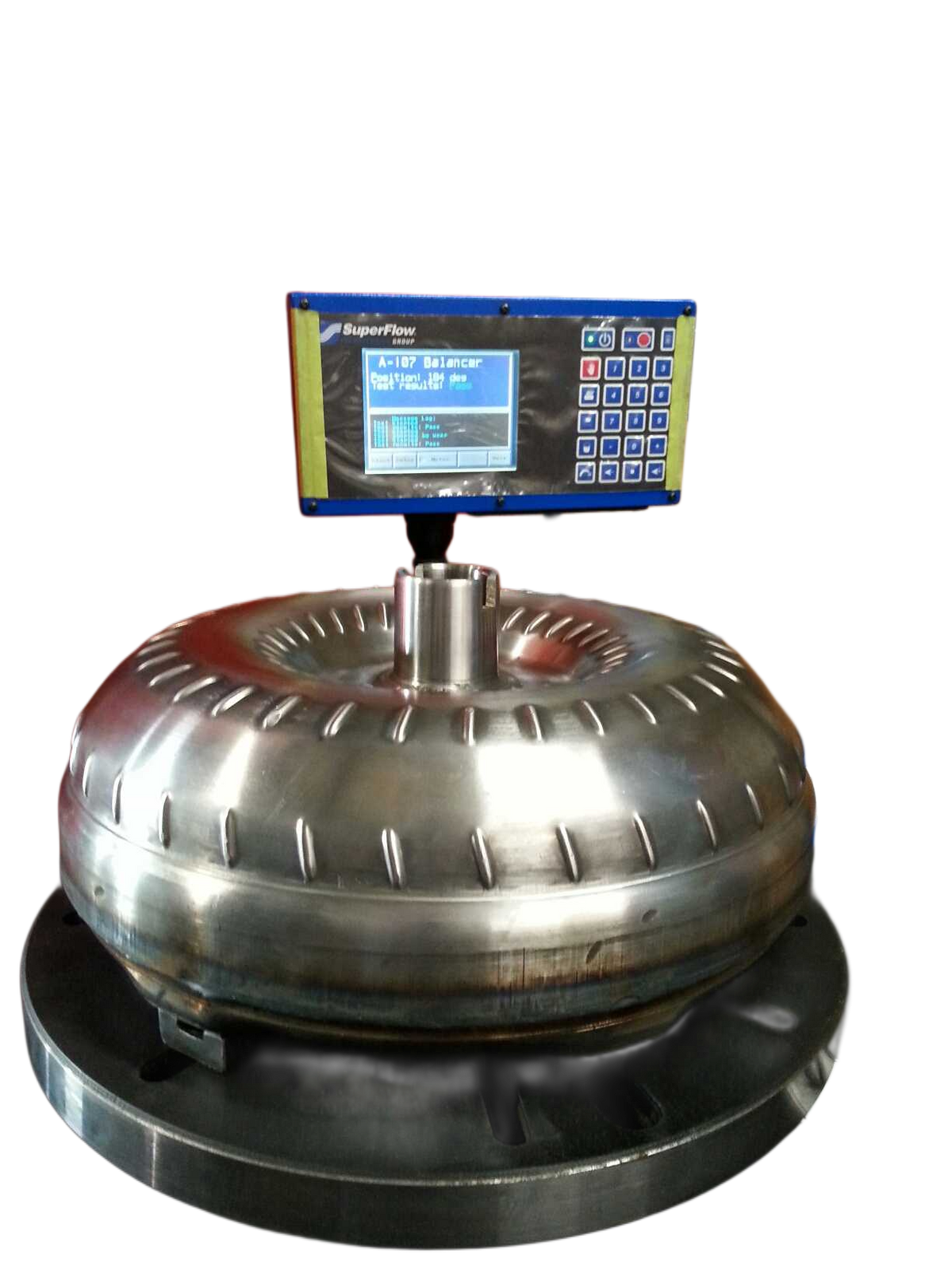

• Digitally Balanced and Leak/Pressure Tested upon completion

Performance Enhancements

This high-performance unit is optimized for maximum power transfer and control under extreme acceleration.

• Ideal pairing for Choppy Cams and Lightweight Drag Builds
• Excellent synergy with Nitrous, Turbo, or Supercharged setups

Installation Guidance

• Use Type F transmission fluid for optimal performance.
• Always incorporate an additional Transmission Cooler when installing this unit.
• Blue Loctite application is recommended for proper assembly and hold.

Important Considerations

• Advertised stall ranges are based on a specific vehicle setup and may vary greatly depending on your application.
• For precise stall range information or pairing advice, please contact our specialists at (888) 267-7464.

Building High Performance & Racing Converters Since 1970. Veteran Owned and Family Run. Made in the USA.
