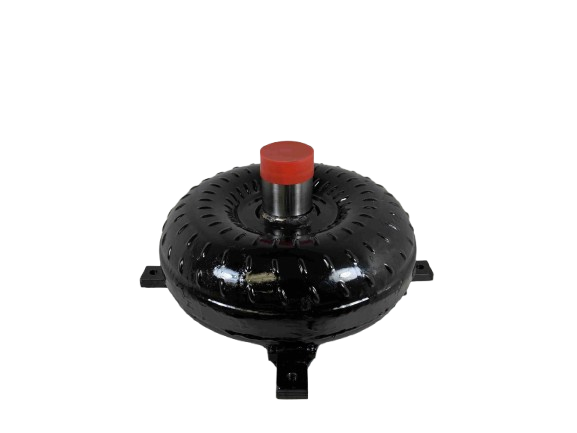

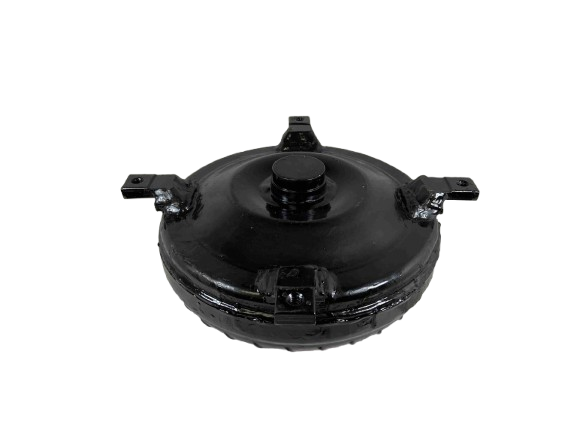

FMX Street Bandit Series 42-5,000 RPM Ford Torque Converter Part Number 21197

Ford FMX Windsor Motors Street Bandit Series Torque Converter - Part #21197

Engineered for riders seeking superior performance without sacrificing drivability, this Super Lightweight Torque Converter in the Street Bandit Series provides unmatched reliability and responsive shift characteristics. Built with attention to detail and precision CNC machining, this converter is the perfect match for choppy cam setups and high-revving lightweight vehicles looking to maximize performance on the street.

Key Product Specifications

• Part Number: 21197
• Series: Street Bandit Series - Super Lightweight
• Stall Range: 4,200 – 5,000 RPM
• Core Diameter: 9.6 inch Core
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub: 29 Spline
• Impeller Material: Hardened Chrome Moley Impeller Hub
• Stator Construction: Modified Extreme Duty Stator
• Crank Pilot Diameter: 1.375 inch Precision CNC Machined
• Bolt Size Compatibility: 3/8 X 16 TPI (Grade 8 Hardware Only)
• Build Height: Built to 5 7/8 inch Tall
• Construction Detail: Fins are 4 corner Tac Welded or Furnace-Brazed
• Testing & Quality: Digitally Balanced, Leak & Pressure Tested, undergoes Quality Inspections at Every Step
• Flywheel Compatibility: Designed to pair with a 164 Tooth Flywheel

Installation Guidance

• Use Type F transmission fluid for optimal performance and compatibility.
• Apply Blue Loctite to ensure secure installation of fasteners.

Important Notes & Disclaimers

• Stall range performance is dependent on the specific vehicle's setup and may vary. Please contact us for detailed consultation before installation.
• For setups utilizing power adders such as Nitrous Oxide, Turbochargers, or Superchargers, we highly recommend upgrading to our "Out Law Racing Series" Torque Converter for proper handling of extreme power levels.

Proudly MADE IN THE USA and built by a Veteran Owned and Family run company since 1970, we are dedicated to building high-performance converters for your specific application.
