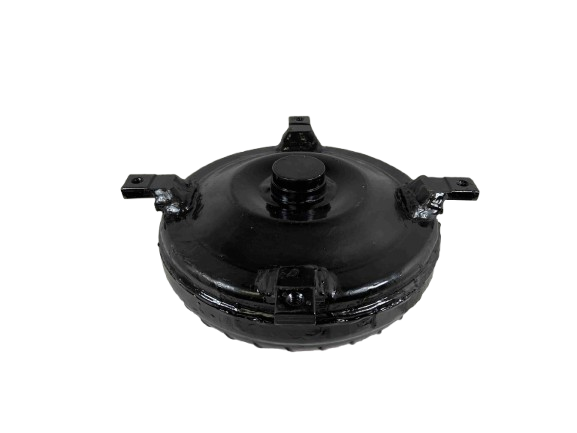

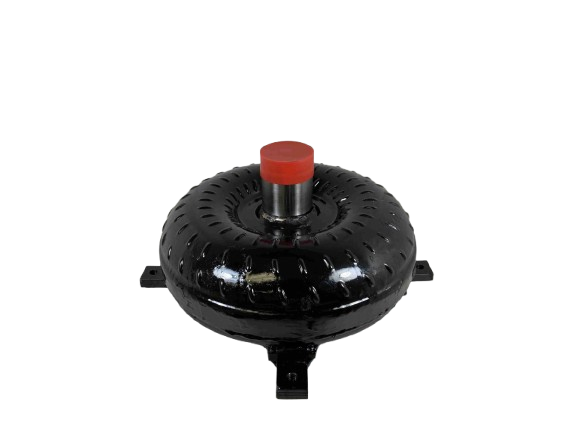

FMX Street Bandit Series 35-4,200 RPM Ford Torque Converter Part Number 21196

Ford FMX Street Bandit Series Torque Converter - Part Number 21196

Engineered for demanding applications, the WINDSOR MOTORS Small Pilot Torque Converter in the Street Bandit Series offers unmatched durability and precise driving characteristics. Built with a 9.6-inch core, this heavy-duty conversion component is ideal for chopping cams and lightweight vehicles requiring reliable performance under pressure. Constructed in the USA, our commitment to quality is evident in every CNC-machined detail.

Key Product Specifications

• Part Number: 21196
• Series: Street Bandit Series
• Stall Range: 3,500 - 4,200 RPM
• Core Size: 9.6 inch
• Bolt Circle Diameter: 11 7/16 inches
• Pilot Shaft Size: 1.375 inch Crank Pilot
• Impeller Hub: Hardened Chrome Moley, Precision CNC Machined
• Stator: Modified Extreme Duty Stator
• Bearings: Torrington Style Incased Bearings
• Impeller/Stator Detail: No Anti-Balloon Plates; Fins are 4 corner Tac Welded or Furnace-Brazed
• Flywheel Compatibility: Designed for 164 Tooth Flywheels

Installation & Performance Notes

• All advertised stall ranges are based on specific vehicle setups and will vary depending on your application.
• For optimal performance, use Type F transmission fluid and consider installing a transmission cooler for maximum heat dissipation.
• Use Blue Loctite on appropriate fasteners to ensure a secure installation.

Quality Assurance

• Leak and Pressure Tested for absolute reliability.
• Digitally Balanced components ensure smooth operation.
• Precision CNC Machining used on all critical parts, including the impeller hub and stator.
• Veteran-owned and family-run company building high performance since 1970.
