FMX Street Bandit Series 22-2,800 RPM Ford Torque Converter Part Number 21172

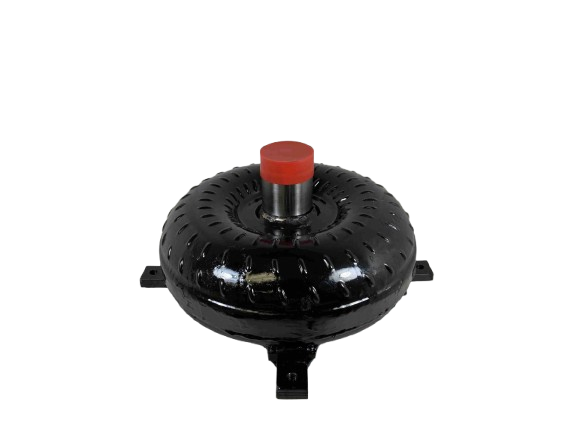

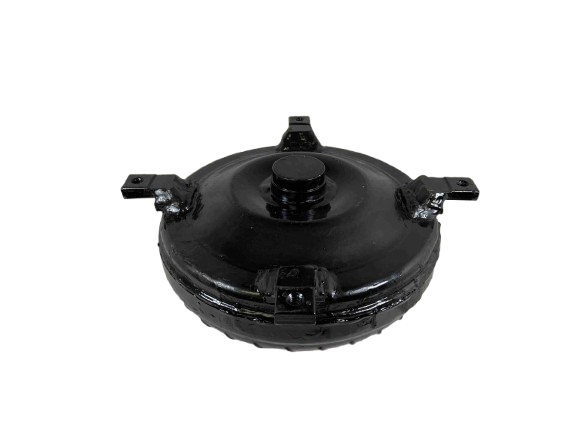

Ford FMX Street Bandit Series Torque Converter - Part #21172

Engineered for enthusiasts running chopped cams and lightweight builds, this Super Lightweight Street Bandit Series Torque Converter is the perfect match for your performance application. Built in the USA by veteran-owned Windsor Motors, this precision CNC-machined unit provides robust drive capability while offering exceptional driving characteristics and durability for demanding street use.

Product Specifications

• Part Number: 21172
• Series: Street Bandit Series (Small Pilot)
• Application Fitment: Ford FMX Applications
• Stall Range: 2,200 - 2,800 RPM
• Core Diameter: 9.6 inch Core
• Bolt Circle Diameter: 11 7/16 inches

Advanced Construction Details

• Turbine Hub: 29 Spline Turbine Hub
• Impeller Hub: Hardened Chrome Moley Impeller Hub
• Crank Pilot: 1.375 inch Crank Pilot
• Internal Quality: Torrington Style Incased Bearings and Modified Extreme Duty Stator
• Construction: Precision CNC Machined components ensure maximum fitment and longevity.
• Wing Detail: Fins are 4 corner Tac Welded or Furnace-Brazed for strength.

Build Quality & Testing

• Leak and Pressure Tested for reliability.
• Digitally Balanced to ensure smooth operation upon installation.
• Undergoes Quality Inspections at Every Step of the manufacturing process.

Installation & Maintenance Information

• Use Type F transmission fluid for optimal performance.
• Apply Blue Loctite to ensure maximum secure assembly of critical components.

Important Considerations

• All advertised stall ranges are dependent upon the specific vehicle's setup.
• The operating range will vary based on your application and performance tuning.
• Ensure proper installation hardware: Bolt size must be 3/8 X 16 TPI (Grade 8 bolts required).
• For vehicles utilizing power adders like Nitrous, Turbochargers, or Superchargers, we recommend upgrading to our "Outlaw Racing Series" converter for maximum performance potential.

Building High Performance & Racing Converters Since 1970! Made in the USA. Contact us at (888) 267-7464 with any technical questions.
