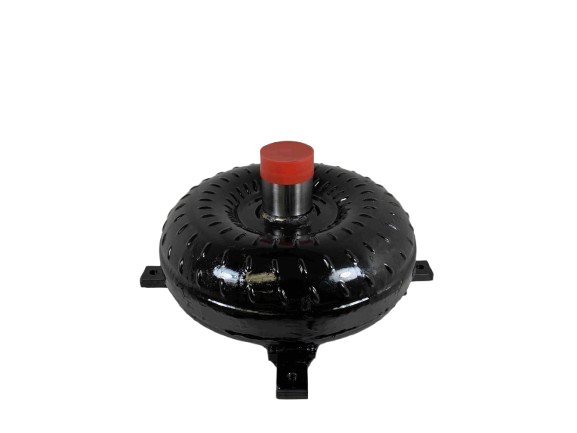

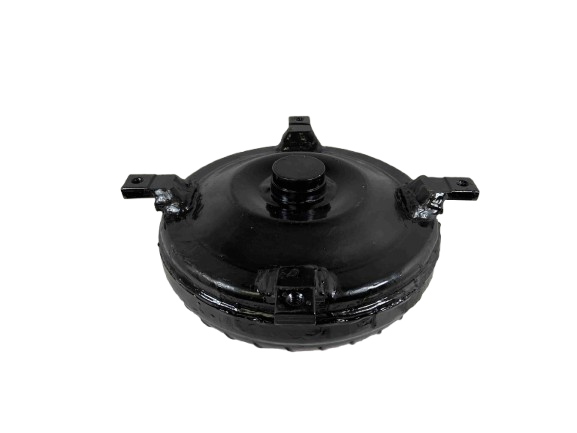

FMX FE Out Law Series 42-5,000 RPM Ford Racing Torque Converter Part Number 21697

Ford FMX FE Motors - BIG Pilot Torque Converter (Part #21697)

Engineered for extreme performance, this Out Law Racing Series torque converter is specifically matched to Ford FMX FE Motors and Big Bellhousings. Featuring a Super Lightweight design and precision-machined components, this converter provides exceptional driving characteristics necessary for choppy cams and high-performance setups. Achieve optimal power transfer whether you are running Nitrous, Turbochargers, or handling high-stress drag applications.

This converter is built to withstand the harshest racing environments, providing reliable performance from the moment it's installed. It is leak and pressure tested before shipment, ensuring peace of mind when building your high-performance drivetrain.

Key Technical Specifications

• Part Number: 21697
• Series: Out Law Racing Series (Big Pilot)
• Transmission Type Compatibility: Ford FMX FE Motors
• Stall Range: 2,200 - 2,800 RPM
• Core Diameter: 9.6 inches
• Pilot Diameter: 1.848 inch Crank Pilot
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub Splines: 29 Spline

Advanced Construction & Features

• Precision CNC Machined Pump and Turbine Fins
• Modified Extreme Duty Stator Design
• Torrington Style Incased Bearings for durability
• Whole Back Cover Quenched and Hardened
• Hardened Chrome Moley Impeller Hub
• Includes Anti-Balloon Plates (Precision CNC Machined)
• All Pump & Turbine Fins are Welded or Furnace-Brazed for maximum integrity
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Required)

Installation & Performance Notes

• All advertised stall ranges are dependent upon the specific vehicle's setup and may vary.
• Use Old School Type F Transmission Fluid for the most optimal results in your application.
• Always pair this converter with an additional Transmission Cooler for extreme duty use.
• Use Blue Loctite on threads to ensure lasting assembly integrity.

Product Details

• Built in the USA and supported by a Veteran-Owned, Family Run company.
• Available for detailed consultation on No Prep Racing Converters.
