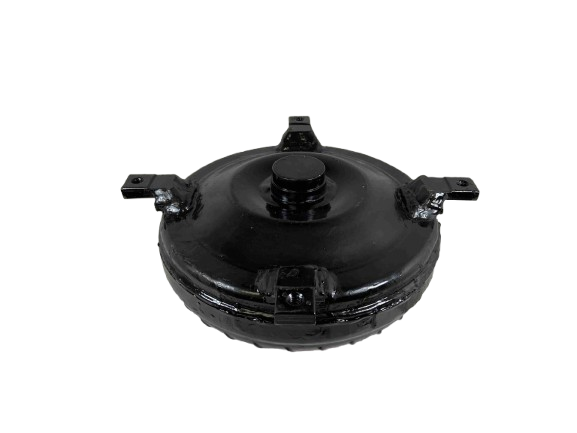

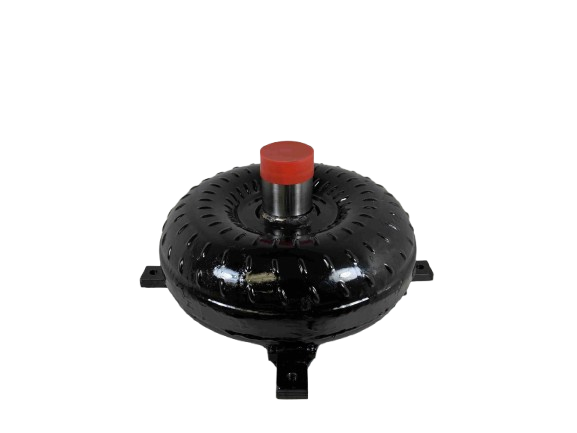

FMX FE Out Law Series 22-2,800 RPM Ford Racing Torque Converter Part Number 21632

Ford FMX FE Motors BIG Pilot Torque Converter - Out Law Racing Series

Achieve optimal performance with this precision-machined, Super Lightweight Torque Converter designed for demanding racing applications. Engineered to handle aggressive builds, this converter provides superb driving characteristics and is ready to match your high-performance powertrain setup. Built for the Big Bellhousing, this unit ensures durability and excellent power transfer when paired with appropriate components.

Key Features & Technical Specifications

• Torque Converter Type: Big Pilot, Super Lightweight
• Series/Application: Out Law Racing Series, Choppy Cams & Lightweight Vehicles
• Part Number: 21632
• Stall Range: 2,200 - 2,800 RPM
• Crank Pilot Diameter: 1.848 inch (Precision CNC Machined)
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub: 29 Spline, Precision CNC Machined
• Impeller Hub: Hardened Chrome Moley
• Bearings: Torrington Style Incased Bearings
• Stator: Modified Extreme Duty
• Cover/Body: Whole Back Cover Quenched and Hardened, Leak & Pressure Tested
• Fin Construction: ALL Pump & Turbine Fins are Welded or Furnace-Brazed
• Assembly: Anti-Balloon Plates included (Precision CNC Machined)

Installation & Performance Notes

• All advertised stall ranges are based on a specific vehicle's setup and will vary depending on your application.
• For best results, use Old School Type F Transmission Fluid and always incorporate a transmission cooler.
• Use Blue Loctite during assembly.

Application Notes

• Ideal for pairing with the 164 Tooth Flywheel.
• Recommended usage includes Nitrous Oxide, Turbocharger setups, Superchargers, and Trans-Breaks.
• High quality inspections are conducted throughout every step of manufacturing.
