FMX FE 1.848 Pilot Street Bandit Series 22-2,800 RPM Ford Torque Converter Part Number 21272

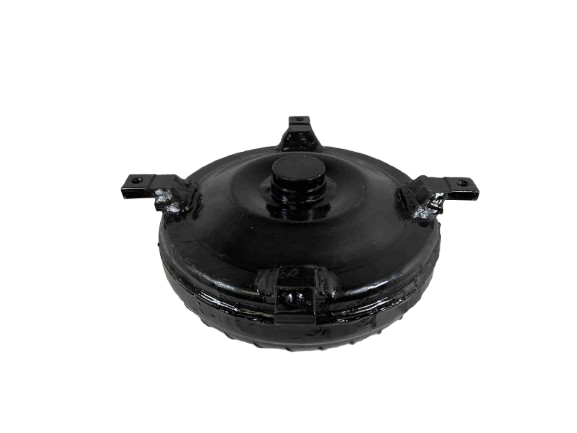

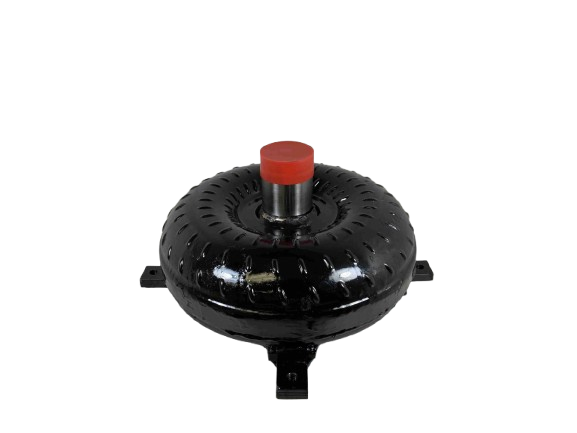

Ford FMX FE Motors BIG Pilot Torque Converter - Street Bandit Series (P/N 21272)

Engineered for demanding performance applications, this Street Bandit Series torque converter is built to match the power of your build. Specifically designed for Ford FMX FE Motors, this high-quality, precision-machined unit ensures optimal power transfer and reliable operation across aggressive drives.

If you are looking for a durable, high-performance pairing solution ideal for choppy cams or lightweight vehicles, this torque converter delivers dependable performance combined with extreme durability. Each unit undergoes rigorous quality inspections to guarantee peak operational readiness.

Key Specifications

• Series: Street Bandit Series
• Part Number: 21272
• Transmission Type Compatibility: Ford FMX FE Motors (BIG Pilot)
• Stall Range: 2,200 - 2,880 RPM
• Core Diameter: 9.6 inches
• Crank Pilot Diameter: 1.848 inch (Precision CNC Machined)
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub Splines: 29 Spline Turbine Hub
• Stator Construction: Modified Extreme Duty Stator
• Impeller Details: Hardened Chrome Moley Impeller Hub, 3/8 X 16 TPI (Grade 8 Only), NO Anti-Balloon Plates
• Bearings: Torrington Style Incased Bearings
• Construction Height: Built to 5 7/8 inch Tall (Precision CNC Machined)
• Testing: Leak & Pressure Tested, Digitally Balanced, Quality Controlled

Application Details

• Optimal Setup: Recommended use with a 164 Tooth Flywheel.
• Construction Standard: Impeller features are Tac Welded or Furnace-Brazed at the 4 corners.

Expert Advice

• For best performance, utilize Type F transmission fluid.
• Blue Loctite recommended during assembly.

Important Notes

• All advertised stall ranges are based on a specific vehicle setup and may vary depending on your application.
• For detailed consultation regarding stall ranges or product compatibility, please contact our technical support line at (888) 267-7464.

— Proudly MADE IN THE USA —
