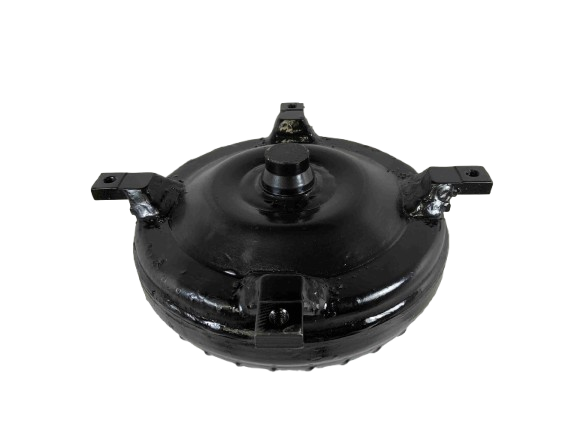

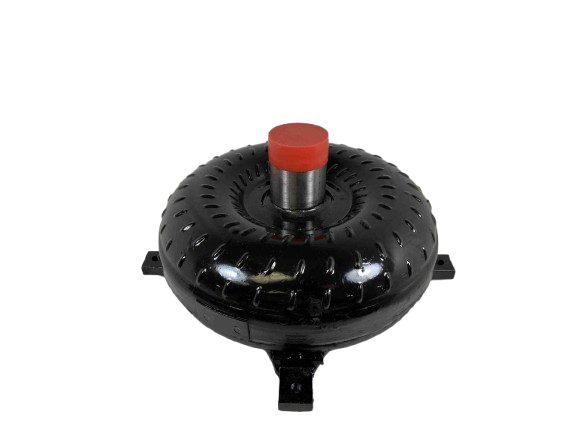

C6 Street Bandit Series 28-3,200 RPM Ford Torque Converter Part Number 26063

Ford C6 WINDSOR MOTORS Small Pilot Street Bandit Series Torque Converter

Engineered for high-performance driving and dependable street use, this Super Lightweight Torque Converter is the perfect match for your application. Built with precision-machined components and reinforced construction, it delivers exceptional driving characteristics while providing a stable stall range of 2,800 to 3,200 RPM. Experience the difference quality craftsmanship makes with our Torrington Style Incased Bearings and digitally balanced assembly.

This converter is designed to handle demanding conditions, making it ideal for choppy cams and lightweight vehicles that require immediate reliability without sacrificing performance. Every unit undergoes stringent quality inspections at every step, ensuring peak operational readiness.

Key Specifications

• Series: Street Bandit Series
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch
• Bolt Circle: 11 7/16 inches
• Turbine Hub Splines: 31
• Impeller Hub: Hardened Chrome Moley
• Stator Detail: Modified Extreme Duty, accommodating 164 Tooth Flywheel
• Pilot Diameter: 1.375 inch Crank Pilot
• Bolt Size: 3/8 X 16 TPI (Grade 8 bolts required)
• Design Features: No Anti-Balloon Plates; Fins are 4 corner Tac Welded or Furnace-Brazed
• Testing: Leak and Pressure Tested, Digitally Balanced

Installation & Performance Details

• Use Old School Type F Transmission Fluid for optimal performance.
• Always use an additional transmission cooler to manage heat buildup.
• Blue Loctite recommended for assembly integrity.

Important Considerations

• All advertised stall ranges are dependent on a specific vehicle's setup and may vary based on your application.
• Contact us directly for detailed installation advice or to discuss our No Prep Racing Converters.

Trusted since 1970, our company is dedicated to building high-performance and racing converters. Veteran owned and family run.
