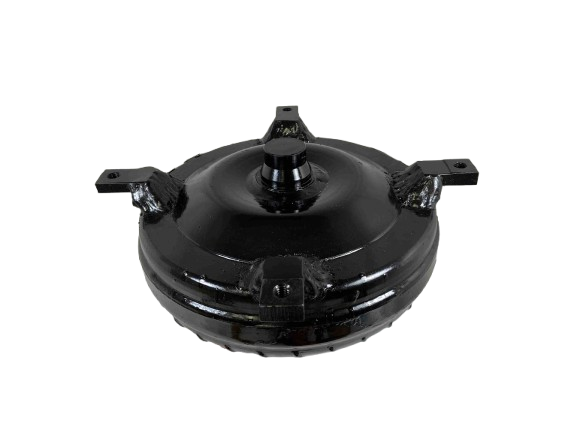

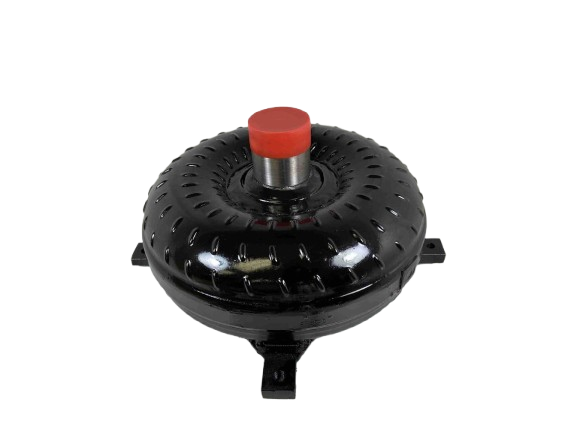

C6 Out Law Series 22-2,800 RPM Ford Racing Torque Converter Part Number 26662

Ford C6 Windsor Motors Small Pilot Torque Converter - Part #26662

Elevate your transmission setup with this professional-grade Small Pilot Torque Converter, engineered for high-performance racing applications. Constructed from durable materials and meticulously CNC machined, this converter provides the perfect balance of strength and responsiveness needed for choppy cams, lightweight vehicles, nitrous setups, and aggressive transmissions.

Ideal for serious racers seeking reliability under extreme conditions, this unit offers excellent driving characteristics and is ready to handle the stresses of high horsepower applications. Manufactured in the USA with veteran ownership backing our commitment to quality.

Key Specifications

• Transmission Type: Small Pilot Converter
• Series: Out Law Racing Series
• Part Number: 26662
• Stall Range: 2,200 - 2,800 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub Splines: 31 Spline
• Crank Pilot Diameter: 1.375 inch

Construction & Performance Details

• Precision CNC Machined components for superior fitment and function.
• Hardened Chrome Moley Impeller Hub ensures maximum durability.
• Torrington Style Incased Bearings provide smooth, reliable operation.
• Modified Extreme Duty Stator optimized for aggressive power transfer.
• Anti-Balloon Plates installed for enhanced protection during operation.
• Whole Back Cover is quenched and hardened, offering ultimate structural integrity.
• All pump and turbine fins are furnace-brazed or welded for leak resistance.
• Digitally balanced and quality inspected at every stage of production.

Installation & Usage Guide

• Use Old School Type F Transmission Fluid for optimal performance.
• Always pair with an additional transmission cooler to manage operating temperatures effectively.
• Secure all components using Blue Loctite for maximum joint integrity.

Important Notes

• All advertised stall ranges are dependent upon the specific vehicle setup and application.
• Please contact us at (888) 267-7464 for guidance tailored to your vehicle's setup.

Building high-performance and racing converters since 1970. Ask about our No Prep Racing Converter options today!
