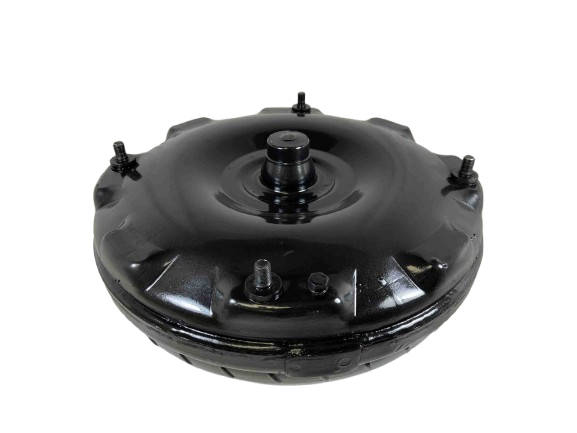

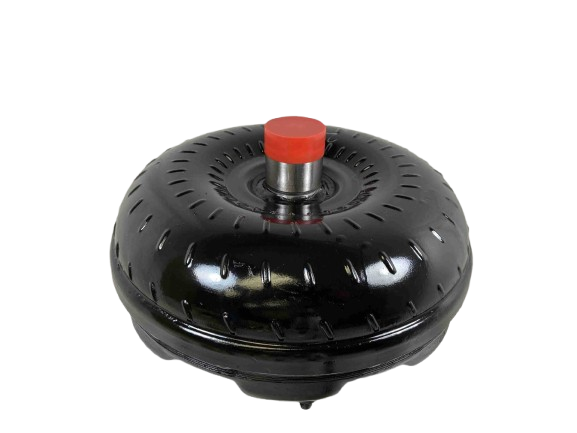

C6 Night Stalker Series 22-2,800 RPM Ford Torque Converter Part Number 26062

Ford C6 Windsor Motors Small Pilot Torque Converter - Night Stalker Series

Enhance your powertrain with this high-quality, heavy-duty torque converter designed specifically for Ford C6 applications. Precision CNC machined and engineered for maximum performance and durability, this unit is built to handle aggressive driving conditions while ensuring smooth power transfer. If your current converter is pulling the motor down, this unit offers increased stall performance.

Technical Specifications

• Transmission Type: Ford C6
• Series: Night Stalker Series
• Part Number: 26062
• Stall Range: 2,200 - 2,800 RPM
• Torque Converter Diameter: 12-inch Core
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub Splines: 31 Spline

Key Components & Construction

• Impeller Hub: Hardened Chrome Moley
• Bearings: Torrington Style Incased Bearings
• Stator: Modified Extreme Duty
• Crank Pilot Size: 1.375 inch
• Pilot Nut Size: 3/8 X 24 TPI (Grade 8 hardware required)
• Anti-Balloon Plates: No
• Fins: 4 corner Tac Welded or Furnace-Brazed
• Quality Control: Leak & Pressure Tested, Digitally Balanced, Quality Inspections at Every Step

Installation Notes

• For optimal operation, use Old School Type F Transmission Fluid.
• Always pair with an appropriate transmission cooler for sustained high-performance use.
• Apply Blue Loctite during installation to ensure longevity and proper fitment of components.

Important Considerations

• All advertised stall ranges are based on specific vehicle setups; actual performance may vary depending on your installation.
• If you have upgraded major powertrain components (intake, heads, exhaust, cam, or gearing), we recommend considering our Street Bandit Series converter.
• For extreme power adders (NOS, Turbocharger, Supercharger), upgrade to our Out Law Racing Series for dependable performance.

Building High Performance & Racing Converters Since 1970. Veteran Owned and Family Run.
