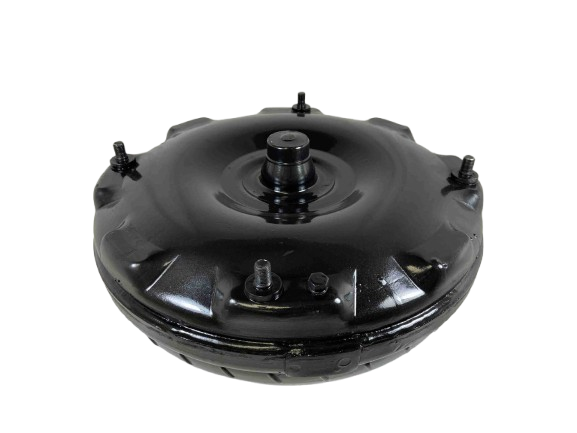

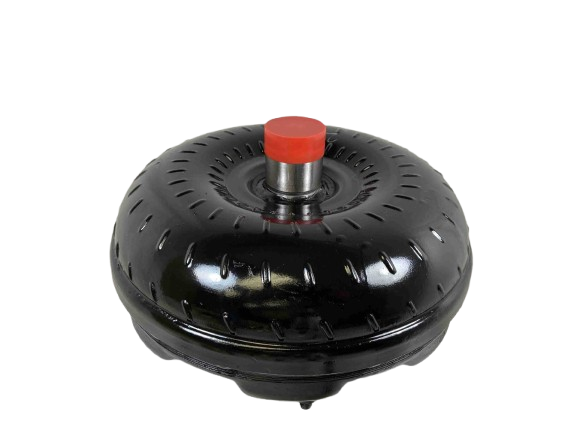

C6 Night Stalker Series 16-2,200 RPM Ford Torque Converter Part Number 26061

Night Stalker Series Torque Converter - Ford C6, Part #26061

Engineered for extreme duty applications, this Night Stalker Series torque converter is built to provide superior performance and reliability for your Ford C6 application. Featuring high-quality materials and precision manufacturing, this converter ensures optimal power transfer and a stable stall characteristic for aggressive driving conditions. If your current setup requires greater stall capacity, this unit is designed to handle the increased demands.

Key Product Specifications

• Torque Converter Series: Night Stalker Series
• Part Number: 26061
• Application Compatibility: Ford C6 (Fits Big Bellhousing)
• Stall Range: 1,600 - 2,200 RPM Stall Added
• Impeller Core Diameter: 12 inches
• Turbine Hub Splines: 31 Spline Turbine Hub

Construction and Build Quality

This torque converter undergoes stringent manufacturing processes to guarantee lasting performance under high pressure. Each component is precision CNC machined and quality-inspected at every step.

• Stator Details: Modified Extreme Duty Stator with 1.375 inch Crank Pilot
• Impeller Construction: Hardened Chrome Moley Impeller Hub; No Anti-Balloon Plates
• Bearing System: Torrington Style Incased Bearings for maximum durability
• Physical Dimensions: Bolt Circle is 11 7/16 inches; Built to 5 7/8 inch Tall
• Flywheel Compatibility: Designed for use with 164 Tooth Flywheel
• Manufacturing Detail: Fins are Tac Welded or Furnace-Brazed at 4 corners
• Quality Assurance: Leak & Pressure Tested, Digitally Balanced Finish

Installation and Performance Guidance

To achieve maximum efficiency and longevity with your installation, consider the following maintenance and setup recommendations.

• Use Old School Type F transmission fluid for best operating results.
• Always use an additional Transmission Cooler during high-performance runs.
• Apply Blue Loctite to critical fittings where appropriate.

Important Application Notes

• All advertised stall ranges are based on a specific vehicle's setup and actual performance will vary depending on your individual application.
• For expert advice regarding installation, stall tuning, or high-performance matching, please contact us at (888) 267-7464.
• If your application includes heavy modifications (such as intake, heads, exhaust, or gearing upgrades), we recommend considering a Street Bandit Series torque converter.
• For extreme power applications involving Nitrous Oxide, Turbochargers, or Superchargers, we suggest upgrading to an Outlaw Racing Series converter.
