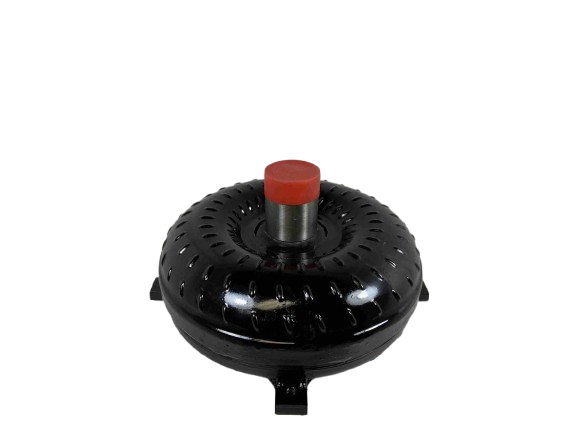

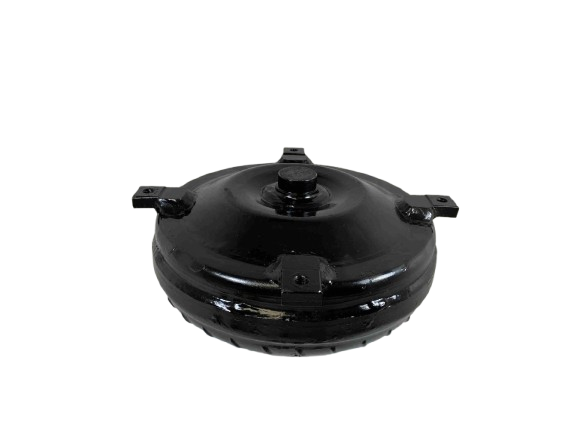

C4 26 Spline Street Bandit Series 35-4,200 RPM Ford Torque Converter Part Number 25114

Ford C4 Street Bandit Series Torque Converter - Part #25114

Achieve reliable power transfer with this precision-machined torque converter, designed specifically for demanding applications and light duty vehicles. Part of the renowned Street Bandit Series, this converter provides excellent driving characteristics while handling challenging engine setups, including choppy cams and lightweight builds. Manufactured in the USA to rigorous quality standards.

Product Specifications

• Part Number: 25114
• Series: Street Bandit Series
• Transmission Compatibility: Ford C4
• Stall Range: 3,500 - 4,200 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.5 inches
• Turbine Hub Detail: 26 Spline, Precision CNC Machined
• Impeller Hub Detail: Hardened Chrome Moley, Tailored for Small Bellhousing
• Stator Detail: Modified Extreme Duty Stator
• Crank Pilot Diameter: 1.375 inch
• Bolt Size: 3/8 X 16 TPI (Grade 8 Bolts Required)
• Design Feature: No Anti-Balloon Plates

Construction & Quality Assurance

Built for durability and performance, this torque converter undergoes stringent quality control to ensure optimal operation:

• Torrington Style Incased Bearings
• Precision CNC Machining on Critical Components
• Digitally Balanced for Smooth Operation
• Fully Leak & Pressure Tested
• Fins are 4 corner Tac Welded or Furnace-Brazed

Installation Guidance

• For best results, consider using Old School Type F transmission fluid.
• Always pair with an additional Transmission Cooler for demanding drives.
• Use Blue Loctite on fasteners to maintain integrity.

Important Notes

• All advertised stall ranges are dependent on the specific vehicle setup. Actual values may vary depending on your application.
• For optimal performance mapping to your vehicle, please contact our specialists at (888) 267-7464.
• Inquire about our No Prep Racing Converters for specialized high-performance builds.

Building High Performance & Racing Converters Since 1970. Veteran Owned and Family Run.
