C4 26 Spline Street Bandit Series 32-3,500 RPM Ford Torque Converter Part Number 25133

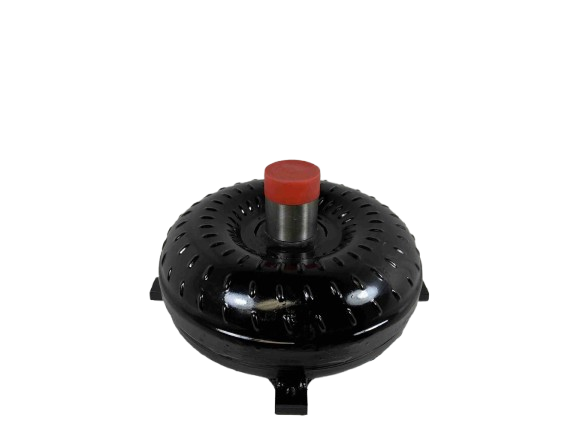

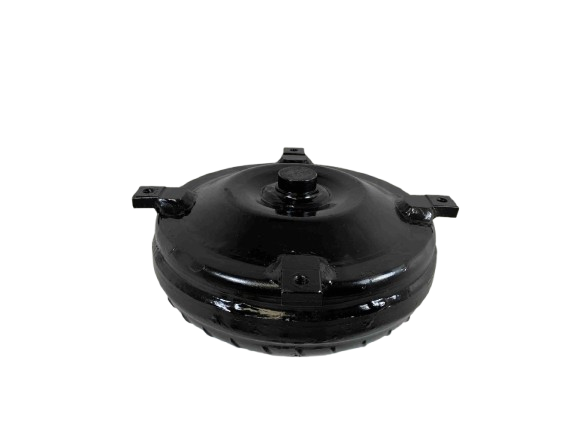

STREET BANDIT SERIES Torque Converter - Ford C4, Part No. 25133

Achieve unmatched driving characteristics with our Super Lightweight Street Bandit Series Torque Converter, specifically matched for your Ford C4 application. Precision engineered and meticulously assembled in the USA, this converter provides flawless performance for choppy cam setups and lightweight vehicles that demand reliability under pressure. When paired with the correct drivetrain components, this converter offers superior durability and driveability.

Key Performance Specifications

• Part Number: 25133
• Series Match: Street Bandit Series
• Application Compatibility: Ford C4, Small Bellhousing Match
• Stall Range: 3,200 - 3,500 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.5 inches

Advanced Construction Details

This torque converter is built with extreme duty components and undergoes rigorous quality control at every stage, ensuring maximum longevity and performance.

• Turbine Hub: 26 Spline, Precision CNC Machined
• Impeller Hub: Hardened Chrome Moley, Digitally Balanced
• Bearings: Torrington Style Incased Bearings
• Stator: Modified Extreme Duty Design
• Crank Pilot Size: 1.375 inch, Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Recommended)
• Assembly: 4 Corner Tac Welded or Furnace-Brazed Fins
• Testing: Leak & Pressure Tested, Quality Inspected at Every Stage

Application Guidelines

• For optimal installation, pair with a 157 Tooth Flywheel.

Installation Advice

• Use Old School Type F Transmission Fluid for best results.
• Always include an additional transmission cooler for added thermal management.
• Apply Blue Loctite to ensure all connections remain secure.

Important Notes

• Advertised stall ranges are based on a specific vehicle setup and will vary depending on your application. Please contact us for personalized advice regarding performance estimates.
• Interested in maximizing reliability? Inquire about our No Prep Racing Converters selection.

For further technical questions or to discuss your specific build setup, please contact us directly at (888) 267-7464. We have been building high performance and racing converters since 1970!
