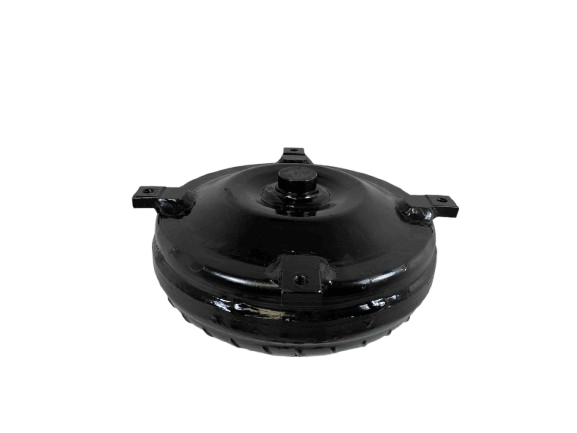

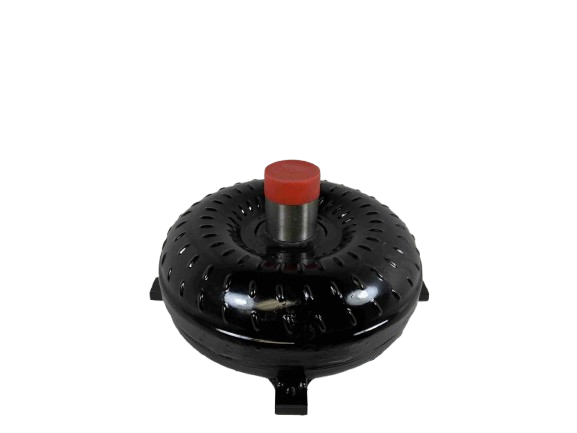

C4 26 Spline Street Bandit Series 28-3,200 RPM Ford Torque Converter Part Number 25113

Street Bandit Series Super Lightweight Torque Converter - Part #25113

Engineered for enthusiasts seeking optimal power transfer and smooth driveability, this Super Lightweight Torque Converter from the Street Bandit Series is built to withstand high-performance applications while providing superior driving characteristics. Precision CNC machined and quality inspected at every stage, this converter ensures reliable performance for your build.

Product Specifications

• Part Number: 25113
• Series: Street Bandit Series (Super Lightweight)
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch
• Bolt Circle: 10.5 inches
• Turbine Hub Splines: 26 Spline Precision Turbine Hub
• Impeller Hub: Hardened Chrome Moley, Precision CNC Machined
• Crank Pilot Diameter: 1.375 inch
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Recommended)
• Design Features: Modified Extreme Duty Stator, No Anti-Balloon Plates, 4 Corner Tac Welded/Furnace-Brazed Fins
• Quality Assurance: Leak & Pressure Tested, Digitally Balanced, Quality Inspections at Every Step

Installation Notes

• Designed for use with a Small Bellhousing and requires a 157 Tooth Flywheel.

Building & Tuning Considerations

• All advertised stall ranges are based on a specific vehicle setup and will vary depending on your installation. Please contact our team for customized advice.

Performance Tips

• Utilize Old School Type F Transmission Fluid for best performance results.
• Always pair installation with a transmission cooler for sustained high-performance builds.
• Apply Blue Loctite during assembly to ensure secure components.

If you are building high-performance or racing applications, we offer specialized No Prep Racing Converters. Building High Performance & Racing Converters Since 1970! Veteran Owned and Family Run.
