C4 26 Spline Out Law Series 35-4,200 RPM Ford Racing Torque Converter Part Number 25744

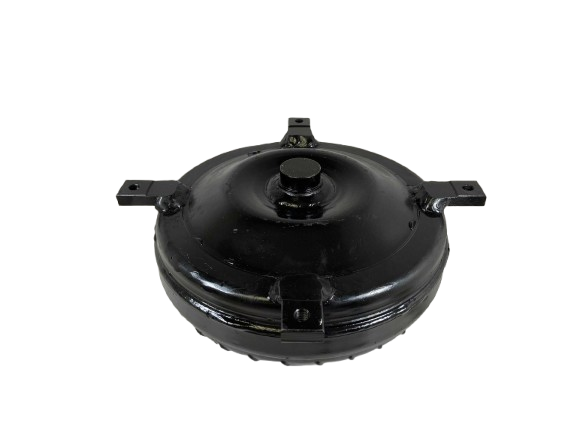

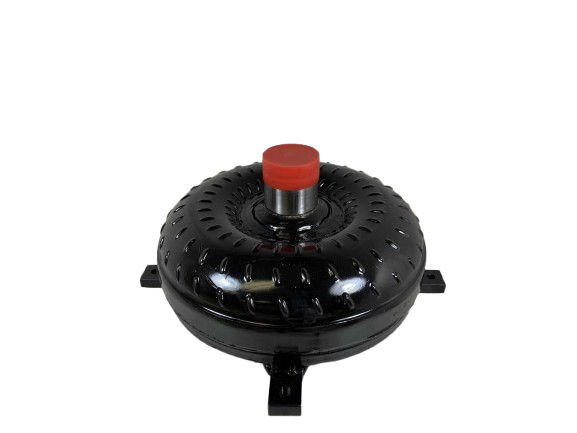

Ford C4 25744 Out Law Racing Series Super Lightweight Torque Converter

Elevate your performance with our precision-machined Out Law Racing Series Torque Converter. Designed specifically for serious racers, muscle car enthusiasts, and high-performance setups, this super lightweight converter offers superior driving characteristics and is engineered to handle extreme power applications, including nitrous boosts, turbochargers, and supercharging. Perfect for Choppy Cams and lightweight vehicles requiring maximum reliability.

This converter is built to withstand aggressive use while providing a smooth, matched performance profile. When combined with the correct setup, it offers exceptional power transfer and endurance on the drag strip or in competitive driving situations.

Product Specifications

• Part Number: 25744
• Application: Ford C4 Drive Train
• Series: Out Law Racing Series
• Stall Range: 3,500 – 4,200 RPM
• Core Size: 9.6 inch
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub Splines: 26
• Impeller Hub Material: Hardened Chrome Moley
• Torque Converter Type: Modified Extreme Duty Stator
• Crank Pilot Diameter: 1.375 inch
• Bolt Size: 3/8 X 16 TPI (Grade 8 hardware recommended)
• Construction: Precision CNC Machined, Fully Leak & Pressure Tested, Digitally Balanced

Key Construction Features

• High-Grade Pump & Turbine Fins are Furnace-Brazed or Welded for maximum durability.
• Torrington Style Incased Bearings ensure smooth, reliable operation under extreme load.
• Includes Anti-Balloon Plates for aggressive performance profiles.
• Whole Back Cover is Quenched and Hardened for enhanced longevity.

Performance Tips

• For the best results, use old-school type F transmission fluid.
• Always utilize an additional transmission cooler during high-performance runs.
• Secure all installation components using Blue Loctite.

Important Installation Notes

• All advertised stall ranges are dependent on a specific vehicle's setup and will vary based on your application.
• For definitive advice regarding stall ranges, please contact our experts at (888) 267-7464.
• We also offer "No Prep Racing Converters" for guaranteed application match.
