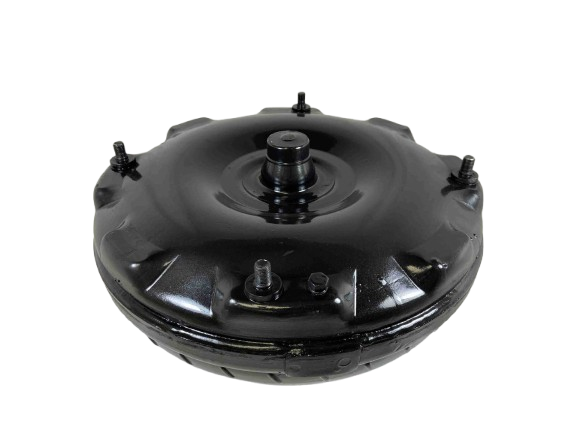

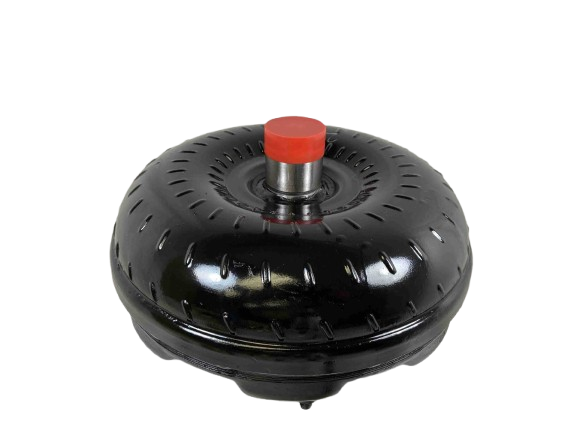

C4 26 Spline Night Stalker Series 200 RPM Over Stock Ford Towing Torque Converter Part Number 2514HD

Ford C4 Torque Converter - Night Stalker Series

Enhance your drivetrain performance with this precision-machined Ford C4 torque converter, built for robust driving and towing characteristics. Belonging to our acclaimed Night Stalker Series, this unit is manufactured in the USA and ready to handle your vehicle's power demands. Designed for durability and a perfect fit with the big bellhousing, this torque converter offers exceptional quality and reliability.

Technical Specifications

• Series: Night Stalker Series
• Part Number: 2514HD
• Stall Range: 200 - 300 RPM (Over Stock Setup)
• Torque Converter Core Diameter: 12 inches
• Bolt Circle: 11 7/16 inches
• Spline Type: 26 Spline Turbine Hub
• Impeller Hub: Hardened Chrome Moley Impeller Hub
• Stator Build: Modified Extreme Duty Stator
• Crank Pilot Diameter: 1.375 inch Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 hardware recommended)
• Additional Features: Torrington Style Incased Bearings, Anti-Balloon Plates (None), Digitally Balanced

Key Features & Construction

• Precision CNC machined components for superior fitment and function.
• Fins are securely attached via 4 corner Tac Welded or Furnace-Brazed construction.
• Includes leak and pressure testing along with rigorous quality inspections at every step.

Installation & Performance Notes

• For best operational results, use an old-school type F transmission fluid.
• We recommend installing a quality transmission cooler with this unit.
• Applying Blue Loctite during installation is advised for maximum security.

Important Considerations

• Advertised stall ranges are based on specific vehicle setups and may vary depending on your application.
• Contact us with detailed information regarding your vehicle setup for tailored advice (888) 267-7464.
• For high-performance applications (Intake/Heads/Headers/Exhaust/Cam/Gearing upgrades), consider upgrading to our Street Bandit Series.
• If using power adders (Nitrous, Turbocharger, Supercharger, or a Transmission Brake), we recommend the Outlaw Racing Series.
