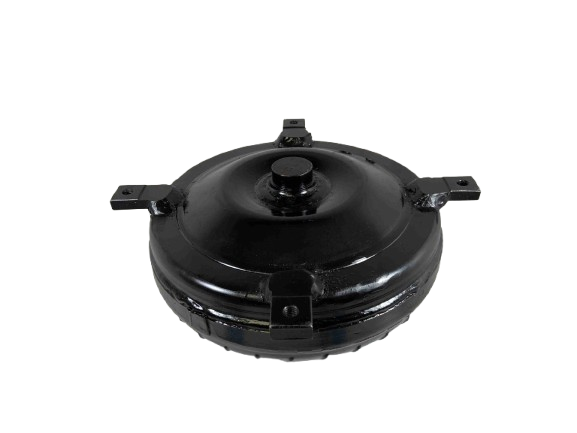

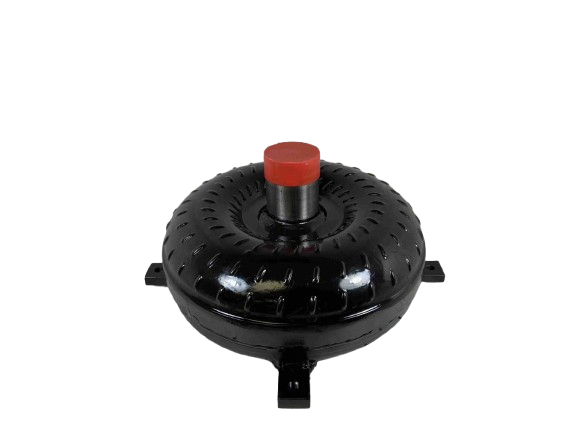

C4 24 Spline Street Bandit Series 42-5,000 RPM Ford Torque Converter Part Number 25045

Street Bandit Series Torque Converter - Ford C4 Application

Engineered for extreme performance and durability, this Street Bandit Series torque converter is precision-machined to handle the unique demands of your Ford C4 setup. Designed with a high stall range and robust internal components, it offers superior driving characteristics perfect for chopped cams or demanding lightweight applications. Built to a finished height of 5 7/8 inches, this converter guarantees a strong match for your big bellhousing and 164-tooth flywheel.

Every unit undergoes stringent quality inspections, including leak and pressure testing, ensuring optimal balance and reliable performance from the moment it's installed. Trust our family-run experts, building high-performance converters since 1970.

Technical Specifications

• Part Number: 25045
• Application Fitment: Ford C4 (Big Bellhousing application)
• Series/Model: Street Bandit Series
• Stall Range: 4,200 - 5,000 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 11 7/16 inches
• Turbine Hub: 24 Spline, Precision CNC Machined
• Impeller Hub: Hardened Chrome Moley, Tracks Welded/Furnace-Brazed Fins
• Crank Pilot: 1.375 inch
• Bearings: Torrington Style Incased Bearings
• Stator: Modified Extreme Duty
• Mounting Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Recommended)
• Design Features: Digitally Balanced, No Anti-Balloon Plates

Installation & Performance Notes

• Always use an additional transmission cooler for maximum thermal management.
• Use Old School Type F Transmission Fluid for optimal results with this application.
• Apply Blue Loctite when securing components to ensure lasting integrity.

Important Considerations

• All advertised stall ranges are based on a specific vehicle setup and may vary depending on your unique drivetrain configuration.
• Contact us for detailed compatibility information or to inquire about our No Prep Racing Converter options.
