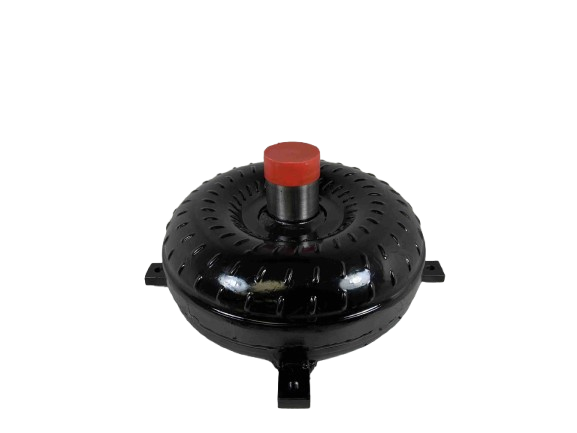

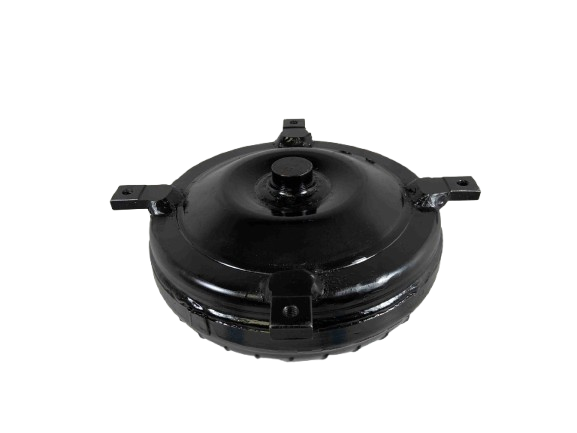

C4 24 Spline Street Bandit Series 35-4,200 RPM Ford Torque Converter Part Number 25044

Ford C4 Street Bandit Series Torque Converter - 3500-4200 RPM Stall Range

Engineered for high-performance applications, this precision-machined torque converter is specifically designed for the Ford C4 chassis. Featuring a robust 9.6-inch core and built to a maximum height of 5 7/8 inches, this unit provides excellent driving characteristics and exceptional strength for your application. Ideal for Choppy Cams and lightweight performance builds.

Specifications

• Transmission Type: Ford C4
• Series: Street Bandit Series
• Part Number: 25044
• Stall Range: 3,500 - 4,200 RPM
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: 11 7/16 inches
• Impeller Hub: Hardened Chrome Moly, Precision CNC Machined, 24 Spline Turbine Hub
• Crank Pilot: 1.375 inch Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Required)
• Construction: Torrington Style Encased Bearings, Modified Extreme Duty Stator
• Plate Stack: No Anti-Balloon Plates
• Mounting Detail: Fins are 4 corner Tac Welded or Furnace-Brazed

Key Features

• Built to a maximum height of 5 7/8 inches for Big Bellhousing applications.
• Designed to work with a 164 Tooth Flywheel.
• Digitally balanced and subject to Leak & Pressure Testing and Quality Inspections at Every Step.

Installation Notes

• All advertised stall ranges are based on a specific vehicle's setup and will vary depending on your application.
• Always use an additional transmission cooler for optimal performance and heat management.

Performance Recommendations

• For best operational results, use an Old School Type F Transmission Fluid.
• Apply Blue Loctite when securing components.

Building High Performance & Racing Converters Since 1970! Veteran Owned and Family Run. Contact us for information on our No Prep Racing Converters.
