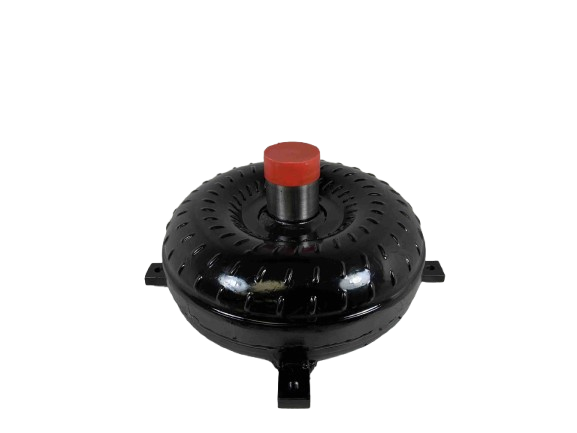

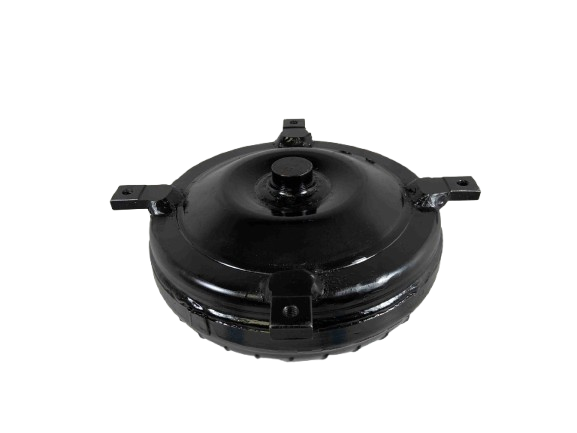

C4 24 Spline Street Bandit Series 32-3,500 RPM Ford Torque Converter Part Number 25033

Street Bandit Series Torque Converter - Ford C4 Application (Part #25033)

Engineered for high-performance driving characteristics, this Super Lightweight Torque Converter is the ideal match for your Ford C4 application. Precision CNC machined to industry standards, this unit provides reliable power transfer and is built to withstand the rigors of performance builds while maintaining strict dimensional accuracy for a perfect fit.

This torque converter features Torrington Style Incased Bearings and a Modified Extreme Duty Stator, ensuring durability and optimal performance when matched with the correct drivetrain components.

Key Specifications

• Application: Ford C4 / Big Bellhousing Compatibility
• Series: Street Bandit Series
• Part Number: 25033
• Max Height: 5 7/8 Inches (Built to Tall)
• Core Diameter: 9.6 Inch
• Bolt Circle: 11 7/16 Inches
• Turbine Hub: 24 Spline
• Crank Pilot Size: 1.375 Inch
• Drain Bolt Size: 3/8 X 16 TPI (Grade 8 Steel Required)
• Construction: Hardened Chrome Moley Impeller Hub, Modified Extreme Duty Stator
• Manufacturing: Precision CNC Machined, Digitally Balanced, Leak & Pressure Tested

Performance Details

• Stall Range: 3,200 - 3,500 RPM
• Fitment Note: Designed specifically for use with a 164 Tooth Flywheel.
• Fluid Compatibility: Built to perform optimally with Old School Type F Transmission Fluid.

Installation & Care

• Always utilize an additional Transmission Cooler for extended component life.
• Use quality products like Blue Loctite during assembly and installation.

Important Information

• Stall performance figures are based on specific vehicle setups and may vary depending on your application. Please contact us with detailed information regarding your build for accurate advice.
