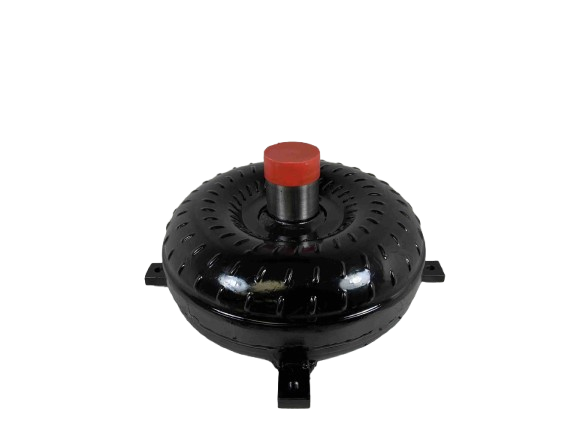

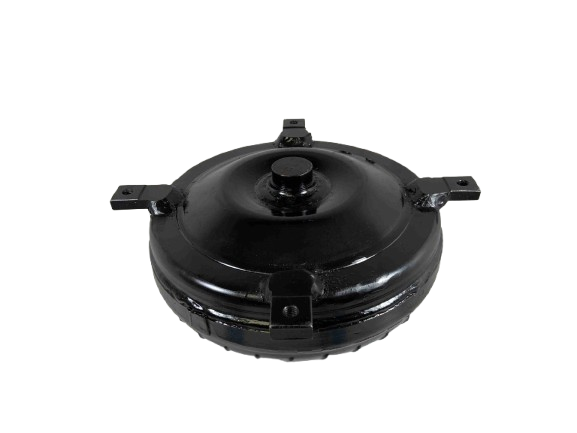

C4 24 Spline Street Bandit Series 28-3,200 RPM Ford Torque Converter Part Number 25043

Street Bandit Series Torque Converter | Ford C4 - Part No. 25043

Engineered for the discerning performance enthusiast, this Street Bandit Series torque converter is precision-machined to meet extreme duty demands while maintaining excellent driving characteristics. Specifically designed for the Ford C4 application, this unit offers a superior blend of durability and responsiveness for your chopped cams or lightweight build.

Key Specifications

• Application: Ford C4
• Series: Street Bandit Series
• Part Number: 25043
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch
• Stator Height: 5 7/8 Inches (Built to Max Height)
• Bolt Circle: 11 7/16 inches

Construction & Performance Details

• Precision CNC Machined components for optimal fluid dynamics.
• Features a Hardened Chrome Moley Impeller Hub and Modified Extreme Duty Stator.
• Equipped with Torrington Style Incased Bearings for reliable operation.
• 24 Spline Turbine Hub construction.
• 1.375 inch Crank Pilot accommodates 3/8 X 16 TPI Grade 8 bolts.
• Built with rings that are 4 corner Tac Welded or Furnace-Brazed.
• Tested thoroughly for Leak and Pressure compliance, and Digitally Balanced.

Setup Guidance

• Optimal performance is achieved using Old School Type F Transmission Fluid.
• Always complement installation with a dedicated transmission cooler.
• Recommended use of Blue Loctite during assembly.

Important Installation Notes

• Stall range values provided are based on a specific vehicle setup and will vary depending on your application.
• Contact our technical support for detailed installation advice regarding your specific vehicle setup.

Building high-performance and racing converters since 1970. Veteran owned and family run. Ask about our No Prep Racing Converters for your next build!
