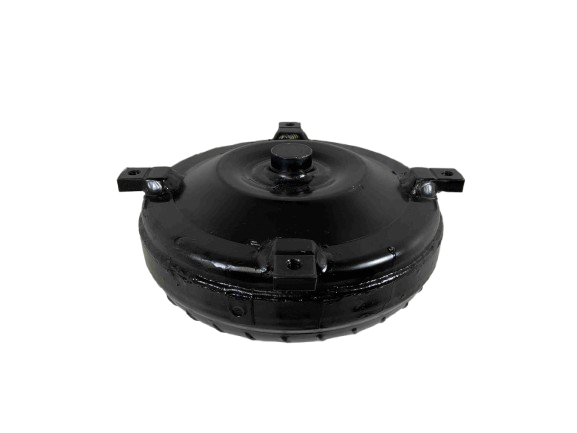

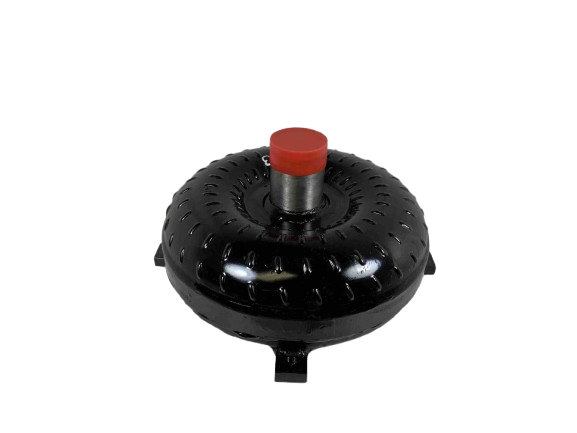

C4 24 Spline Street Bandit 35-4,200 RPM Ford Torque Converter Part Number 25014

Ford C4 157 Tooth FlexPlate Torque Converter - Street Bandit Series

Engineered for reliable performance and demanding driving conditions, this Super Lightweight Torque Converter is the perfect match for your Ford C4 setup. Featuring a precision-machined build and Torrington style bearings, this converter ensures smooth shifting while maintaining excellent power transfer. Built specifically for vehicles running a 157-tooth flywheel, this unit combines durability with optimal driving characteristics.

Key Technical Specifications

• Series: Street Bandit Series
• Transmission Fitment: Ford C4 (For 157 Tooth FlexPlate)
• Stall Range: 3,500 - 4,200 RPM
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: 10.5 inches
• Turbine Hub Splines: 24 Spline
• Crank Pilot Diameter: 1.375 inches
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Required)
• Design Detail: Modified Extreme Duty Stator, Hardened Chrome Moley Impeller Hub

Construction & Quality Assurance

This high-performance converter is meticulously crafted to withstand the rigors of aggressive driving. It features premium construction components, including a precision CNC-machined billet body and leak/pressure testing to guarantee maximum longevity.

• Precision CNC Machined billet body and fin attachments (4 corner Tac Welded or Furnace-Brazed).
• Torrington Style Incased Bearings for superior durability.
• Dedicated to Choppy Cams and Lightweight applications requiring robust performance.
• Digitally Balanced and undergoes Quality Inspections at Every Step.

Installation & Performance Guide

• Use Old School type F transmission fluid for optimal results.
• Always incorporate a Transmission Cooler when operating this unit.
• Apply Blue Loctite to threads for maximum security and leak prevention.

Important Notes

• All advertised stall ranges are based on a specific vehicle setup and may vary depending on your installation. Please contact us for personalized guidance.
• For specialized high-performance or racing builds, inquire about our No Prep Racing Converters.

We are proud to offer building high-performance and racing converters since 1970. Veteran Owned and Family Run.
