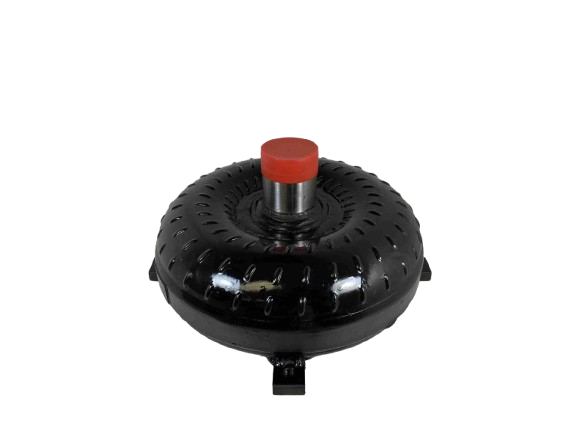

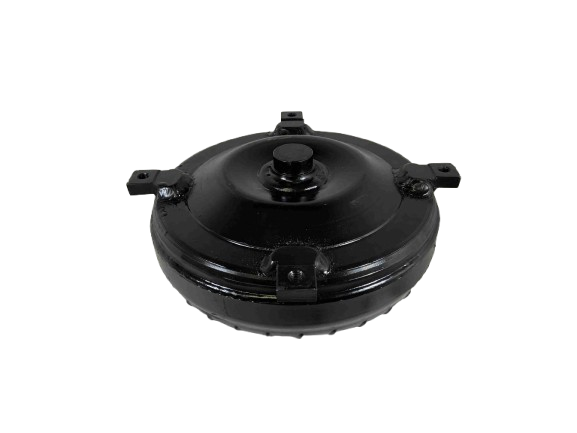

C4 24 Spline Out Law 32-3,500 RPM Ford Racing Torque Converter Part Number 25623

Pro-Grade Out Law Racing Series Torque Converter - Ford C4 Application

Elevate your drivetrain performance with this precision-machined, heavy-duty torque converter. Engineered specifically for Choppy Cam setups and lightweight performance builds, this unit is built to handle the extreme demands of racing applications. Featuring a 157-Tooth FlexPlate and robust Torrington-style bearings, it provides superior durability and driving characteristics for your high-horsepower application.

Key Technical Specifications

• Application Series: Out Law Racing Series
• Vehicle Fitment: Ford C4 / Small Bellhousing
• Stall Range: 3,200 – 3,500 RPM
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: 10.5 inches
• Impeller: Hardened Chrome Moley Hub with 24 Spline Turbine Hub
• Crank Pilot Diameter: 1.375 inches (CNC Machined)
• Bolt Size: 3/8 X 16 TPI (Grade 8 Bolts Required)
• Construction: Precision CNC Machined, Whole Back Cover Quenched & Hardened
• Durability Features: Anti-Balloon Plates (CNC Machined), Torrington Style Incased Bearings

Advanced Construction & Quality Assurance

• Impeller Fins: All Pump and Turbine fins are securely Welded or Furnace-Brazed.
• Stator: Modified Extreme Duty Stator provides maximum durability and heat management.
• Testing Protocol: Digitally Balanced, Leak & Pressure Tested upon completion.
• Fitment Note: Designed for optimal performance with setups running Nitrous Oxide, Turbochargers, or Superchargers.

Installation Advice

• For optimal shifts, we recommend using an Old School Type F Transmission Fluid.
• Always utilize a dedicated Transmission Cooler to maintain operational fluid temperatures.
• Secure all hardware using Blue Loctite for maximum reliability in high-vibration environments.

Important Setup Information

• All stated stall ranges are based on a specific vehicle build setup and may vary significantly depending on your installation conditions.
• Please consult our experts at (888) 267-7464 for personalized application advice or inquire about our No Prep Racing options.

Proudly MADE IN THE USA. Building high-performance and racing solutions since 1970.
