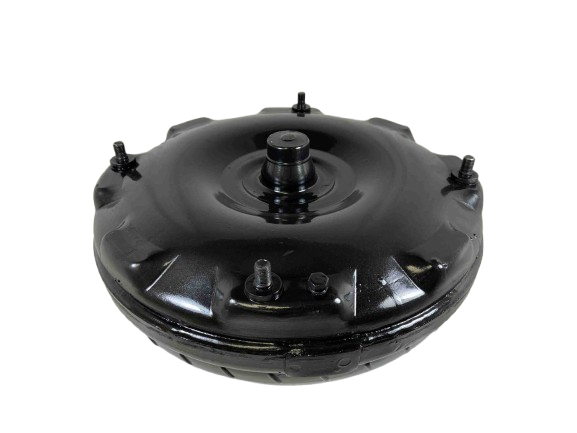

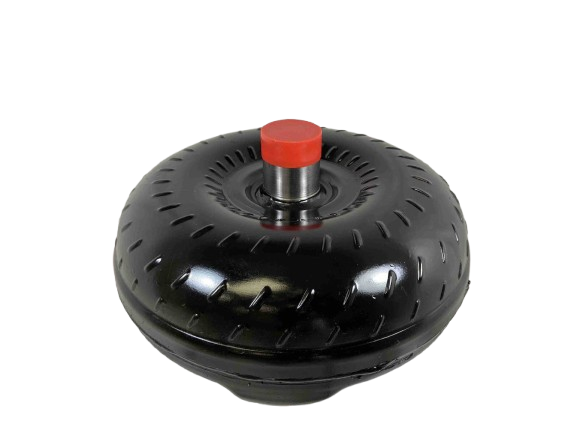

C4 24 Spline Night Stalker Series 22-2,800 RPM Ford Torque Converter Part Number 25042

Night Stalker Series Torque Converter – Ford C4 Application (Part #25042)

Elevate your drivetrain with our precision-engineered Night Stalker Series Torque Converter. Designed specifically for the Ford C4 application, this conversion unit provides excellent driving characteristics and reliable performance, making it the perfect upgrade for performance builds. Proudly Made in the USA, this high-quality torque converter is built to withstand extreme duty cycles while maintaining meticulous dimensional accuracy.

This torque converter is a couple of steps over stock, providing superior performance potential while maintaining reliable operational characteristics. Achieve your desired power transfer with the advertised stall range, perfectly matched to serious driving applications.

Key Product Specifications

• Application Compatibility: Ford C4
• Product Series: Night Stalker Series
• Part Number: 25042
• Stall Range: 2,200 - 2,800 RPM
• Core Diameter: 12 Inch
• Torque Converter Type: Modified Extreme Duty Stator, Hardened Chrome Moley Impeller Hub
• Turbine Specs: 24 Spline Turbine Hub, Precision CNC Machined
• Crank Pilot Diameter: 1.375 inch, Precision CNC Machined
• Bolt Circle: 11 7/16 inches
• Construction Height: Built to 5 7/8 inch Tall (Big Bellhousing Fitment)
• Fasteners: 3/8 X 24 TPI Nut (Grade 8 Hardware Required)
• Bearings: Torrington Style Incased Bearings
• Plate Details: No Anti-Balloon Plates, Fins are 4 Corner Tac Welded or Furnace-Brazed

Quality Assurance & Performance

Every unit undergoes rigorous testing to ensure maximum performance and longevity. This torque converter is Digitally Balanced, Leak & Pressure Tested, and benefits from Quality Inspections at Every Step of the manufacturing process.

Installation & Performance Notes

• Use Old School Type F transmission fluid for optimal results.
• Always utilize an additional Transmission Cooler in your setup.
• Blue Loctite is recommended for assembly security.

Important Build & Ordering Information

• Stall range performance is dependent on the specific vehicle setup and may vary. Please contact us for detailed consultation regarding your application.
• If you have upgraded key components (Intake, Heads, Headers, Exhaust, Cam, or Gearing), we recommend considering a "Street Bandit Series" upgrade.
• For extreme power adders such as Nitrous Oxide (NOS), Turbochargers, Superchargers, or Trans Brake systems, we advise upgrading to our "Out Law Racing Series" torque converter.

Building High Performance & Racing Converters Since 1970! Veteran Owned and Family Run. Contact us at (888) 267-7464 for expert advice on your build.
