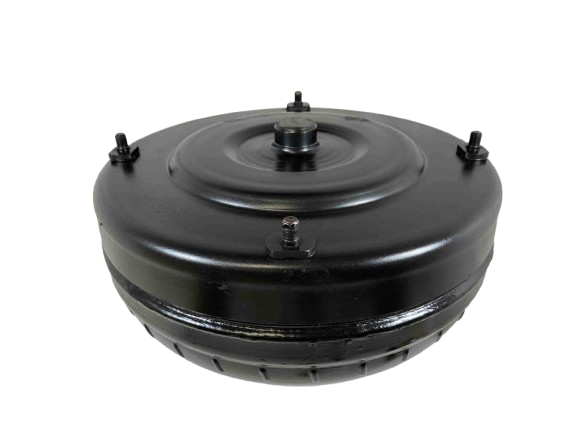

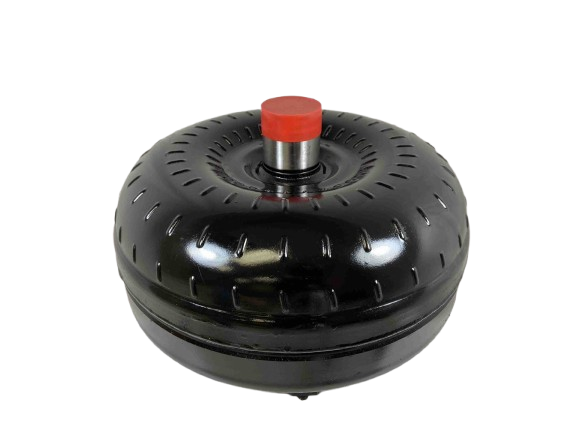

AODE Night Stalker 200 RPM Over Stock Lock Up Ford Towing Torque Converter Part Number 2650HD

Night Stalker Series Torque Converter - Heavy Duty AFTERMARKET Build for Ford AODE Transmissions

Engineered for serious performance applications, this Night Stalker Series torque converter is built to withstand extreme duty cycles while maintaining optimal shifting characteristics. Specifically designed for transmissions requiring a 2-step input shaft, this converter enhances power delivery and ensures reliability in high-performance builds. Though it features a factory 12" core, buyers must verify the bolt pattern dimensions against their application.

Warning: While this unit is a high-quality, heavy-duty assembly, care must be taken when matching dimensions. Please note that this converter utilizes a Bolt Circle of 11 3/8 inches, making it distinct from converters designed for smaller diameter applications (such as the 4R70W).

Key Product Specifications

• Series: Night Stalker Series
• Application Fitment: Factory 11.5" Core, Bolt Circle 11 3/8 inches, 31 Spline Input Shaft
• Stall Range: 200 - 300+ Over Stock RPM Stall
• Impeller Construction: Hardened Chrome Moly Impeller Hub with Modified Heavy Duty Stator
• Bearings: Torrington Style Incased Bearings for longevity
• Lockup Clutch: Over Sized Extreme Duty Lock Up
• Crank Pilot: Factory 1.375 inch Bore
• Bolt Size: 3/8 X 24 TPI Nuts
• Build Quality: Digitally Balanced, Leak & Pressure Tested, quality inspections at every step
• Construction Detail: 4 Corner Tac Welded Fins or Furnace Brazed construction

Performance and Installation Notes

• All advertised stall ranges are based on a specific vehicle's setup and will vary depending on your application. Please contact our technical support team for detailed consultation.
• For optimal performance and durability, we strongly recommend matching the fluid type to the original factory specifications.
• Always utilize a quality transmission cooler when running performance applications like this build to manage heat and maintain efficiency.
• Use high-quality thread locker (e.g., Blue Loctite) on all fasteners to ensure maximum holding power and prevent vibration loosening.

Technical Details

• Veteran Owned and Family Run since 1970.
• Consider upgrading to our "Street Bandit Series" if you have performance upgrades to your Intake, Heads, Headers, Exhaust, Camshaft, or Gearing.
• For extreme power adders (NOS, Turbocharger, Supercharger), we recommend the "Outlaw Series" torque converter.

For expert assistance regarding sizing and application suitability, please visit our parts chart or call us at (888) 267-7464. We are dedicated to building high performance and racing converters since 1970.
